Checking Drive Belts

WARNING: This page is about a different variant/trim than selected.

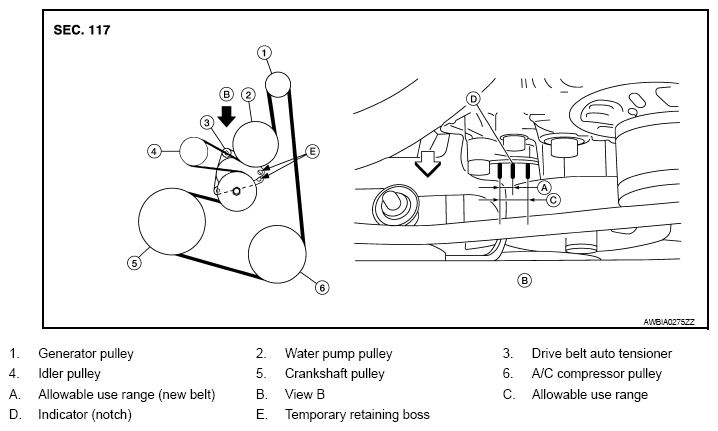

Fig 1: Drive Belt Routing Diagram

G07137417

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Inspect the drive belt only when the engine is stopped.

Make sure that the indicator (notch on fixed side) of drive belt auto-tensioner is within the possible use range.
NOTE:
- Check the drive belt auto-tensioner indicator (notch) when the engine is cold.
- When the new drive belt is installed, the range of possible use should be as shown in the figure.
- Visually check entire belt for wear, damage or cracks.
- If the indicator is out of allowable use range or belt is damaged, replace the drive belt.
