Disassembly and Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

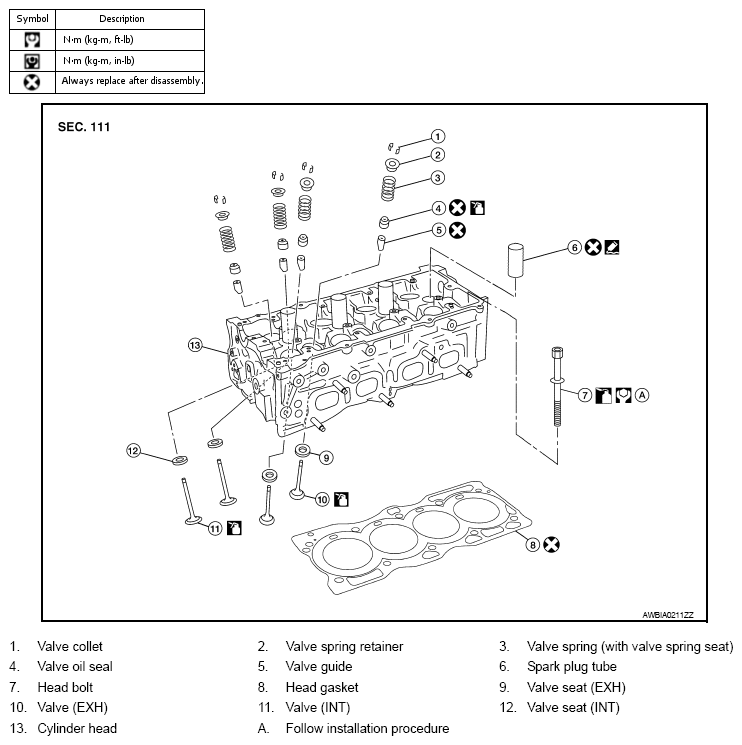

Fig 1: Exploded View Of Cylinder Head
G07137536Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • When installing camshafts, chain tensioners, oil seals or other sliding parts, lubricate contacting surfaces with new engine oil.
  • Apply new engine oil to threads and seat surfaces when installing the cylinder head, camshaft sprocket, crankshaft pulley and camshaft bracket.
  • Attach tags to valve lifters so all parts are assembled in their original position.
