Section 3 (Engine Mechanical (Qr25DE))
>>
Service Information
>>
Camshaft
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

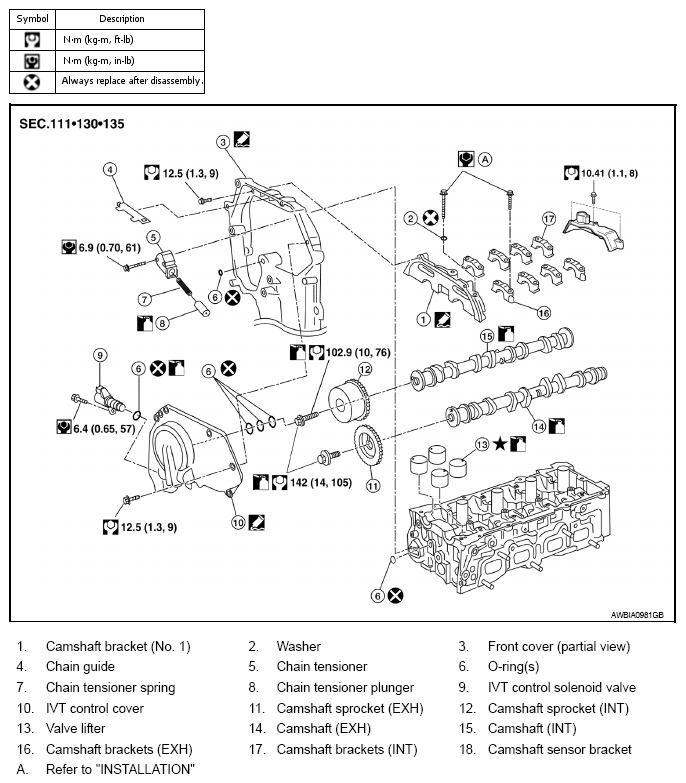

Fig 1: Exploded View Of Camshafts With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
