Disassembly and Assembly: Components

Case and Housing Components

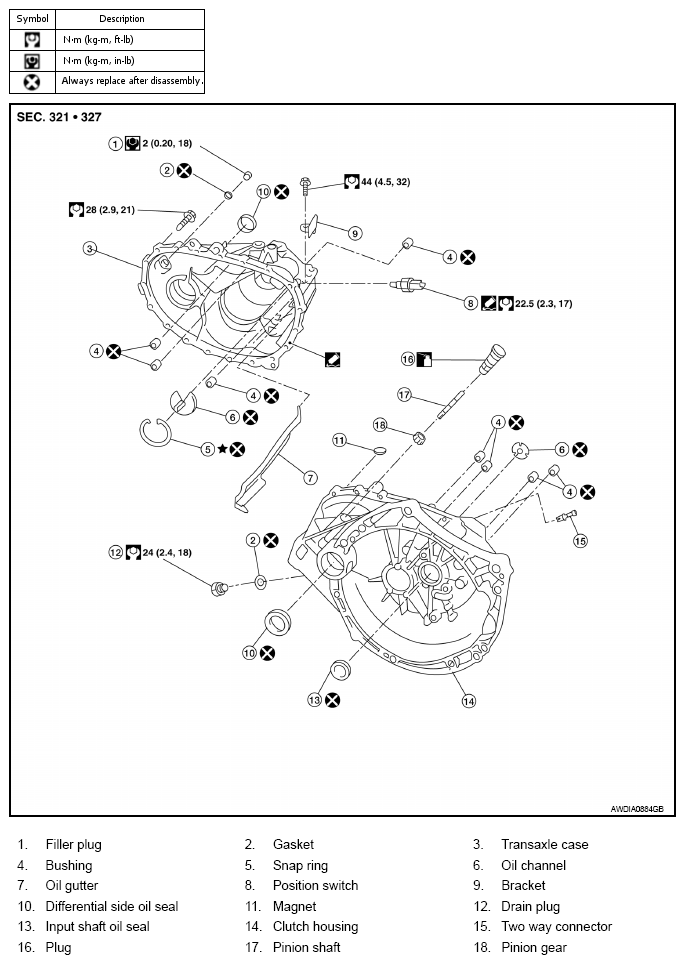

Fig 1: Exploded View Of Case And Housing Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Gear Components

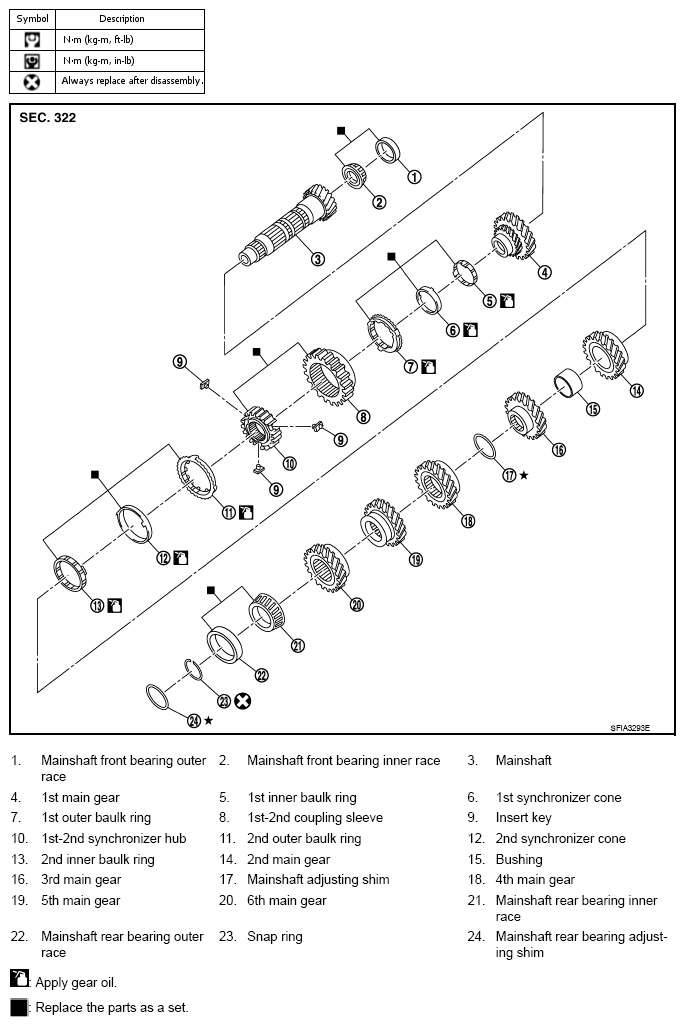

Fig 2: Exploded View Of Gear Components With Torque Specifications (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

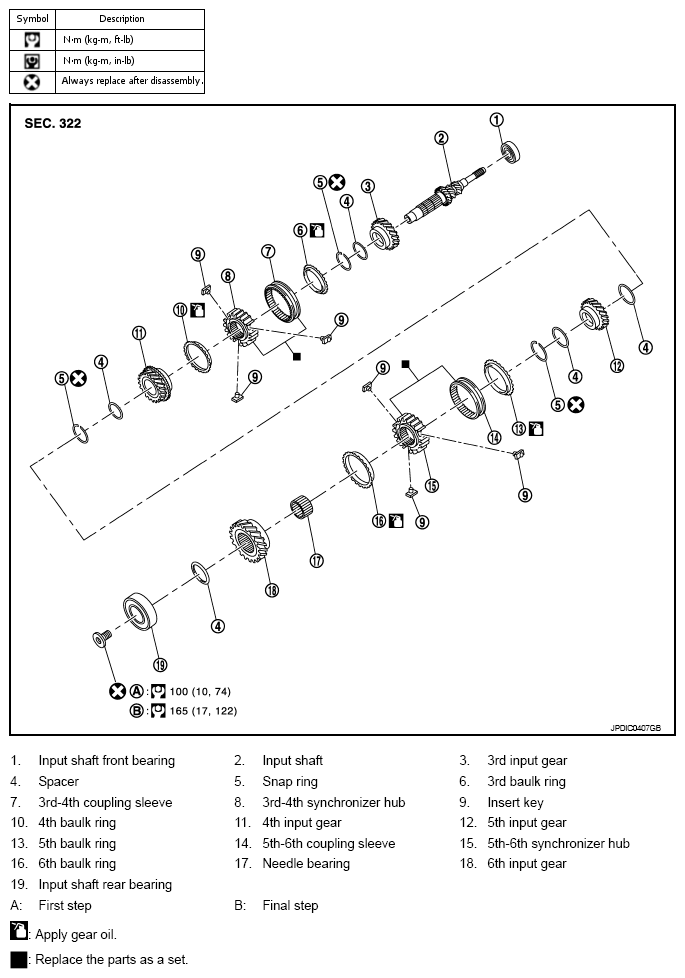

Fig 3: Exploded View Of Gear Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Exploded View Of Gear Components Bolts With Torque Specifications (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Shift Control Components

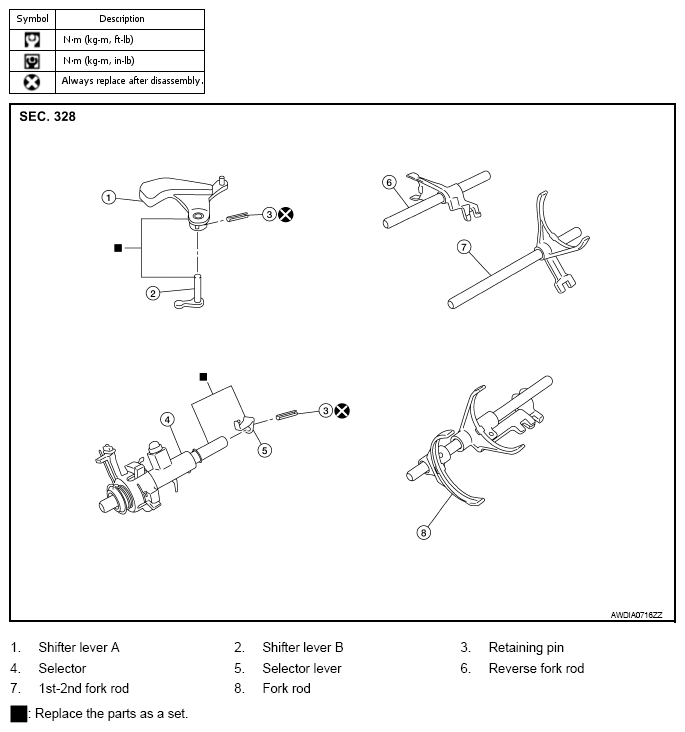

Fig 5: Exploded View Of Shift Control Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Final Drive Components

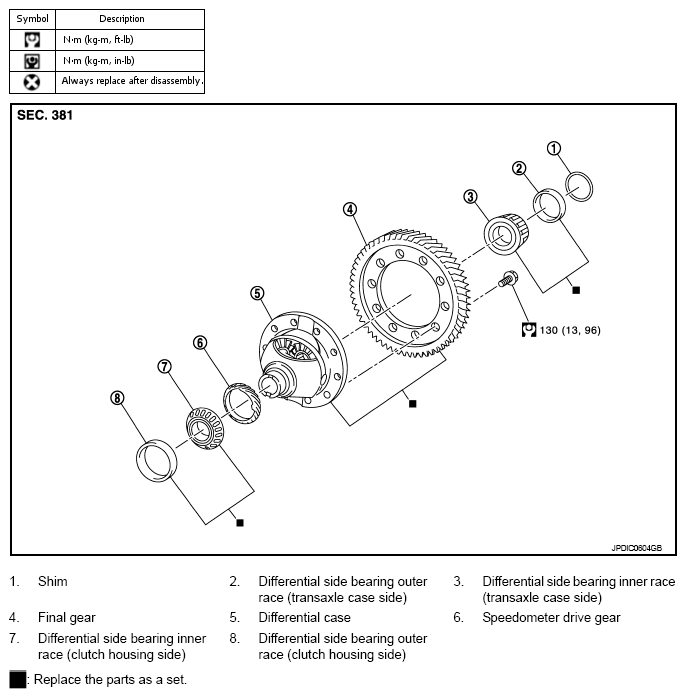

Fig 6: Exploded View Of Final Drive Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
