Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove reverse output gear (1).

Fig 1: Removing Reverse Output Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

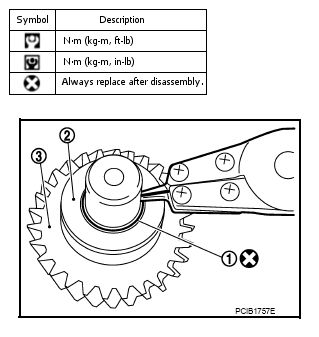

Remove snap ring (1).

Fig 2: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove reverse baulk ring (1) and return spring (2).

Fig 3: Removing Reverse Baulk Ring And Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

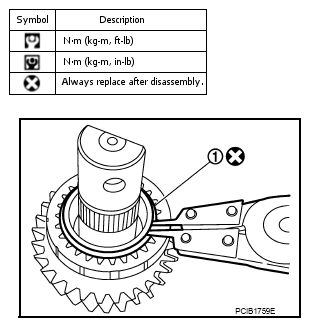

Remove snap ring (1), lock washer (2), reverse input gear (3) and washer.

Fig 4: Removing Snap Ring, Lock Washer, Reverse Input Gear And Washer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearings (1) from reverse idler shaft.
Remove washer from reverse idler shaft.

Fig 5: Removing Needle Bearings From Reverse Idler Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
