Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove differential side bearing inner race (clutch housing side) (1) according to the following procedures.
    1. Set a suitable tool to differential side bearing inner race (clutch housing side).
    2. Remove differential side bearing inner race (clutch housing side), using Tool (A).

      Tool number : ST33061000 (J-8107-2)

      Fig 1: Removing Differential Side Bearing Inner Race (Clutch Housing Side)
      G04926480Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove speedometer drive gear.
  3. Remove final gear bolts, and then remove final gear (1).

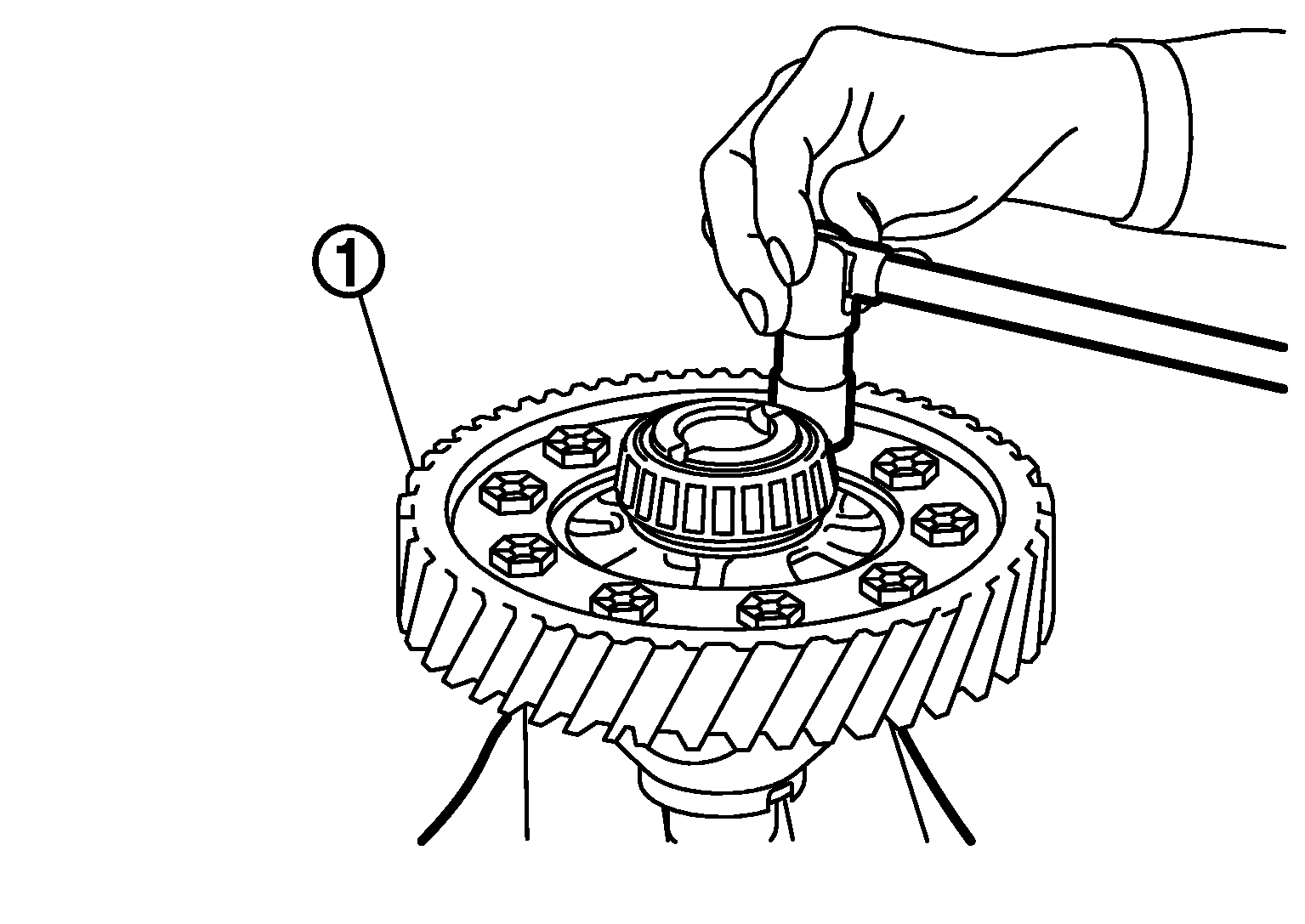

    Fig 2: Removing Final Gear Bolts
    G05914998Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove differential side bearing inner race (transaxle case side) (1) according to the following procedures.
    1. Set a suitable tool to differential side bearing inner race (transaxle case side).
    2. Remove differential side bearing inner race (transaxle case side), using a suitable tool (A).

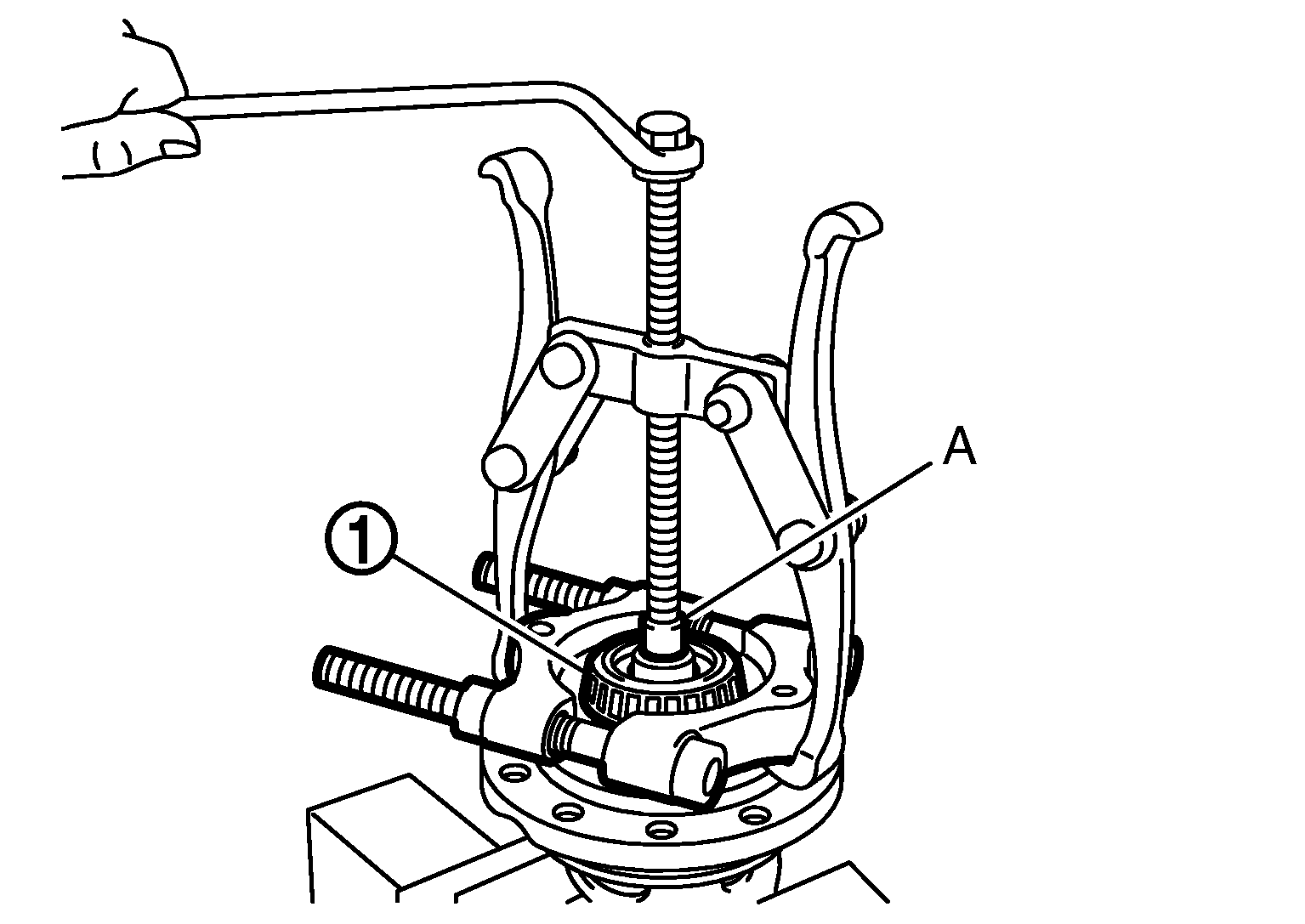

      Fig 3: Removing Differential Side Bearing Inner Race (Transaxle Case Side) Using Suitable Tool
      G05914999Courtesy of NISSAN MOTOR CO., U.S.A.
