Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install final gear, and then tighten final gear bolts to the specified torque. Refer to "DISASSEMBLY AND ASSEMBLY ".
    CAUTION: Replace final gear and differential case as a set.
  2. Install speedometer drive gear.
  3. Install differential side bearing inner race (clutch housing side), using a suitable tool (A).
    CAUTION: Replace differential side bearing inner race (clutch housing side) and differential side bearing outer race (clutch housing side) as a set.

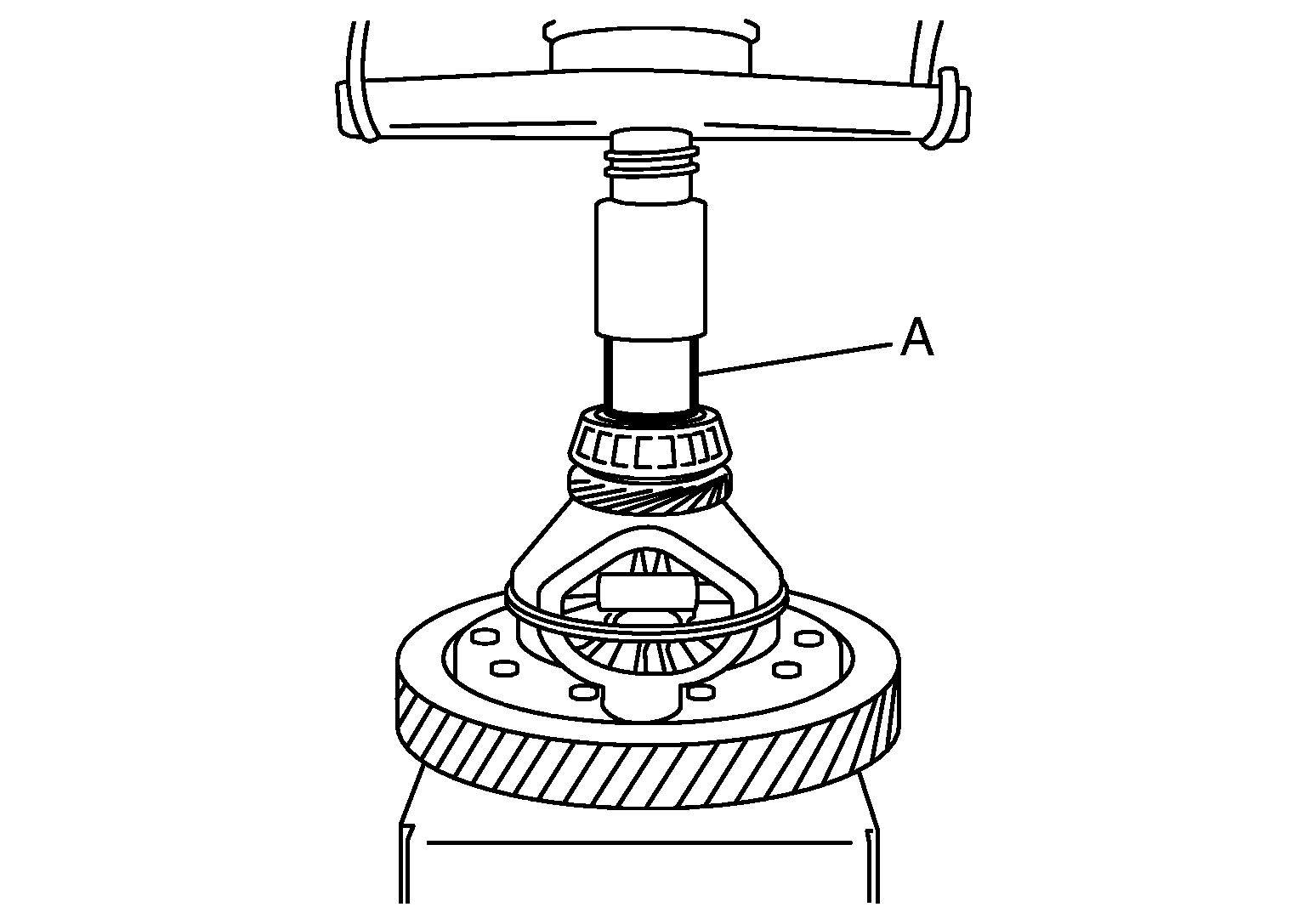

    Fig 1: Installing Differential Side Bearing Inner Race (Clutch Housing Side) Using Suitable Tool
    G05915000Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install differential side bearing inner race (transaxle case side), using a suitable tool (A).
    CAUTION: Replace differential side bearing inner race (transaxle case side) and differential side bearing outer race (transaxle case side) as a set.

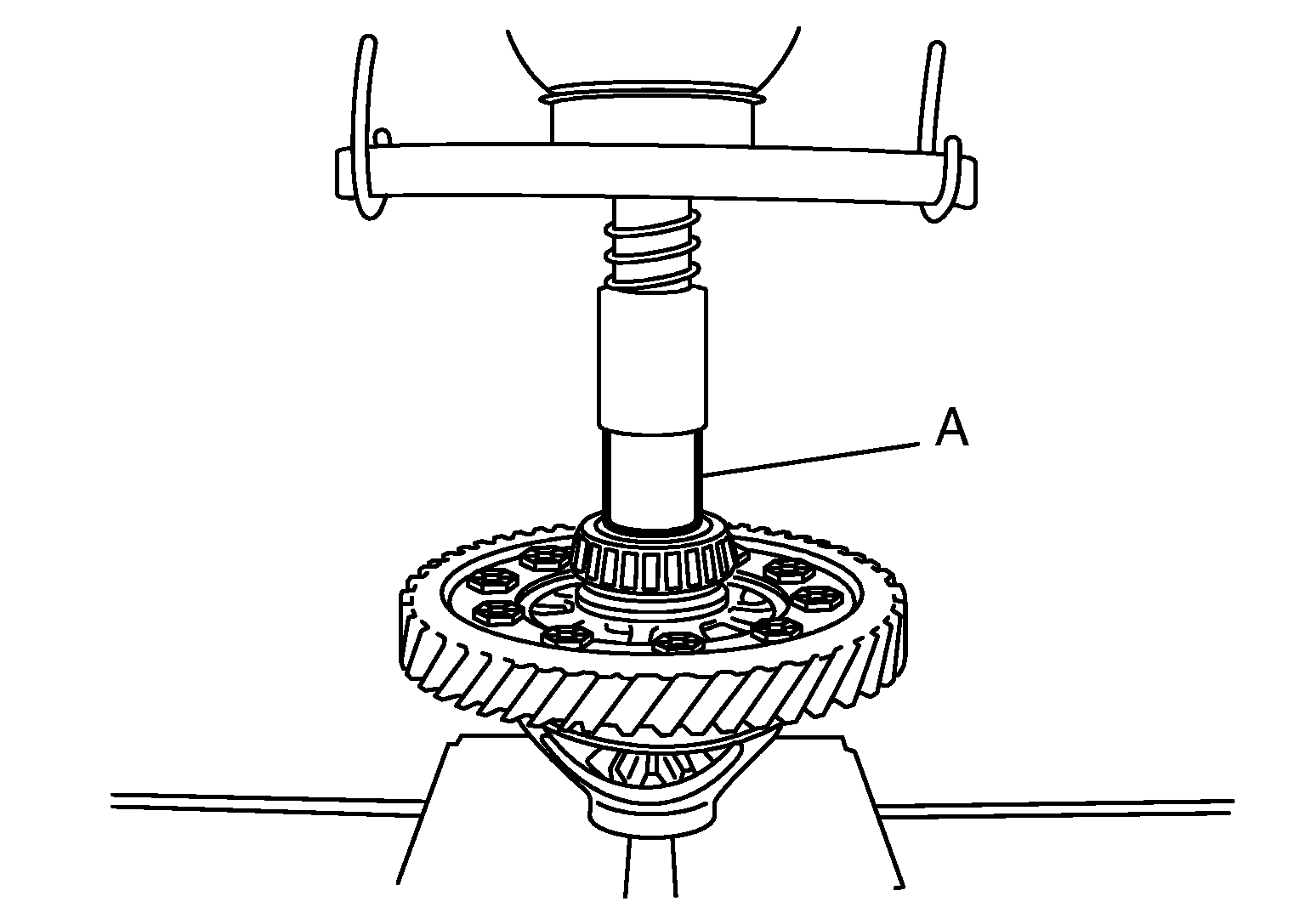

    Fig 2: Installing Differential Side Bearing Inner Race (Transaxle Case Side) Using Suitable Tool
    G05915001Courtesy of NISSAN MOTOR CO., U.S.A.
