Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove battery. Refer to "REMOVAL AND INSTALLATION (MR20DE BATTERY) ".
  2. Remove air cleaner and air duct. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove shift cable from shift lever as shown in the figure.

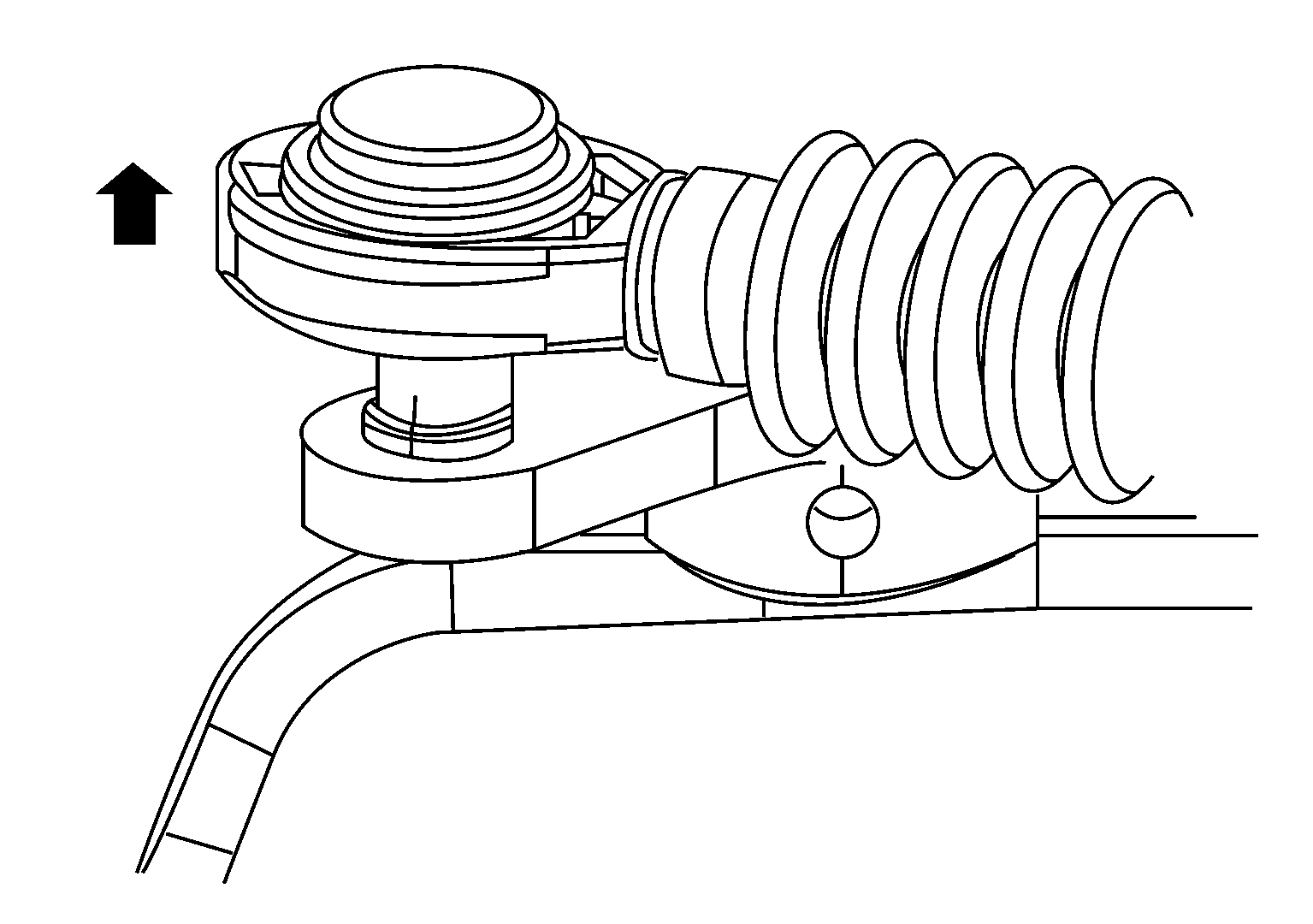

    Fig 1: Removing Shift Cable From Shift Lever
    G04926378Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove select cable from select lever as shown in the figure.

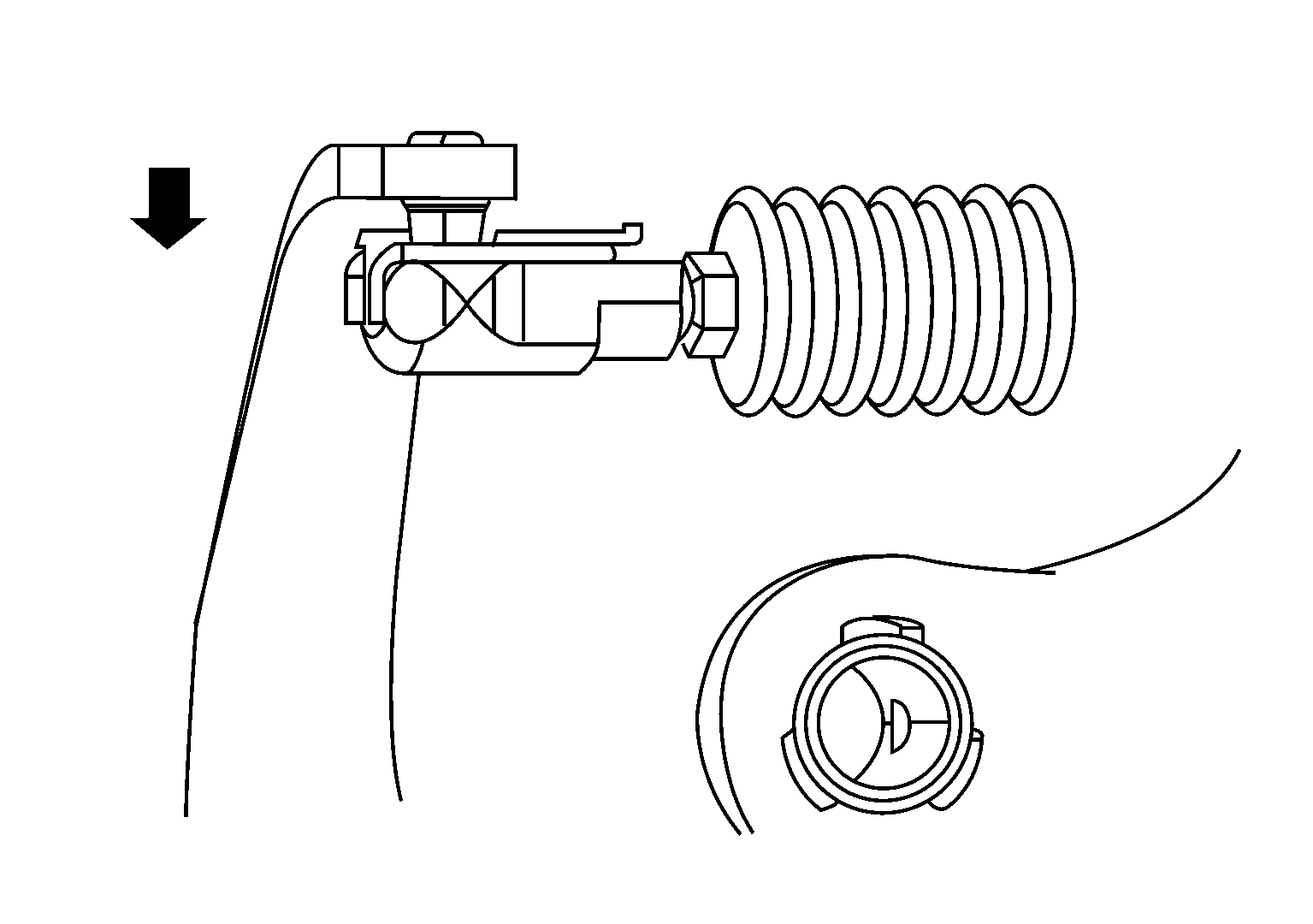

    Fig 2: Removing Select Cable From Select Lever
    G04926379Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Move shift selector to neutral position.
  6. Remove shift selector handle.
  7. Remove center console assembly. Refer to "REMOVAL AND INSTALLATION ".
  8. Remove shift selector assembly nuts.
  9. Remove exhaust front tube, center muffler and heat shield. Refer to "REMOVAL AND INSTALLATION ".
  10. Remove cable support bracket.
  11. Remove select cable and shift cable from cable bracket.
  12. Remove shift selector assembly from the vehicle.
