Component of Shift Selector and Cable

WARNING: This page is about a different variant/trim than selected.

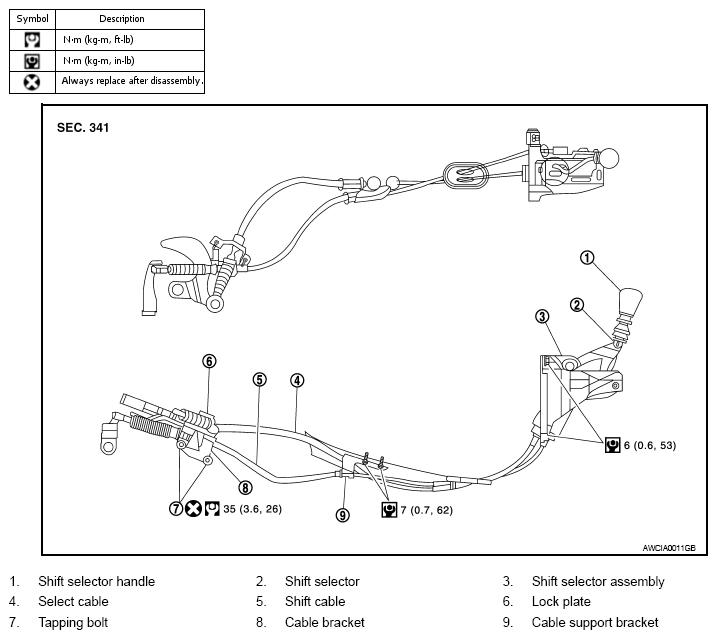

Fig 1: Exploded View Of Control Linkage Components With Torque Specifications
G07138483Courtesy of NISSAN MOTOR CO., U.S.A.
