Removal and Installation: Components

WARNING: This page is about a different variant/trim than selected.

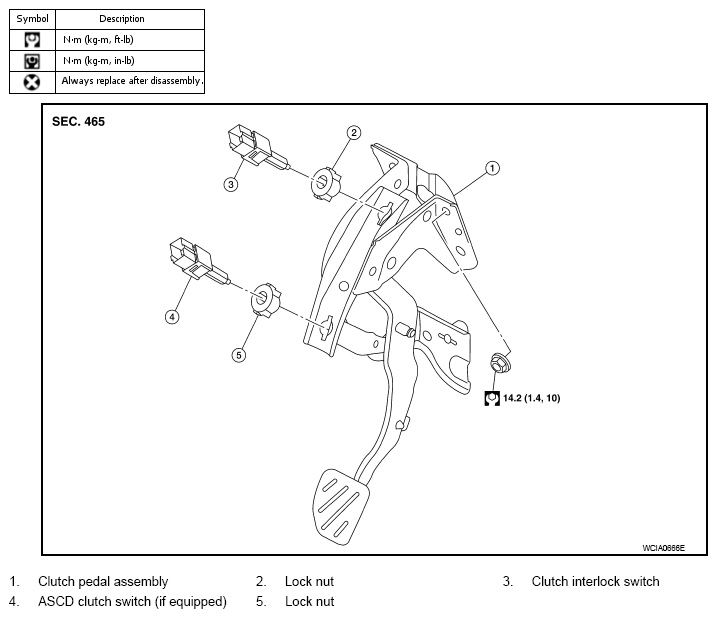

Fig 1: Exploded View Of Clutch Pedal Assembly, ASCD Clutch Switch, Clutch Interlock Switch & Lock Nut With Torque Specifications
G07138430Courtesy of NISSAN MOTOR CO., U.S.A.
