Inspection After Removal

Clutch Disc

• Measure runout relative to clutch disc center spline. If it is outside the specification, replace clutch disc.

  Runout limit/diameter of the area to be measured :  Refer to "CLUTCH DISC ".

• Measure backlash to clutch disc spline and main drive gear spline at the circumference of clutch disc. If it is outside the specification, replace clutch disc.

  Maximum allowable spline backlash (at outer edge of disc) :  Refer to "CLUTCH DISC ".

  Fig 1: Checking Clutch Disc For Backlash Of Spline And Runout Of Facing

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Measure the depth "A" to clutch disc facing rivet heads, using a calipers. If it exceeds the allowable wear limit, replace clutch disc.

  Facing wear limit (depth to the rivet head) "A" :  Refer to "CLUTCH DISC ".

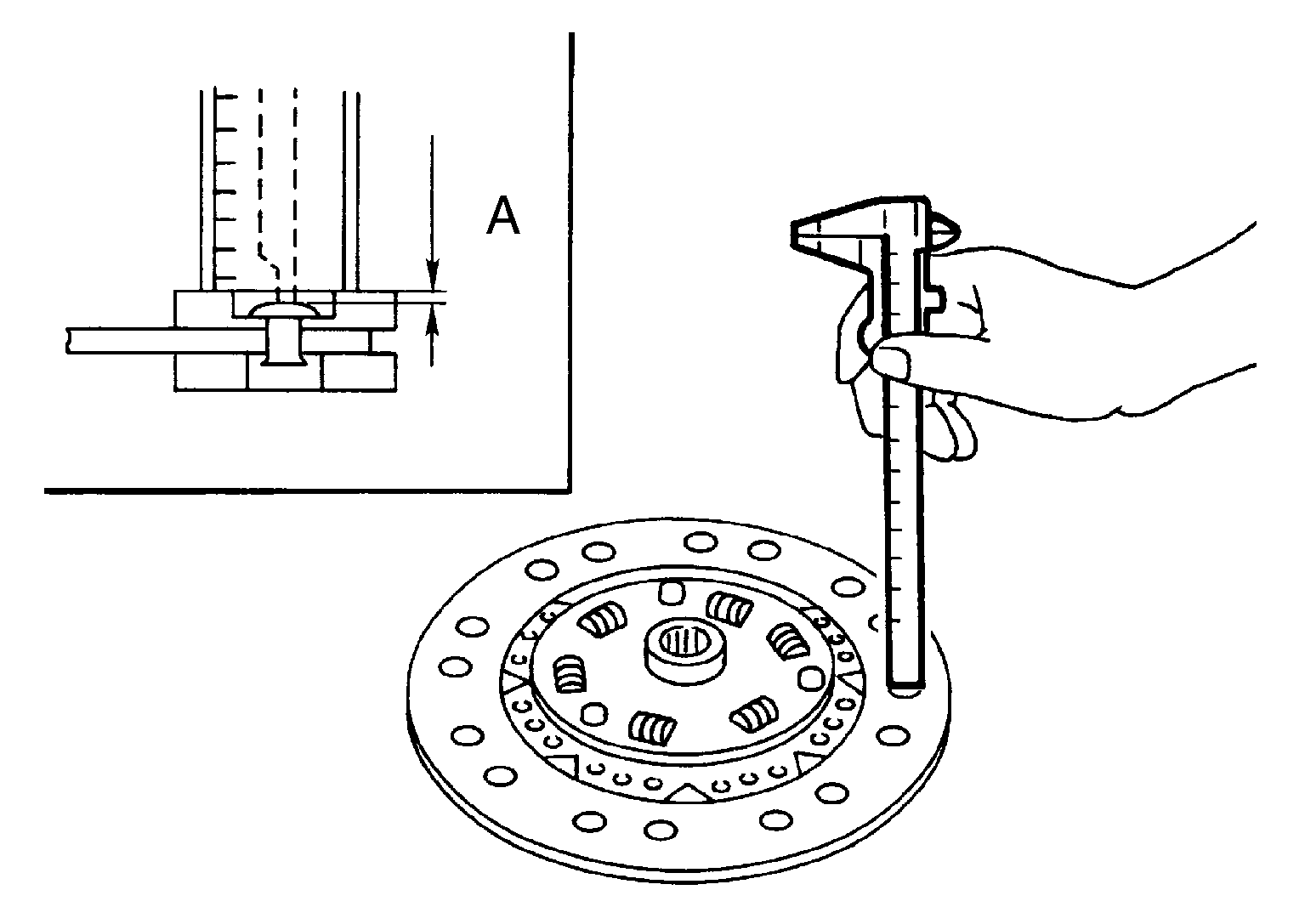

  Fig 2: Measuring Depth To Clutch Disc Facing Rivets Using Calipers

  Courtesy of NISSAN MOTOR CO., U.S.A.

Clutch Cover

• Check clutch cover thrust ring for wear or breakage. If wear or breakage is found, replace clutch cover.
  NOTE:

  • Worn thrust ring will generate a beating noise when tapped at the rivet with a hammer.
  • Broken thrust ring will make a clinking sound when cover is shaken up and down.
• If a trace of burn or discoloration is found on the clutch cover pressure plate to clutch disc contact surface, repair the surface with sandpaper. If surface is damaged or distorted, replace clutch cover.
