Inspection After Installation

WARNING: This page is about a different variant/trim than selected.

Clutch Cover

Check diaphragm spring lever claws for unevenness with the lever still on the vehicle. If they exceed the tolerance, adjust lever height, using Tool (A).

Tool number : ST20050240 (-)

Tolerance for diaphragm spring lever unevenness : Refer to "CLUTCH COVER ".

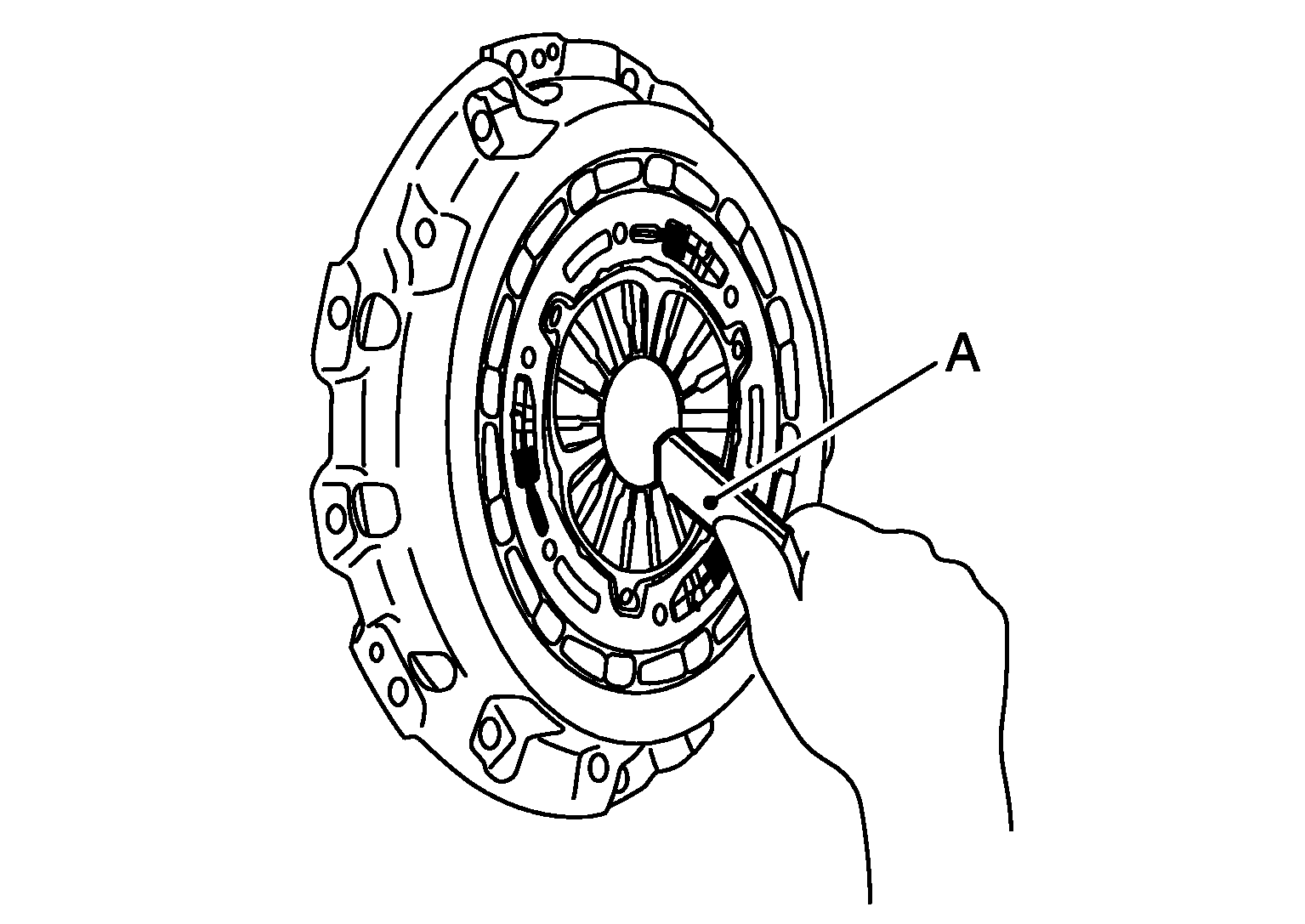

Fig 1: Adjusting Lever Height Of Diaphragm Spring Lever Using Tool

Courtesy of NISSAN MOTOR CO., U.S.A.
