Section 1 (Clutch)
>>
Service Information
>>
Clutch Disc, Clutch Cover And Flywheel
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

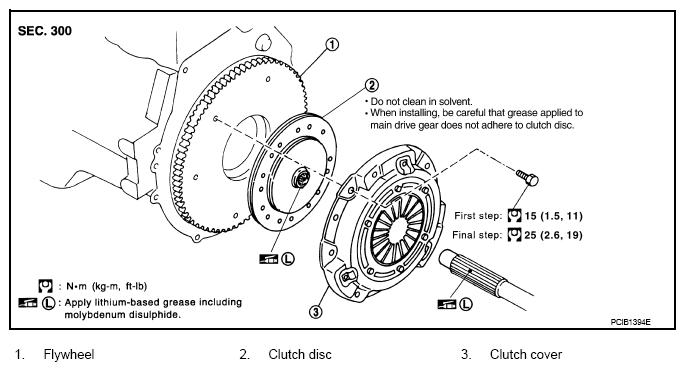

Fig 1: Exploded View Of Clutch Disc, Clutch Cover And Flywheel With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
