Removal and Installation: Components

WARNING: This page is about a different variant/trim than selected.

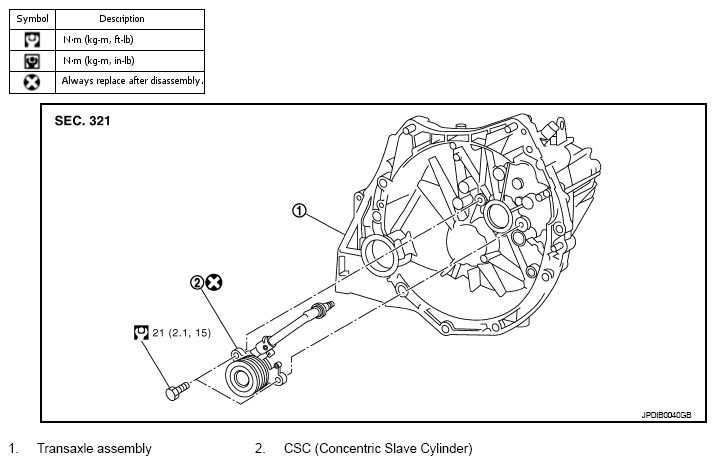

Fig 1: Exploded View Of Transaxle Assembly & Concentric Slave Cylinder With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

If transaxle assembly is removed from the vehicle, always replace CSC (Concentric slave cylinder). Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding parts may damage CSC seal and may cause clutch fluid leakage.
Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected area with water.
