Wiring Diagram - P/SCKT -

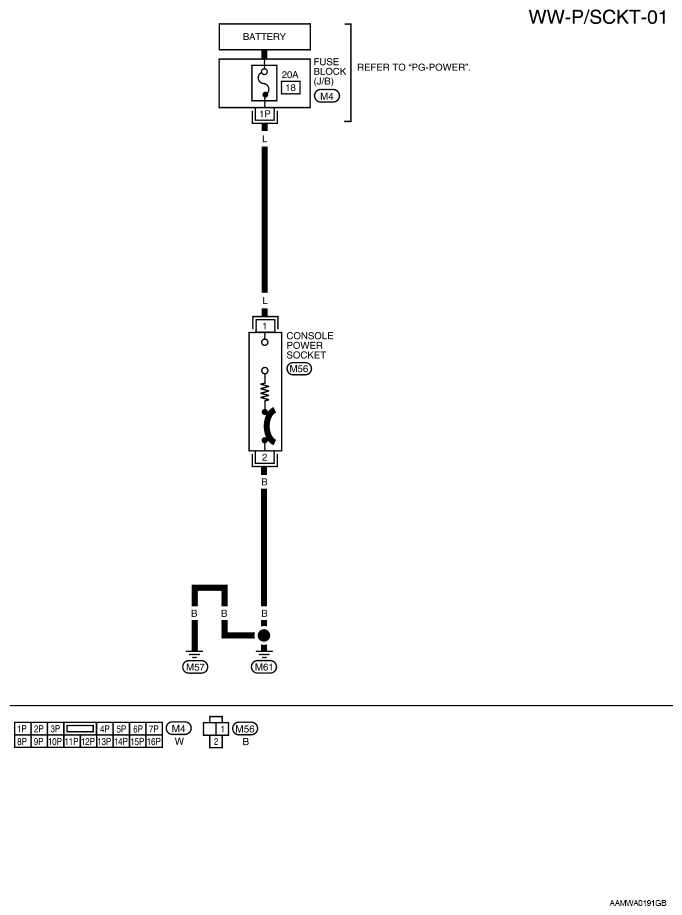

Fig 1: Wiring Diagram - WW-P/SCKT-01

G06553734

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Wiring Diagram - WW-P/SCKT-02

G06553735

Courtesy of NISSAN MOTOR CO., U.S.A.
