Nissan-Datsun
>>
2011
>>
Sentra S
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Horns
>>
Wiper, Washer & Horn
>>
Service Information
>>
Front Wiper And Washer System
>>
Washer Tube Layout
Washer Tube Layout

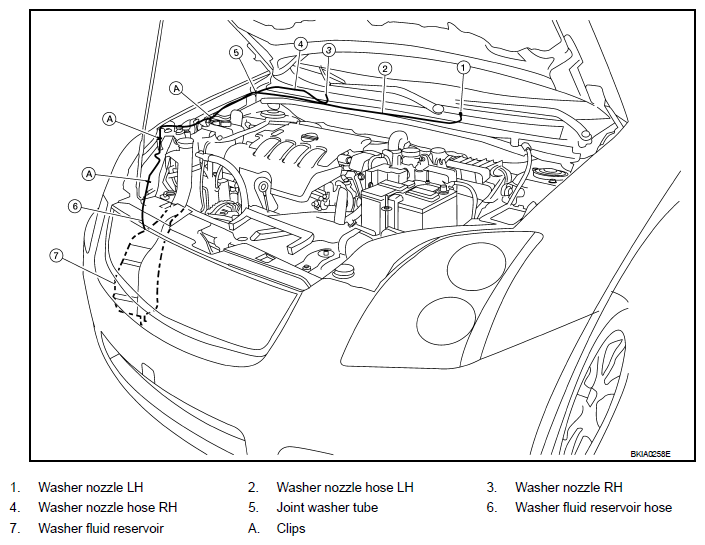

Fig 1: View Of Washer Tube Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
