Home
>>
Nissan-Datsun
>>
2011
>>
Rogue S, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
SRS Airbag
>>
Except For MEXICO
>>
Removal And Installation
>>
Spiral Cable
>>
Exploded View
Exploded View

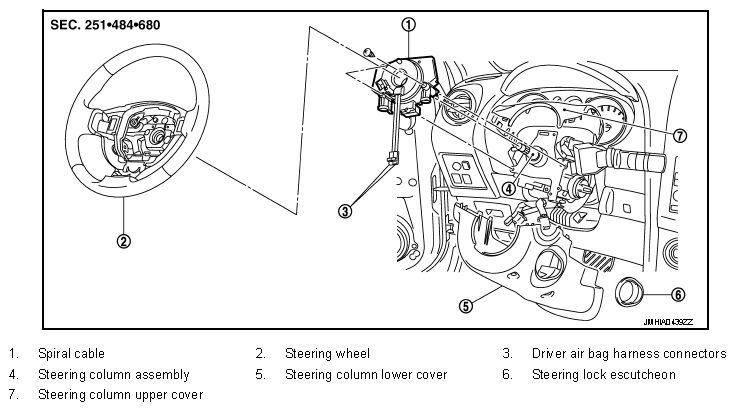

Fig 1: Exploded View Of Spiral Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
