Diagnosis Description

Auto active test

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.

Operation procedure

  1. Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper operation)
    NOTE: When auto active test is performed with hood opened, sprinkle water on windshield beforehand.
  2. Turn the ignition switch OFF.
  3. Turn the ignition switch ON, and within 20 seconds, press the driver door switch 10 times. Then turn the ignition switch OFF.
    CAUTION: Close passenger door.
  4. Turn the ignition switch ON within 10 seconds. Then the horn sounds once and the auto active test starts.
    NOTE: Only a vehicle with the vehicle security system, the horn sounds.
  5. The oil pressure warning lamp starts blinking when the auto active test starts.
  6. After a series of the following operations is repeated 3 times, auto active test is completed.
    NOTE: When auto active test mode has to be cancelled halfway through test, turn the ignition switch OFF.
    CAUTION:
    • If auto active test mode cannot be actuated, check door switch system.
    • Never start the engine.

Inspection in auto active test mode

When auto active test mode is actuated, the following 6 steps are repeated 3 times.

AUTO ACTIVE TEST MODE REFERENCE CHART

Operation sequence Inspection location Operation
A Oil pressure warning lamp Blinks continuously during operation of auto active test.
1 Rear window defogger 10 seconds
2 Front wiper motor LO for 5 seconds → HI for 5 seconds
3
  • Parking lamp
  • License plate lamp
  • Tail lamp
  • Side marker lamp
  • Front fog lamp
  • Headlamps HI (daytime running light operation)(1)
10 seconds
4 Headlamp LO 10 seconds → <=> OFF 5 times
5 A/C compressor (magnet clutch) ON <=> OFF 5 times
6 Cooling fan LO for 5 seconds → MID for 3 seconds → HI for 2 seconds
NOTE:
(1) With daytime running light system

Concept of auto active test

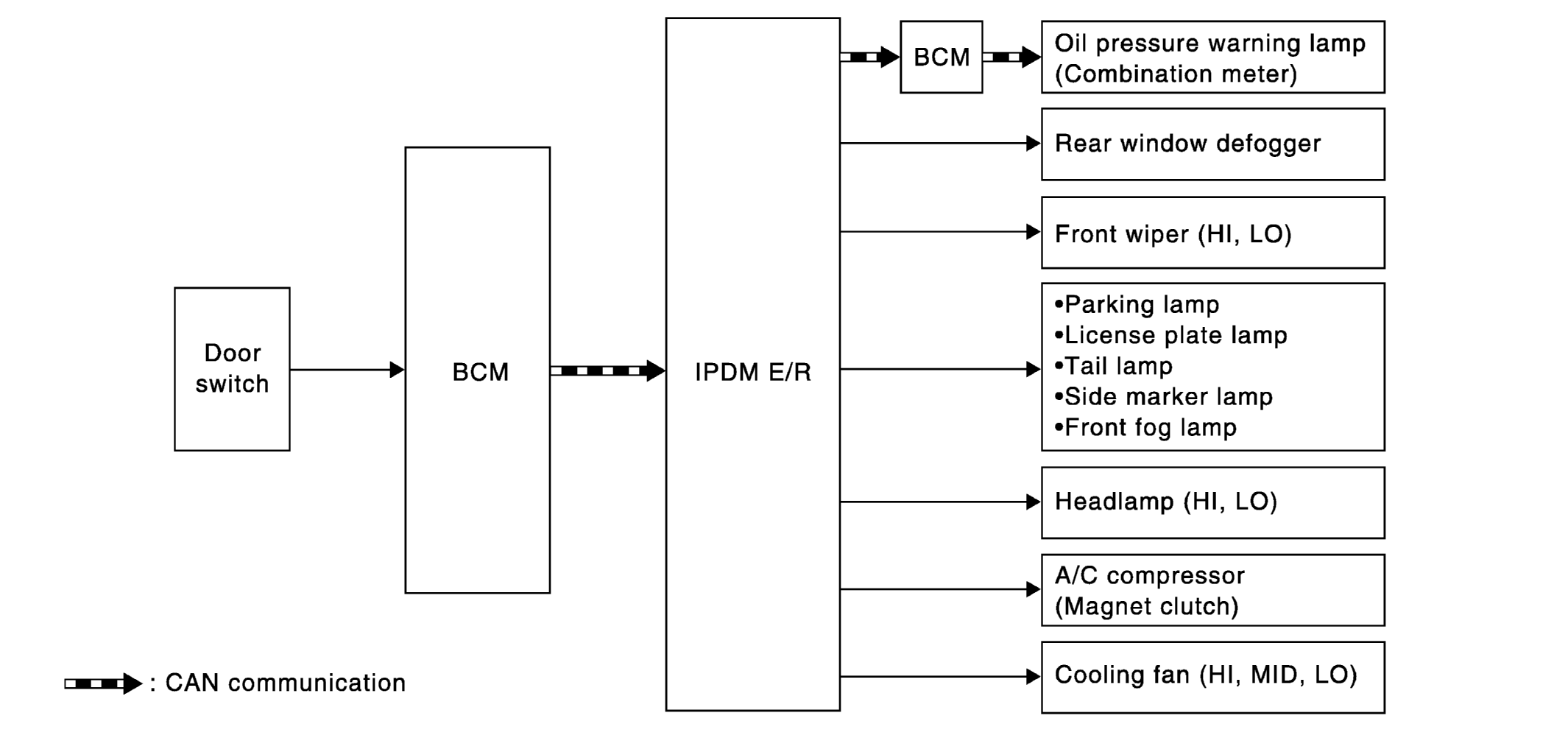

Fig 1: Auto Active Test Concept Chart
G07136948Courtesy of NISSAN MOTOR CO., U.S.A.

Diagnosis chart in auto active test mode

AUTO ACTIVE TEST MODE DIAGNOSIS CHART

Symptom Inspection contents Possible cause
Rear window defogger does not operate Perform auto active test. Does the rear window defogger operate? YES BCM signal input circuit
NO
  • Rear window defogger
  • Rear window defogger ground circuit
  • Harness or connector between IPDM E/R and rear window defogger
  • IPDM E/R
Any of the following components do not operate
  • Parking lamp
  • License plate lamp
  • Tail lamp
  • Side marker lamp
  • Front fog lamp
  • Headlamp (HI, LO)
  • Front wiper motor (HI, LO)
Perform auto active test. Does the applicable system operate? YES BCM signal input circuit
NO
  • Lamp or motor
  • Lamp or motor ground circuit
  • Harness or connector between IPDM E/R and applicable system
  • IPDM E/R
Headlamps HI (daytime running light operation) do not operate Perform auto active test. Do headlamps HI (daytime running light operation) operate? YES
  • CAN communication signal between ECM and BCM
  • CAN communication signal between combination meter and BCM
  • BCM signal input circuit
NO
  • Daytime running light relay power supply circuit
  • Harness or connector between IPDM E/R and daytime running light relay
  • Daytime running light relay
A/C compressor does not operate Perform auto active test. Does the magnet clutch operate? YES
  • BCM signal input circuit
  • CAN communication signal between BCM and ECM
  • CAN communication signal between ECM and IPDM E/R
NO
  • Magnet clutch
  • Harness or connector between IPDM E/R and magnet clutch
  • IPDM E/R
Oil pressure warning lamp does not operate Perform auto active test. Does the oil pressure warning lamp blink? YES
  • Harness or connector between IPDM E/R and oil pressure switch
  • Oil pressure switch
  • IPDM E/R
NO
  • CAN communication signal between IPDM E/R and BCM
  • CAN communication signal between BCM and combination meter
  • Combination meter
Cooling fan does not operate Perform auto active test. Does the cooling fan operate? YES
  • ECM signal input circuit
  • CAN communication signal between ECM and IPDM E/R
NO
  • Cooling fan motor-2 power supply circuit
  • Cooling fan motor-1 ground circuit
  • Cooling fan relay-4 or cooling fan relay-5 power supply circuit
  • Cooling fan relay-5 ground circuit
  • Harness or connector between IPDM E/R and cooling fan motor
  • Harness or connector between IPDM E/R, and cooling fan relay-4 or cooling fan relay-5
  • Harness or connector between cooling fan motor-2, and cooling fan relay-4 or cooling fan relay-5
  • Cooling fan relay-4 or cooling fan relay-5
  • Cooling fan motor
  • IPDM E/R
