Removal and Installation: Removal

  1. Remove console finisher.
    1. Put selector lever in [N] or [D] position.
    2. Remove console finisher (1) fixing pawls and metal clips with remover tool (A).
    3. Pull console finisher upward to disengage from center console.

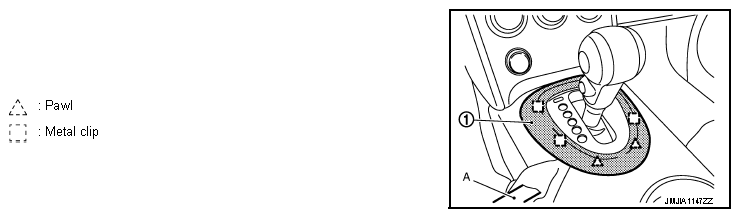

      Fig 1: Removing Console Finisher And Fixing Pawls, Metal Clips With Remover Tool
      G07135445Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove cluster lid D.
    1. Using remover tool (A), release cluster lid D (1) fixing pawls and clips, from lower to upper, from Instrument panel.
    2. Release harness connectors.

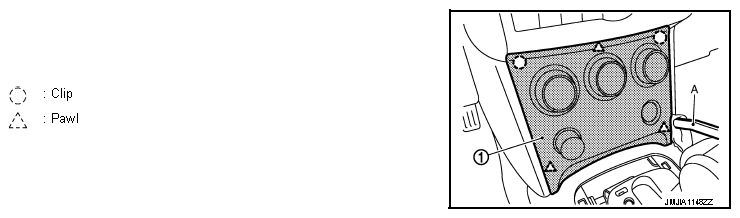

      Fig 2: Releasing Cluster Lid D And Fixing Pawls, Clips Using Special Remover Tool
      G07135446Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove instrument lower covers (LH and RH).

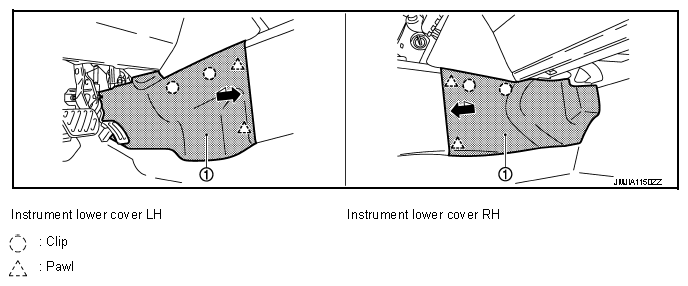

    Fig 3: Removing Instrument Lower Covers (LH And RH)
    G07135447Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Pull from the rear of instrument lower cover (1) to release rear pawls, use remover tool to release upper clips.
    2. Pull backward to release instrument lower cover from instrument panel.
      CAUTION: To avoid damaging parts, it is important to take care for removal of this part.
  4. Remove center console assembly.
    1. Remove screws (A) of center console front side.
      Fig 4: Removing Screws Of Center Console Front Side
      G05371251Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Remove center console (1) front fixing screws (A) and clips (B).
      Fig 5: Location Of Center Console With Front Fixing Screws And Clips
      G05371253Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Remove center console rear fixing screws (A), move forward front seats if necessary.
      Fig 6: Identifying Center Console Rear Fixing Screws
      G05371254Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Lift up the center console, and then disconnect harness connectors.
      CAUTION: Always move center console with caution to avoid damaging seats, or other part.
  5. Remove center speaker grille.
    1. Remove center speaker grille (1) fixing pawls with remover tool.
    2. Pull up center speaker grille from cluster lid C.

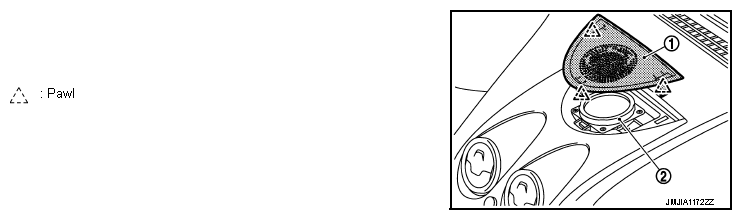

      Fig 7: Location Of Center Speaker Grille And Center Speaker With Pawls
      G07135451Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove center speaker (2). (if equipped)

    Refer to "REMOVAL AND INSTALLATION ".

  7. Remove cluster lid C.
    1. Pull back cluster lid C (1), and then disengage pawls of upper side.
    2. Insert a remover tool between cluster lid C and instrument panel assembly (2), and then disengage metal clips.
    3. Disconnect harness connector.

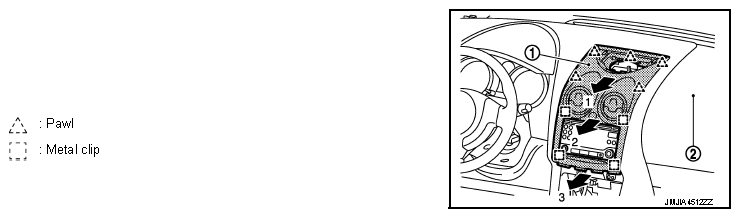

      Fig 8: Pulling Back Cluster Lid C
      G07135452Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove audio unit or NAVI control unit.
  9. Remove instrument side finisher LH.
    1. Insert a remover tool (A) into lower space, and disengage instrument side finisher LH (1) fixing pawls.
    2. Pull back instrument side finisher.

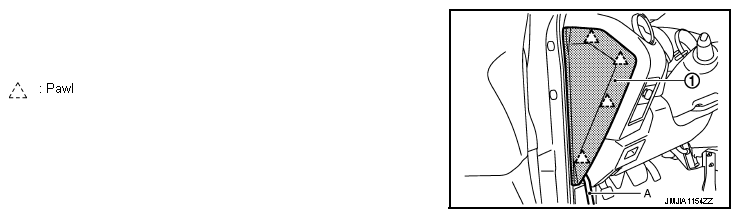

      Fig 9: Removing Instrument Side Finisher LH With Special Remover Tool
      G07135453Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove front body side welt LH. Refer to "EXPLODED VIEW ".
  11. Remove front pillar garnish LH. Refer to "REMOVAL AND INSTALLATION ".
  12. Remove tweeter grille LH.
    1. Disengage tweeter grille (1) fixing pawls with remover tool (A).
    2. Pull up tweeter grille LH.
      Fig 10: Removing Tweeter Grille LH With Remover Tool
      G07135454Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove instrument driver lower panel.
    1. Remove instrument driver lower panel (1) fixing screw (A).
    2. Pull back instrument driver lower panel.
    3. Release date link connector (pawl) then remove it from instrument driver lower panel.
    4. Release hood opener cable. Refer to "HOOD LOCK CONTROL : EXPLODED VIEW ".
    5. Disconnect harness clamp.

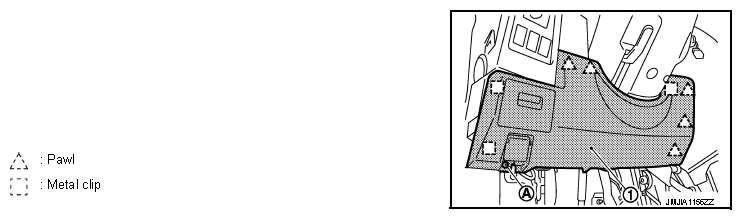

      Fig 11: Removing Instrument Driver Lower Panel And Fixing Screw
      G07135455Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove knee protector.

    Remove knee protector mounting bolts (A) with power tool, and then remove knee protector (1).

    Fig 12: ocation Of Knee Protector With Mounting Bolts
    G05371261Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove steering wheel. Refer to "REMOVAL AND INSTALLATION ".
  16. Remove steering column covers.
    1. Release steering column handle.
    2. Remove steering lock escutcheon (1).
    3. Remove steering column lower cover (2) fixing screws (A).
    4. Pull up steering column upper cover (3), and then remove steering column upper cover.
    5. Pull down steering column lower cover, and then remove steering column lower cover.
    6. Release steering column finisher (4) fixing pawls, and then remove steering column finisher.

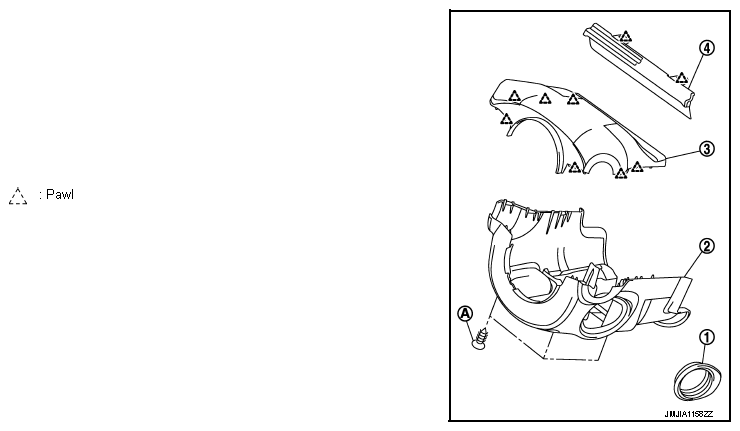

      Fig 13: Exploded View Of Steering Column Covers Components
      G07135457Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Remove combination switch. Refer to "REMOVAL AND INSTALLATION ".
  18. Remove cluster lid A.
    1. Pull back cluster lid A (1), and disengage metal clips.
    2. Remove cluster lid A.

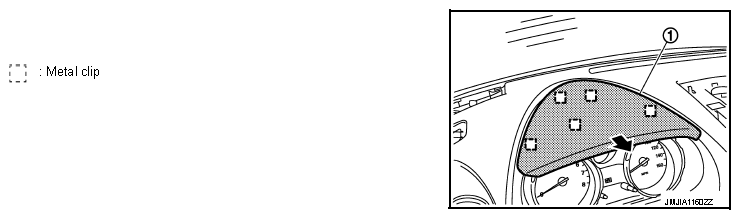

      Fig 14: Removing Cluster Lid A
      G07135458Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Remove combination meter. Refer to "REMOVAL AND INSTALLATION ".
  20. Remove switch panel.
    1. Remove switch panel (1) fixing pawls with remover tool (A).
    2. Pull back switch panel.
    3. Release harness connectors.

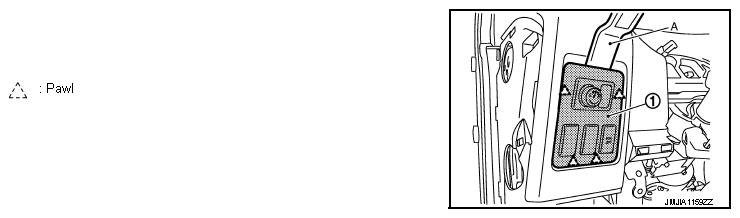

      Fig 15: Removing Switch Panel And Fixing Pawls With Special Remover Tool
      G07135459Courtesy of NISSAN MOTOR CO., U.S.A.
  21. Remove instrument side finisher RH.
    1. Insert a remover tool (A) into lower space, and disengage instrument side finisher RH (1) fixing pawls.
    2. Pull back instrument side finisher.

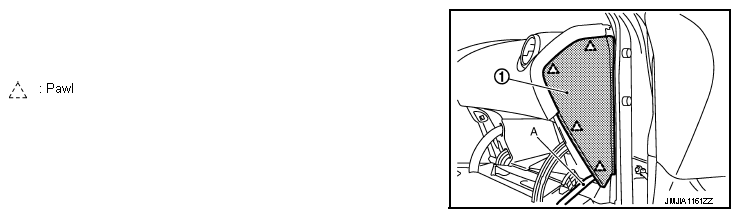

      Fig 16: Removing Instrument Side Finisher RH With Special Remover Tool
      G07135460Courtesy of NISSAN MOTOR CO., U.S.A.
  22. Remove body side welt RH. Refer to "EXPLODED VIEW ".
  23. Remove front pillar garnish RH. Refer to "REMOVAL AND INSTALLATION ".
  24. Remove tweeter grille RH.
    1. Disengage tweeter grille (1) fixing pawls with remover tool (A).
    2. Pull up tweeter grille RH.
      Fig 17: Removing Tweeter Grille RH And Fixing Pawls With Special Remover Tool
      G07135461Courtesy of NISSAN MOTOR CO., U.S.A.
  25. Remove glove box assembly.
    1. Open the glove box lid.
    2. Remove fixing screws (A).
    3. Pull glove box assembly (1).
    4. Disconnect glove box lamp harness connector.
      Fig 18: Location Of Glove Box Assembly And Fixing Screws
      G05371267Courtesy of NISSAN MOTOR CO., U.S.A.
  26. Disconnect passenger air bag module connector. Refer to "REMOVAL AND INSTALLATION ".
  27. Remove passenger air bag module mounting bolt. Refer to "EXPLODED VIEW ".
  28. Remove instrument panel assembly.
    1. Remove instrument panel assembly fixing screws (A) and bolts (B).
      CAUTION: Cover tool with a shop cloth to prevent windshield glass being damaged.
      Fig 19: Location Of Instrument Panel Assembly Fixing Screws And Bolts
      G05371268Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Release floor harness clamps (A) from instrument panel (1).
      Fig 20: Location Of Floor Harness Clamps And Instrument Panel
      G05371269Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Release glove box lamp harness clamp (A) from instrument panel (1).
      Fig 21: Location Of Glove Box Lamp Harness Clamp And Instrument Panel
      G05371270Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Remove instrument panel from passenger door opening portion.
      CAUTION:
      • Cover shift knob (selector knob) upper surface with a shop cloth to prevent it from being damaged.
      • When removing instrument panel, 2 workers are required so as to prevent it from dropping.
  29. Remove the following parts after removing instrument panel & pad.
