Removal and Installation: Removal

Remove console finisher.
1. Put selector lever in [N] or [D] position.
2. Remove console finisher (1) fixing pawls and metal clips with remover tool (A).
3. Pull console finisher upward to disengage from center console.

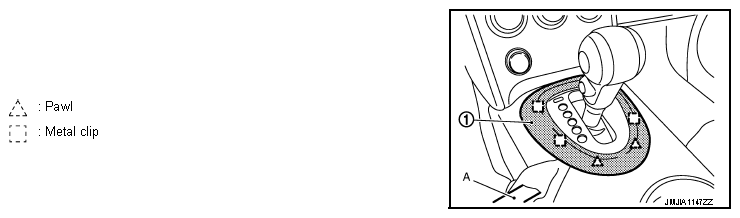

  Fig 1: Location Of Console Finisher And Fixing Pawls, Metal Clips With Special Remover Tool
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove cluster lid D.
1. Using remover tool (A), release cluster lid D (1) fixing pawls and clips, from lower to upper, from Instrument panel.
2. Release harness connectors.

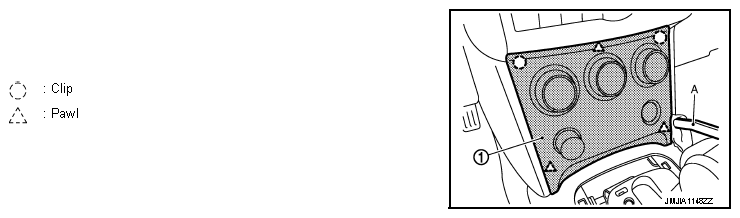

  Fig 2: Releasing Cluster Lid D And Fixing Pawls, Clips Using Remover Tool
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove instrument lower covers (LH and RH).

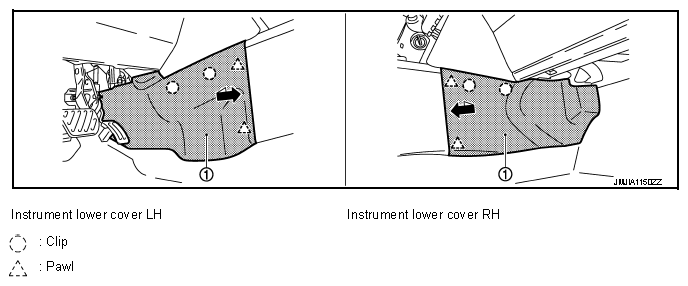

Fig 3: Removing Instrument Lower Covers (LH And RH)
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Pull from the rear of instrument lower cover (1) to release rear pawls, use remover tool to release upper clips.
2. Pull backward to release instrument lower cover from instrument panel.
  CAUTION: To avoid damaging parts, it is important to take care for removal of this part.
Remove center console assembly.
1. Remove screws (A) of center console front side.

  Fig 4: Removing Screws Of Center Console Front Side
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove center console (1) front fixing screws (A) and clips (B).

  Fig 5: Location Of Center Console With Front Fixing Screws And Clips
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove center console rear fixing screws (A), move forward front seats if necessary.

  Fig 6: Location Of Center Console Rear Fixing Screws
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Lift up the center console, and then disconnect harness connectors.
  CAUTION: Always move center console with caution to avoid damaging seats, or other part.
