Nissan-Datsun
>>
2010
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
SRS Airbag
>>
For USA And CANADA
>>
Removal And Installation
>>
Spiral Cable
>>
Exploded View
Exploded View

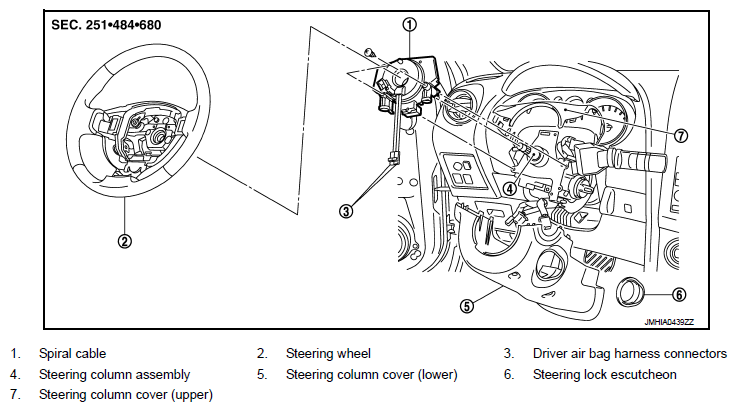

Fig 1: Exploded View Of Spiral Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
