Nissan-Datsun
>>
2010
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter, Warning Lamp & Indicator
>>
System Description
>>
Meter System
>>
ODO/Trip Meter
>>
ODO/TRIP METER : Component Parts Location
ODO/TRIP METER : Component Parts Location

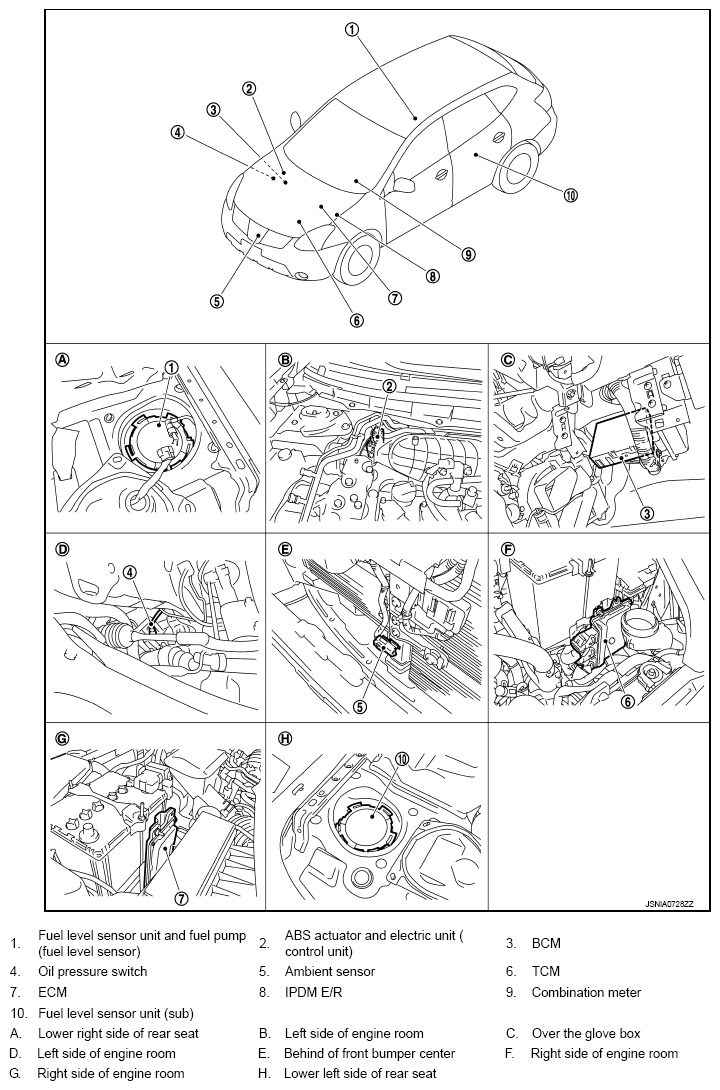

Fig 1: Identifying ODO/Trip Meter Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
