Start-Up Procedure Of On Board Diagnosis

Turn the ignition switch ON.
Turn the ignition switch OFF after setting the display to "trip A" or "trip B" with the odo/trip meter switch (1).
Turn the ignition switch to ON while pressing the illumination control switch (2).
Press the illumination control switch at least 3 times (Within 7 seconds after the ignition switch is turned ON).

Fig 1: Identifying ODO/Trip Meter Switch And Illumination Control Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Illuminates all segments in the information display. At this time, the combination meter is turned to on board diagnosis mode.
NOTE:
- Check combination meter power supply and ground circuits when on board diagnosis mode of combination meter does not start. Replace combination meter if the circuits are normal.
- If any of the segments is not displayed, replace combination meter.
Fig 2: Identifying Segments In Information Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Each meter activates during pressing illumination control switch.

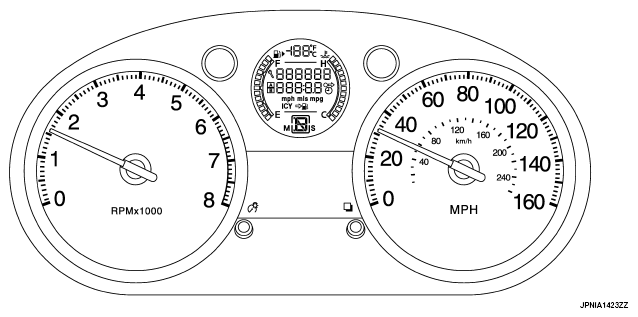

Fig 3: Identifying Combination Meter

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Check the combination meter power supply and the ground circuit if the on board diagnosis does not start. Refer to , "COMBINATION METER : DIAGNOSIS PROCEDURE ".
