Wiring Diagram - IPDM E/R -
Wiring Diagram - IPDM E/R -

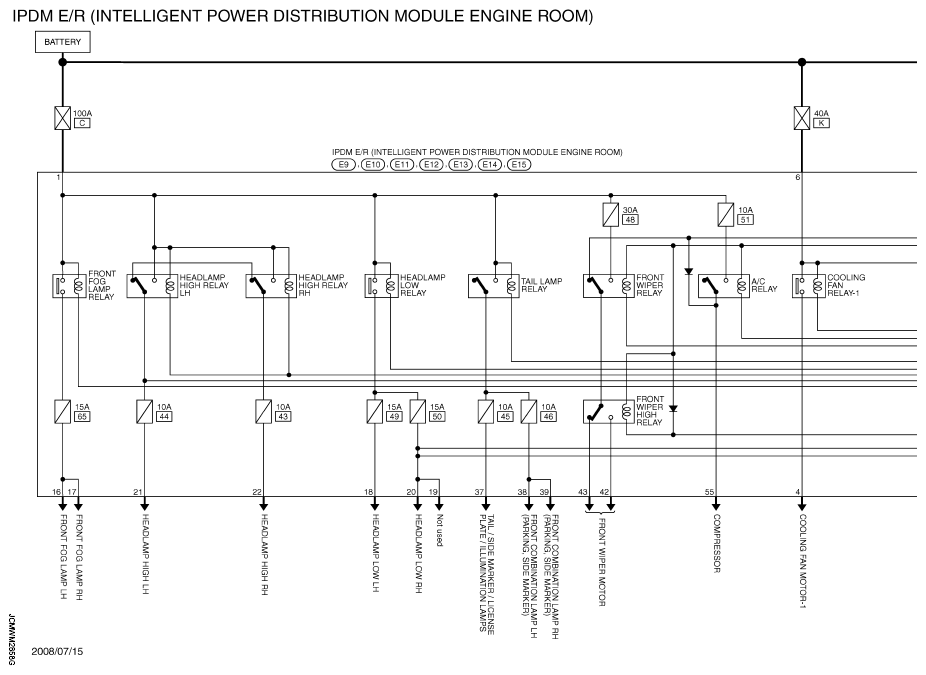

Fig 1: IPDM E/R - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

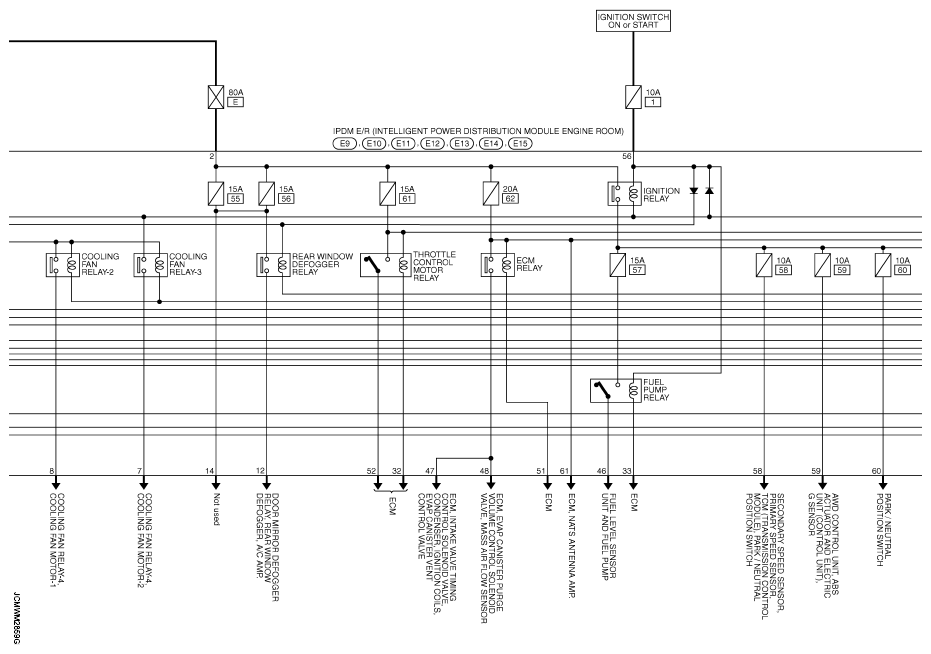

Fig 2: IPDM E/R - Wiring Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

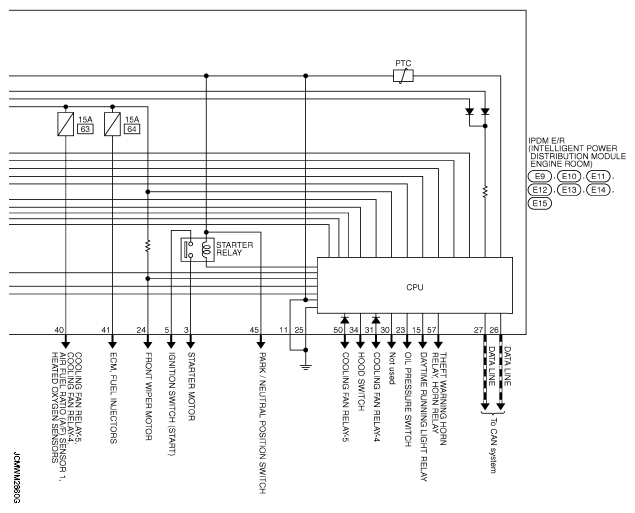

Fig 3: IPDM E/R - Wiring Diagram (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

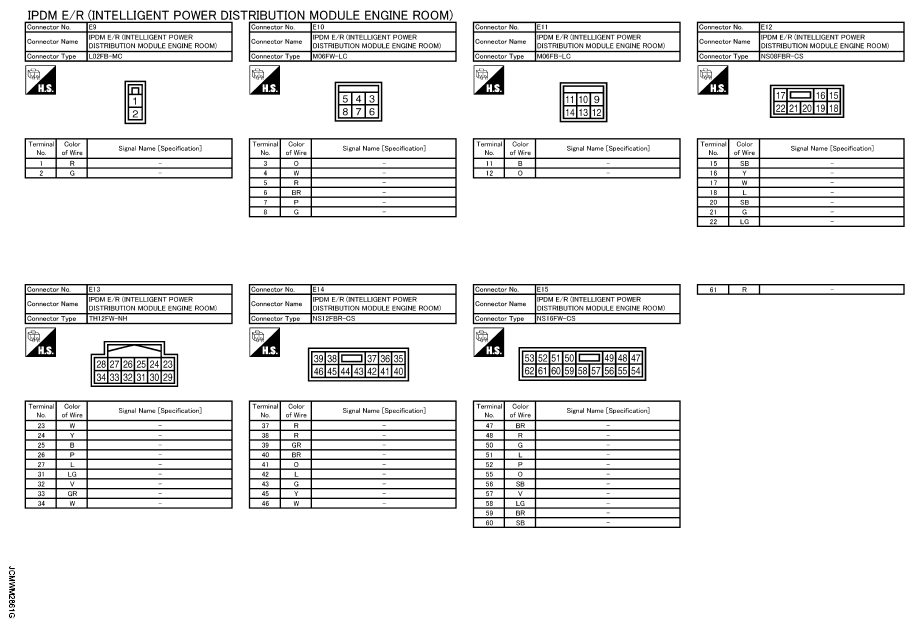

Fig 4: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
