Wiring Diagram - METER -

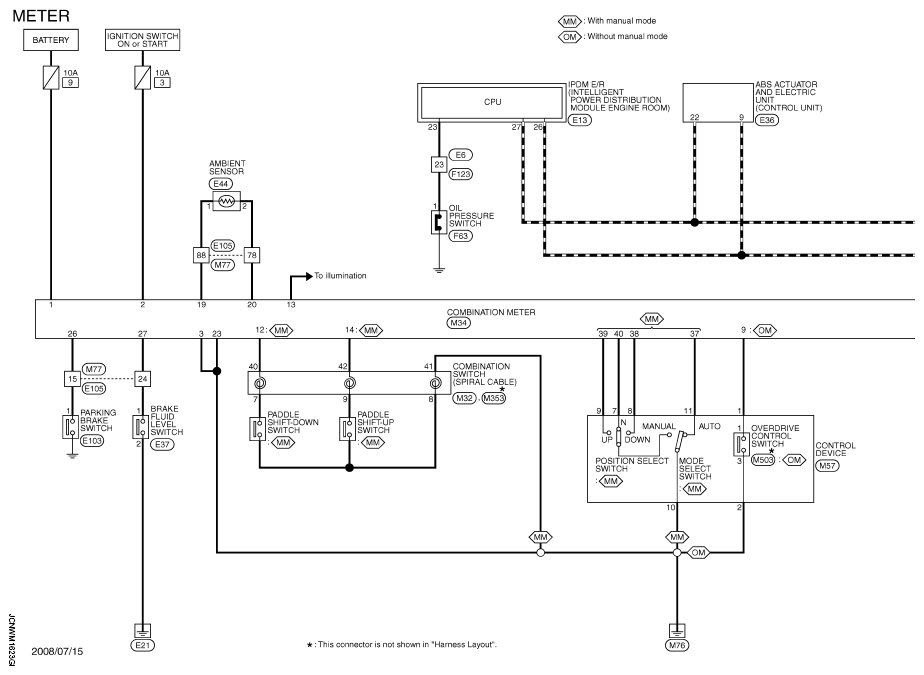

Fig 1: Meter - Wiring Diagram (1 Of 3)

G06059710

Courtesy of NISSAN MOTOR CO., U.S.A.

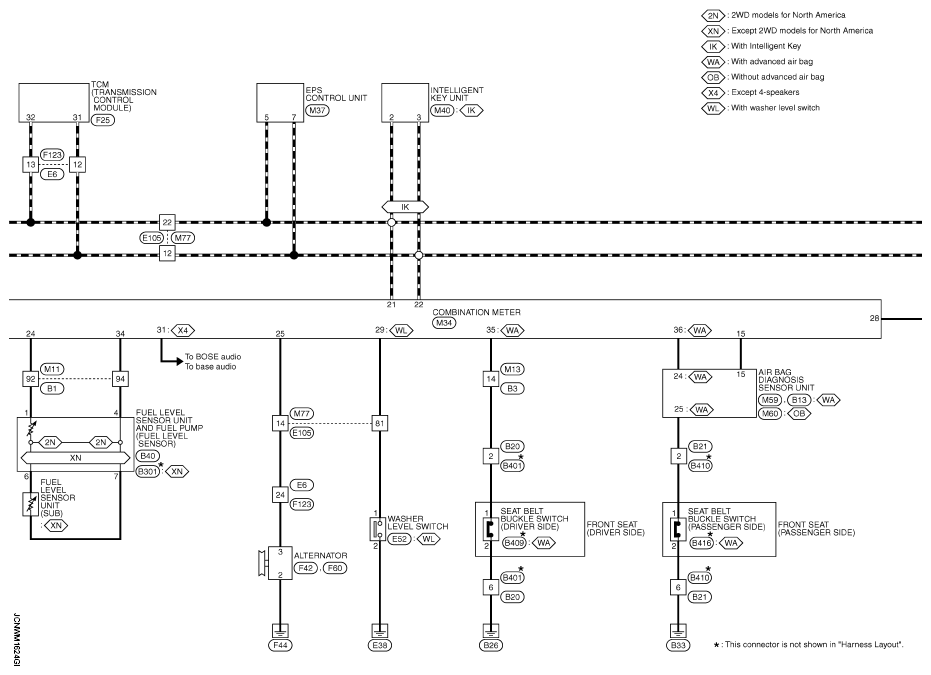

Fig 2: Meter - Wiring Diagram (2 Of 3)

G06059711

Courtesy of NISSAN MOTOR CO., U.S.A.

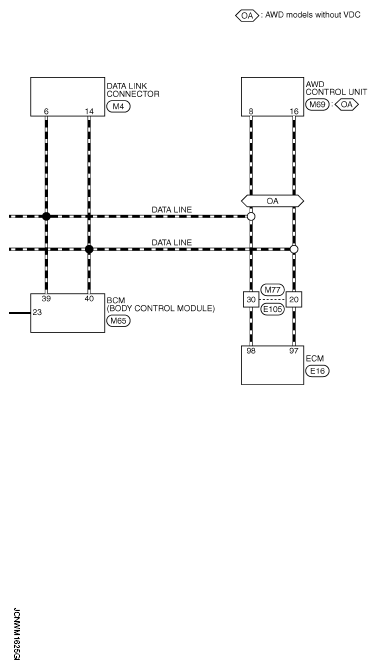

Fig 3: Meter - Wiring Diagram (3 Of 3)

G06059712

Courtesy of NISSAN MOTOR CO., U.S.A.

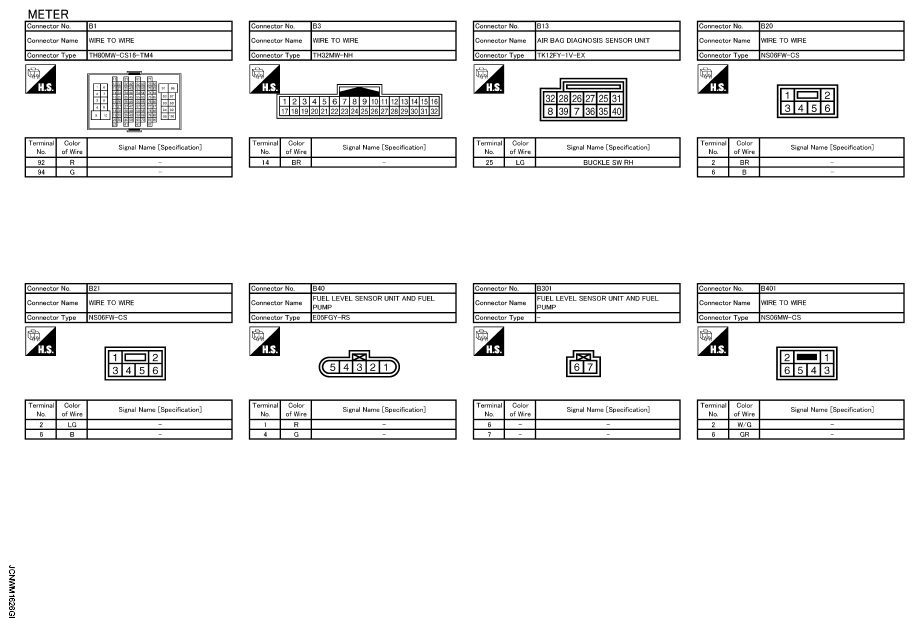

Fig 4: Meter Connectors Chart (1 Of 6)

G06059713

Courtesy of NISSAN MOTOR CO., U.S.A.

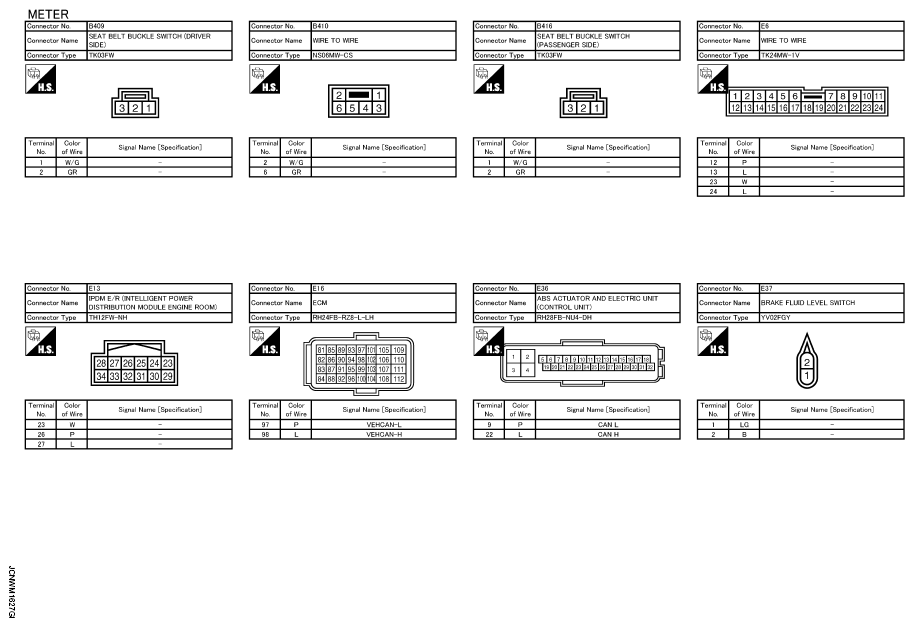

Fig 5: Meter Connectors Chart (2 Of 6)

G06059714

Courtesy of NISSAN MOTOR CO., U.S.A.

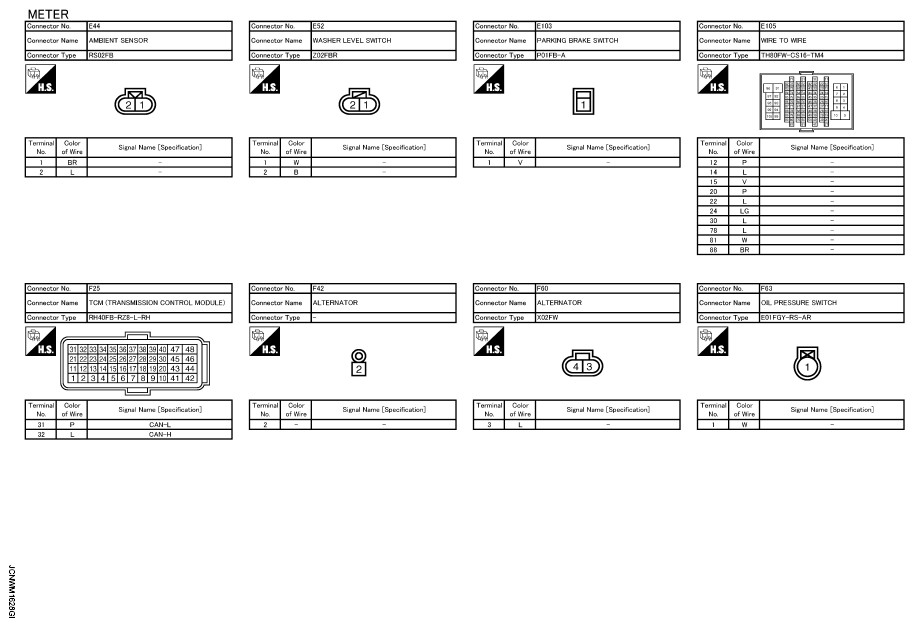

Fig 6: Meter Connectors Chart (3 Of 6)

G06059715

Courtesy of NISSAN MOTOR CO., U.S.A.

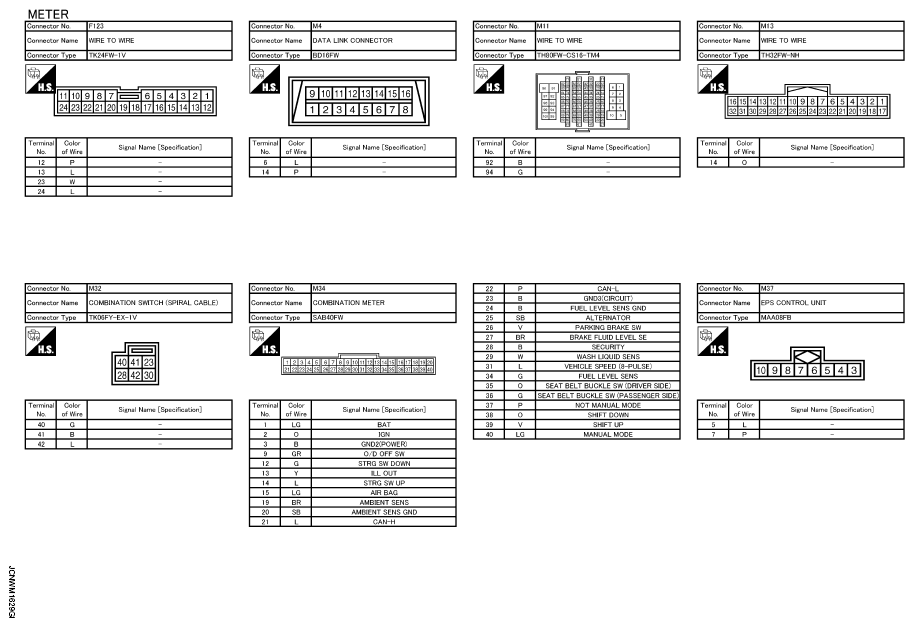

Fig 7: Meter Connectors Chart (4 Of 6)

G06059716

Courtesy of NISSAN MOTOR CO., U.S.A.

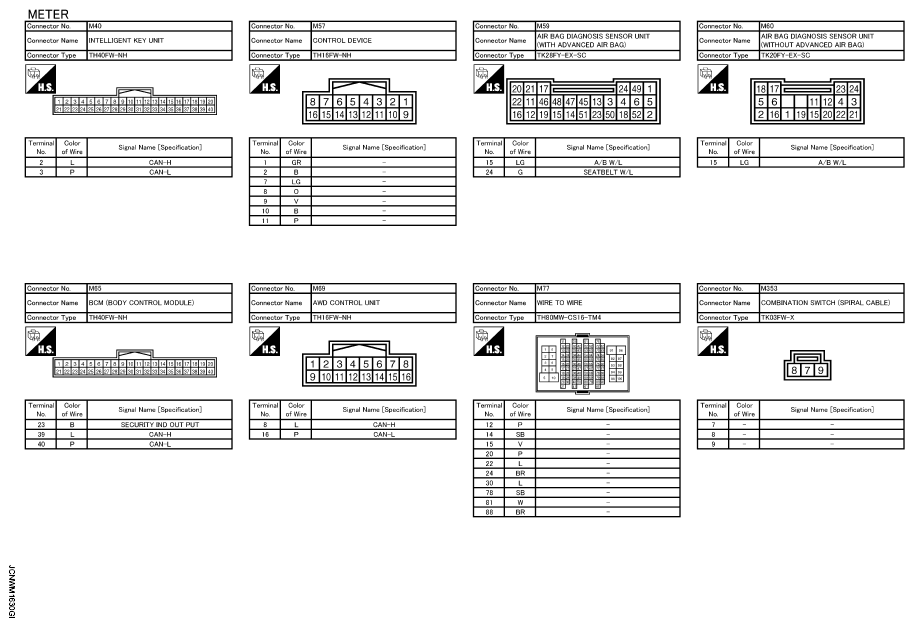

Fig 8: Meter Connectors Chart (5 Of 6)

G06059717

Courtesy of NISSAN MOTOR CO., U.S.A.

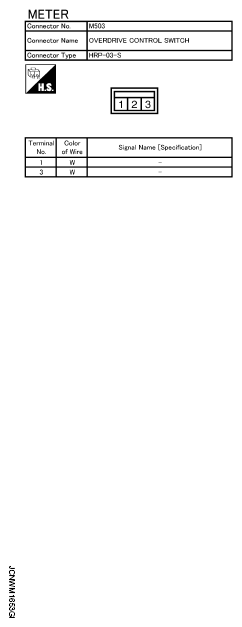

Fig 9: Meter Connectors Chart (6 Of 6)

G06059718

Courtesy of NISSAN MOTOR CO., U.S.A.
