Removal and Installation: Removal

  1. Put selector lever in [N] or [D] position.
  2. Remove console finisher.
    • Remove console finisher (1) fixing pawls and metal clips with remover tool (A).
    • Pull console finisher upward to disengage from center console.

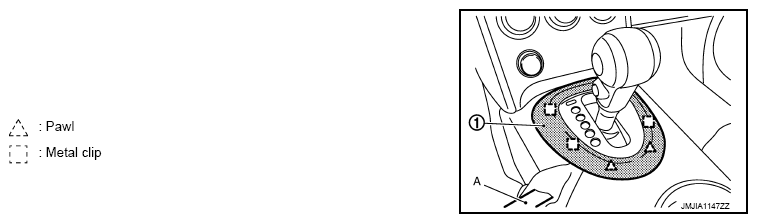

      Fig 1: Removing Console Finisher Fixing Pawls And Metal Clips With Remover Tool
      G06585714Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove cluster lid D.
    • Using remover tool (A), release cluster lid D (1) fixing pawls and clips, from lower to upper, from Instrument panel.
    • Release harness connectors.

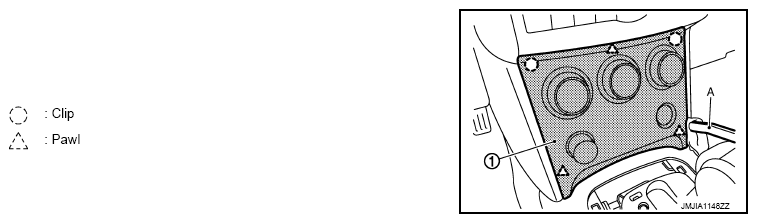

      Fig 2: Releasing Cluster Lid D Fixing Pawls And Clips Using Remover Tool
      G06585715Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove screws (A) of center console front side.
    Fig 3: Removing Screws Of Center Console Front Side
    G05371251Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove instrument lower covers (LH/RH).

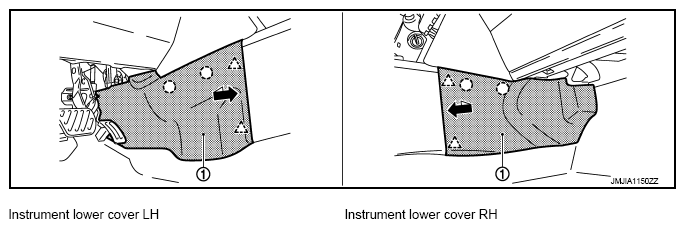

    Fig 4: Removing Instrument Lower Covers (LH/RH)
    G06585717Courtesy of NISSAN MOTOR CO., U.S.A.
    • Pull from the rear of instrument lower cover (1) to release rear pawls, use remover tool to release upper clips.
    • Pull backward to release instrument lower cover from instrument panel.

      ◦: Clip

      Δ: Pawl

      CAUTION: To avoid damaging parts, it is important to take care for removal of this part.
  6. Remove center console (1) front fixing screws (A) and clips (B).
    Fig 5: Identifying Center Console, Front Fixing Screws And Clips
    G05371253Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove center console rear fixing screws (A), move forward front seats if necessary.
    Fig 6: Identifying Center Console Rear Fixing Screws
    G05371254Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Lift up the center console, and then disconnect harness connectors.
  9. Remove center console assembly.
    CAUTION: Always move center console with caution to avoid damaging seats, or other part.
  10. Remove center speaker grille. (with BOSE audio)
    • Remove center speaker grille (1) fixing pawls with remover tool.
    • Pull up center speaker grille from cluster lid C.

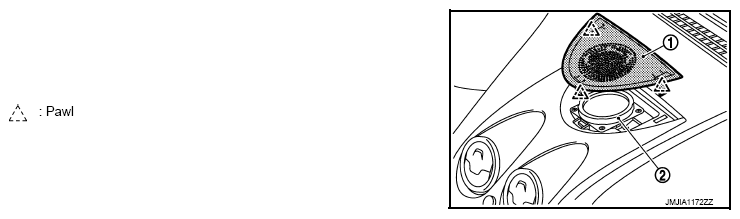

      Fig 7: Identifying Center Speaker Grille And Center Speaker
      G06585720Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove center speaker (2). (with BOSE audio)

    Refer to "REMOVAL AND INSTALLATION ".

  12. Remove cluster lid C.
    • Remove cluster lid C (1) fixing pawls and metal clips with remover tool (A).
    • Pull back cluster lid C from lower to upper part.
    • Release harness connector.

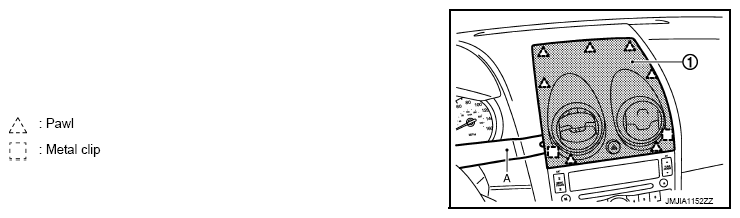

      Fig 8: Removing Cluster Lid C Fixing Pawls And Metal Clips With Remover Tool
      G06585721Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove audio unit. Refer to "REMOVAL AND INSTALLATION ".
    • Remove audio unit (1) mounting screws (A).
    • Pull back audio unit.
    • Disconnect antenna feeder and harness connectors.
      Fig 9: Identifying Audio Unit With Mounting Screws
      G05371257Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove instrument side finisher LH.
    • Insert a remover tool (A) into lower space, and disengage instrument side finisher LH (1) fixing pawls.
    • Pull back instrument side finisher.

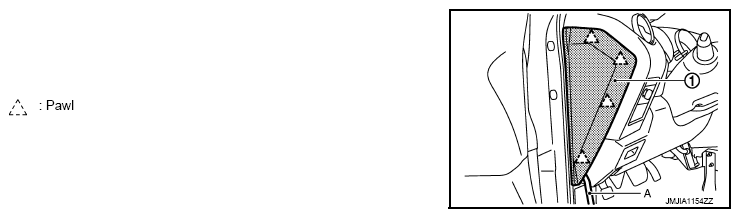

      Fig 10: Disengaging Instrument Side Finisher LH Fixing Pawls Using Remover Tool
      G06585723Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove front body side welt LH. Refer to "EXPLODED VIEW ".
  16. Remove front pillar garnish LH. Refer to "REMOVAL AND INSTALLATION ".
  17. Remove tweeter grille LH.
    • Disengage tweeter grille (1) fixing pawls with remover tool (A).
    • Pull up tweeter grille LH.
      Fig 11: Disengaging Tweeter Grille Fixing Pawls With Remover Tool
      G06585724Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Remove instrument driver lower panel.
    • Remove instrument driver lower panel (1) mounting screw (A).
    • Pull back instrument driver lower panel.
    • Release date link connector (pawl) then remove it from instrument driver lower panel.
    • Release hood opener cable. Refer to "HOOD LOCK CONTROL : EXPLODED VIEW ".
    • Disconnect harness clamp.

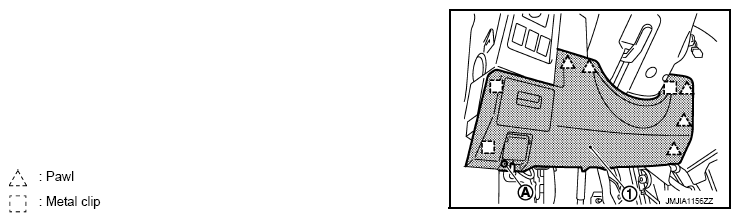

      Fig 12: Identifying Instrument Driver Lower Panel With Mounting Screw
      G06585725Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Remove knee protector mounting bolts (A) with power tool, and then remove knee protector (1).
    Fig 13: Identifying Knee Protector And Knee Protector Mounting Bolts
    G05371261Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Remove steering wheel. Refer to "REMOVAL AND INSTALLATION ".
  21. Remove steering column covers.
    • Release steering column handle.
    • Remove steering lock escutcheon (1).
    • Remove steering column lower cover (2) fixing screws (A).
    • Pull up steering column upper cover (3), and then remove steering column upper cover.
    • Pull down steering column lower cover, and then remove steering column lower cover.
    • Release steering column finisher (4) fixing pawls, and then remove steering column finisher.

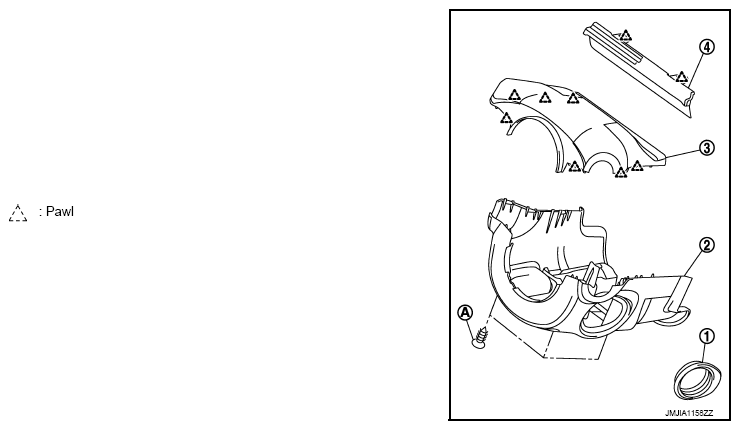

      Fig 14: Identifying Steering Lock Escutcheon, Steering Column Lower Cover, Steering Column Upper Cover And Steering Column Finisher
      G06585727Courtesy of NISSAN MOTOR CO., U.S.A.
  22. Remove combination switch. Refer to "REMOVAL AND INSTALLATION ".
  23. Remove cluster lid A.
    • Pull back cluster lid A (1), and disengage metal clips.
    • Remove cluster lid A.

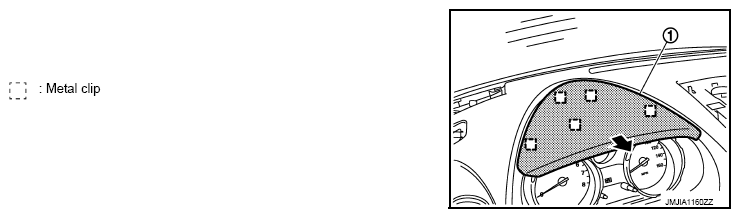

      Fig 15: Pulling Back Cluster Lid A
      G06585728Courtesy of NISSAN MOTOR CO., U.S.A.
  24. Remove combination meter. Refer to "EXPLODED VIEW ".
    • Remove combination meter fixing screws.
    • Pull back combination meter.
    • Disconnect harness connector.
  25. Remove switch panel.
    • Remove switch panel (1) fixing pawls with remover tool (A).
    • Pull back switch panel.
    • Release harness connectors.

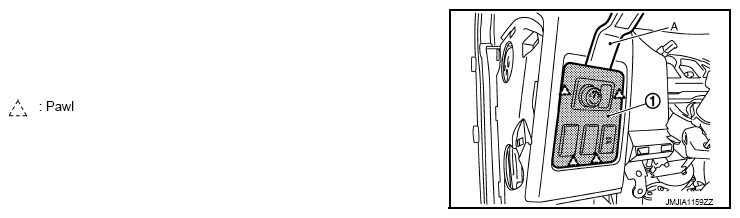

      Fig 16: Removing Switch Panel Fixing Pawls With Remover Tool
      G06585729Courtesy of NISSAN MOTOR CO., U.S.A.
  26. Remove instrument side finisher RH.
    • Insert a remover tool (A) into lower space, and disengage instrument side finisher RH (1) fixing pawls.
    • Pull back instrument side finisher.

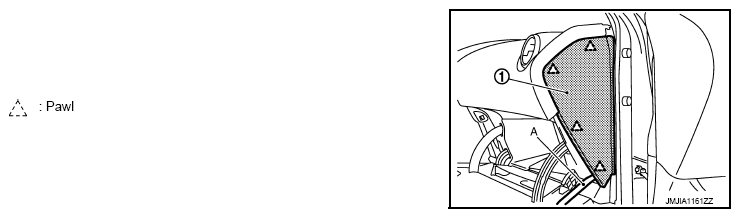

      Fig 17: Disengaging Instrument Side Finisher RH Fixing Pawls Using Remover Tool
      G06585730Courtesy of NISSAN MOTOR CO., U.S.A.
  27. Remove body side welt RH. Refer to "EXPLODED VIEW ".
  28. Remove front pillar garnish RH. Refer to "REMOVAL AND INSTALLATION ".
  29. Remove tweeter grille RH.
    • Disengage tweeter grille (1) fixing pawls with remover tool (A).
    • Pull up tweeter grille RH.
      Fig 18: Disengaging Tweeter Grille Fixing Pawls With Remover Tool
      G06585731Courtesy of NISSAN MOTOR CO., U.S.A.
  30. Remove glove box assembly.
    • Open the glove box lid.
    • Remove fixing screws (A).
    • Pull glove box assembly (1).
    • Disconnect glove box lamp harness connector.
      Fig 19: Identifying Glove Box Assembly And Fixing Screws
      G05371267Courtesy of NISSAN MOTOR CO., U.S.A.
  31. Disconnect passenger air bag module connector. Refer to "REMOVAL AND INSTALLATION ".
  32. Remove passenger air bag module fixing bolt. Refer to "EXPLODED VIEW ".
  33. Remove instrument panel assembly mounting screws (A) and bolts (B).
    Fig 20: Identifying Instrument Panel Assembly Mounting Screws And Bolts
    G05371268Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Cover tool with a shop cloth to prevent windshield glass being damaged.
  34. Release floor harness clamps (A) from instrument panel (1).
    Fig 21: Identifying Floor Harness Clamps And Instrument Panel
    G05371269Courtesy of NISSAN MOTOR CO., U.S.A.
  35. Release glove box lamp harness clamp (A) from instrument panel (1).
    Fig 22: Identifying Glove Box Lamp Harness Clamp And Instrument Panel
    G05371270Courtesy of NISSAN MOTOR CO., U.S.A.
  36. Remove instrument panel assembly.
    CAUTION:
    • over shift knob (selector knob) upper surface with a shop cloth to prevent it from being damaged.
    • When removing instrument panel, 2 workers are required so as to prevent it from dropping.
  37. Remove the following parts after removing instrument panel & pad.
