Home
>>
Nissan-Datsun
>>
2010
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel
>>
Removal And Installation
>>
Instrument Panel Assembly
>>
Exploded View
Exploded View

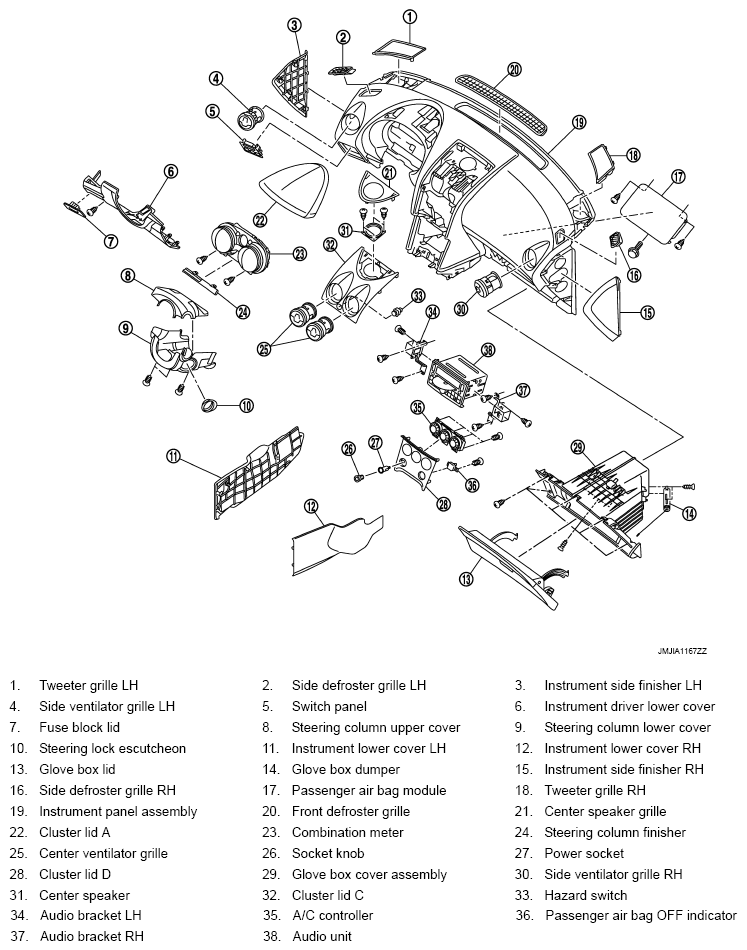

Fig 1: Exploded View Of Instrument Panel Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
