Removal and Installation: Removal

Put selector lever in [N] or [D] position.

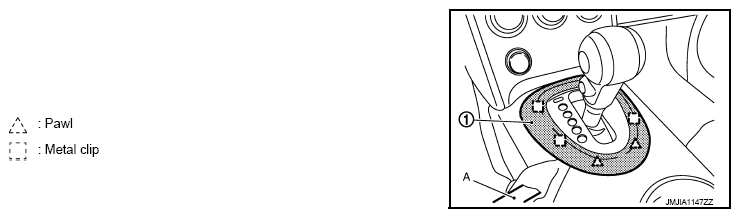

Remove console finisher.
- Remove console finisher (1) fixing pawls and metal clips with remover tool (A).
- Pull console finisher upward to disengage from center console.

  Fig 1: Removing Console Finisher Fixing Pawls And Metal Clips With Remover Tool
  Courtesy of NISSAN MOTOR CO., U.S.A.

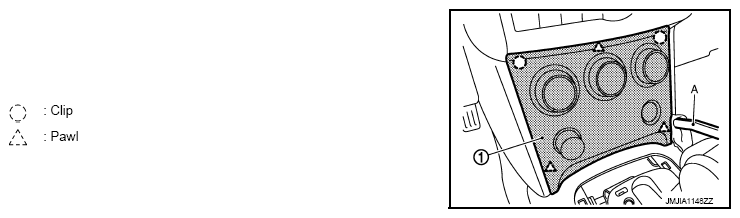

Remove cluster lid D.
- Using remover tool (A), release cluster lid D (1) fixing pawls and clips, from lower to upper, from Instrument panel.
- Release harness connectors.

  Fig 2: Releasing Cluster Lid D Fixing Pawls And Clips Using Remover Tool
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (A) of center console front side.

Fig 3: Removing Screws Of Center Console Front Side
Courtesy of NISSAN MOTOR CO., U.S.A.

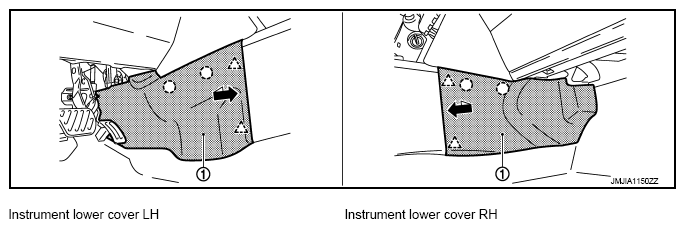

Remove instrument lower covers (LH/RH).

Fig 4: Removing Instrument Lower Covers (LH/RH)
Courtesy of NISSAN MOTOR CO., U.S.A.
- Pull from the rear of instrument lower cover (1) to release rear pawls, use remover tool to release upper clips.
- Pull backward to release instrument lower cover from instrument panel.
  ◦: Clip

  Δ: Pawl

  CAUTION: To avoid damaging parts, it is important to take care for removal of this part.
Remove center console (1) front fixing screws (A) and clips (B).

Fig 5: Identifying Center Console, Front Fixing Screws And Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove center console rear fixing screws (A), move forward front seats if necessary.

Fig 6: Identifying Center Console Rear Fixing Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Lift up the center console, and then disconnect harness connectors.
Remove center console assembly.
CAUTION: Always move center console with caution to avoid damaging seats, or other part.
