CAN Communication Signal Chart

Refer to , "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to , "ABBREVIATION LIST " for the abbreviations of the connecting units.

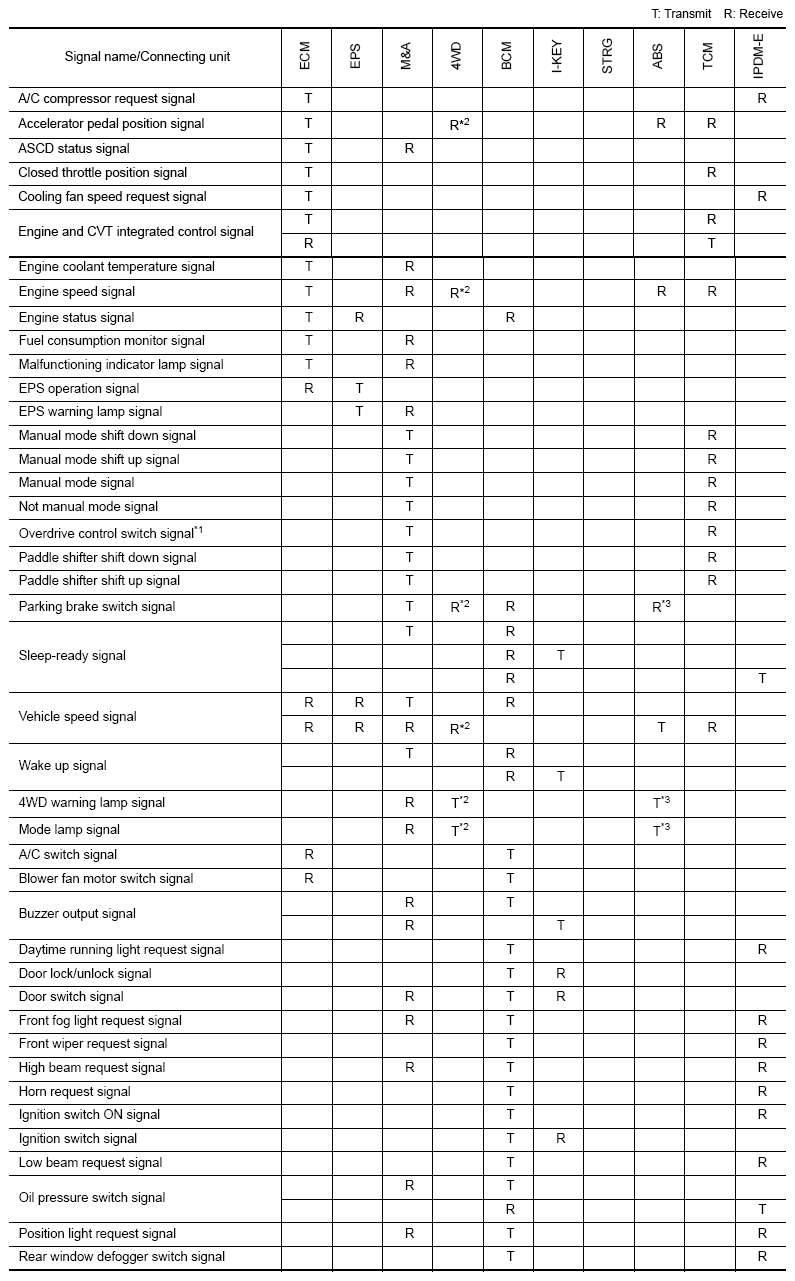

Fig 1: CAN Communication Signal Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

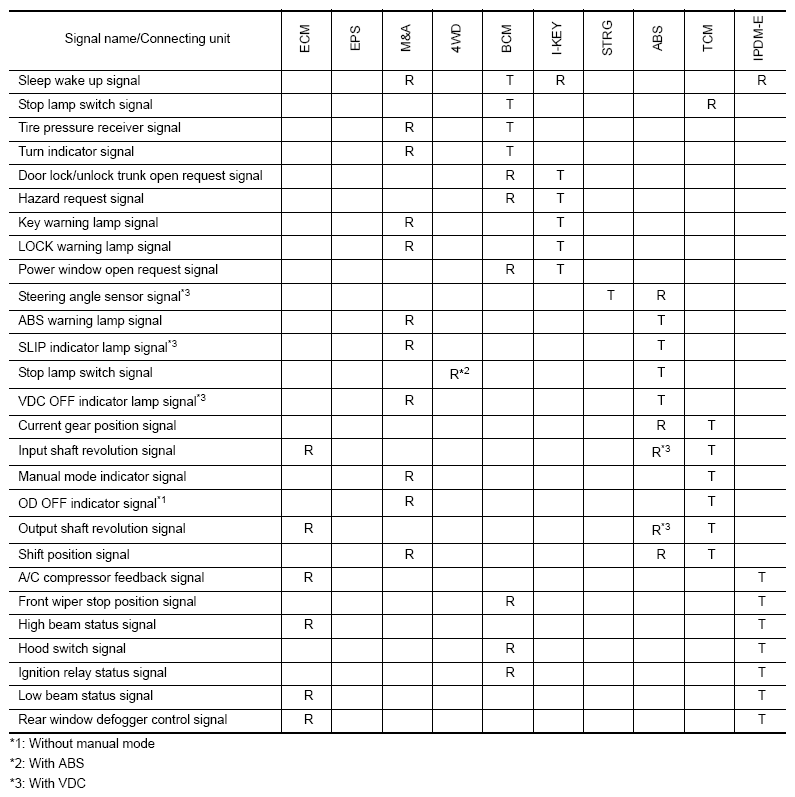

Fig 2: CAN Communication Signal Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
