370Z, ALTIMA, Armada, Cube, Frontier 4 CYL., Maxima, MURANO, Pathfinder 8 CYL., Versa 1.6L, Quest, Rogue, SENTRA & Titan

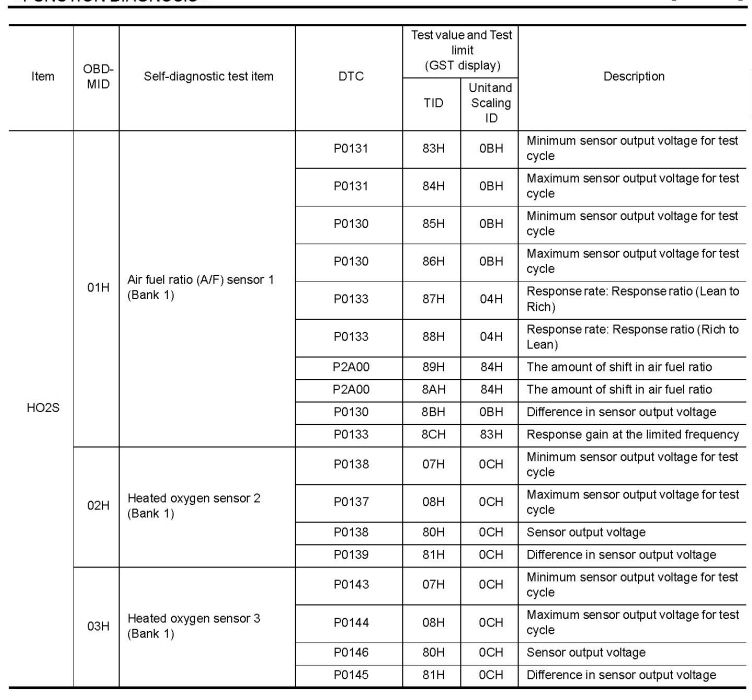

Fig 1: Mode $06 Data For 370Z, Altima, Armada, Cube, Frontier 4 Cyl., GT-R, Maxima, Murano, Pathfinder 8 Cyl., Versa 1.6L, Quest, Rogue, Sentra & Titan (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

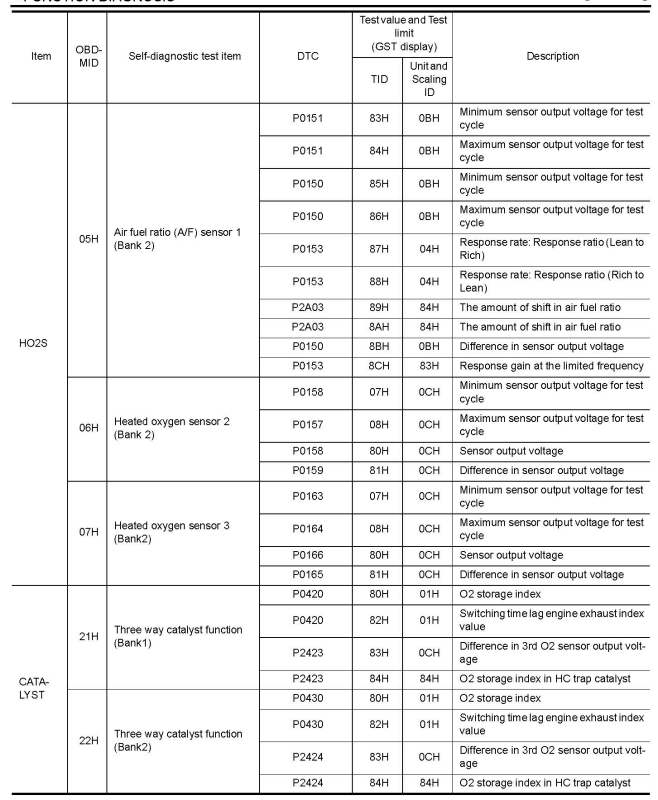

Fig 2: Mode $06 Data For 370Z, Altima, Armada, Cube, Frontier 4 Cyl., GT-R, Maxima, Murano, Pathfinder 8 Cyl., Versa 1.6L, Quest, Rogue, Sentra & Titan (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

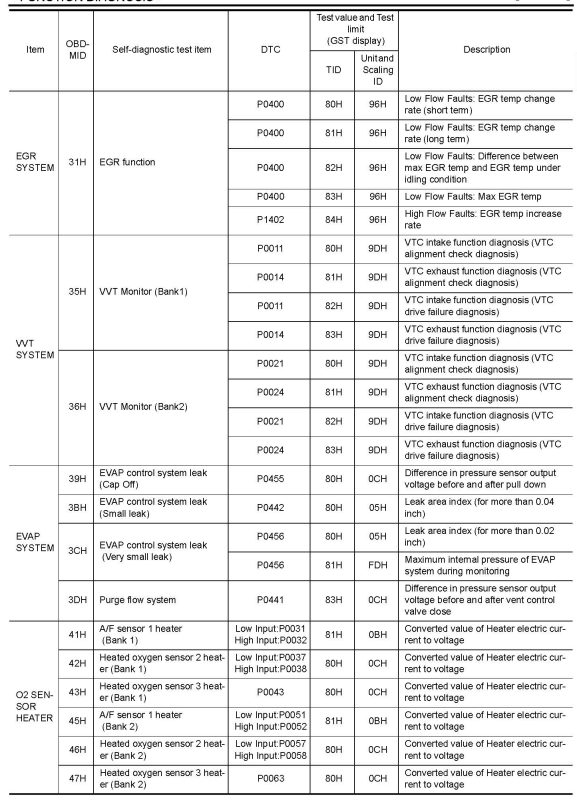

Fig 3: Mode $06 Data For 370Z, Altima, Armada, Cube, Frontier 4 Cyl., GT-R, Maxima, Murano, Pathfinder 8 Cyl., Versa 1.6L, Versa 1.6L, Quest, Rogue, Sentra & Titan (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

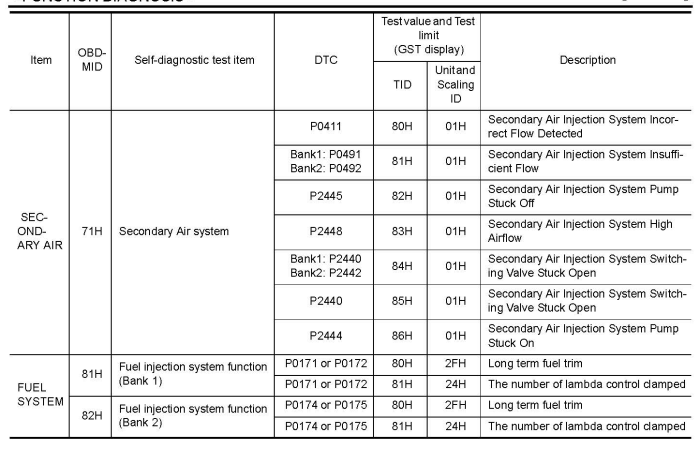

Fig 4: Mode $06 Data For 370Z, Altima, Armada, Cube, Frontier 4 Cyl., GT-R, Maxima, Murano, Pathfinder 8 Cyl., Versa 1.6L, Quest, Rogue, Sentra & Titan (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

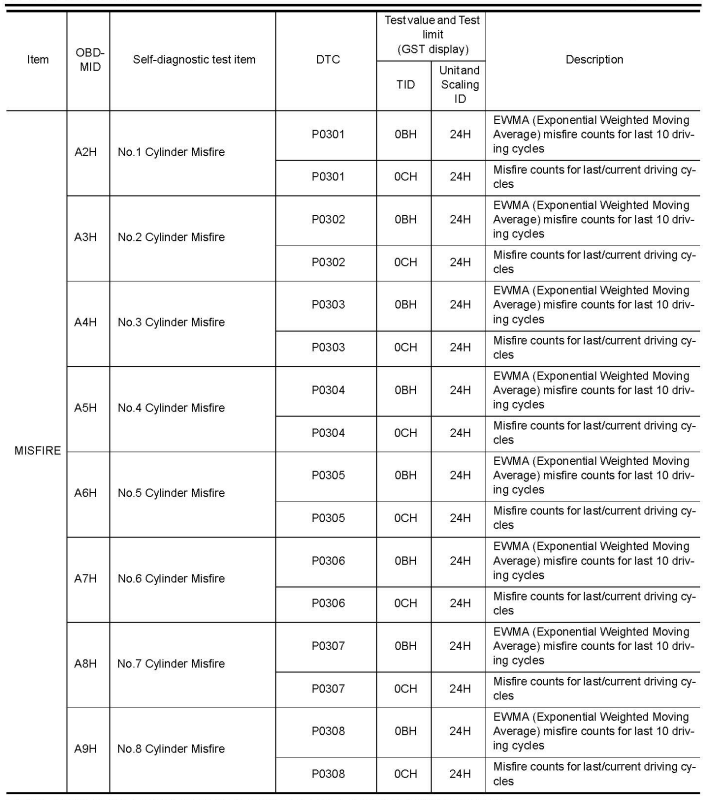

Fig 5: Mode $06 Data For 370Z, Altima, Armada, Cube, Frontier 4 Cyl., GT-R, Maxima, Murano, Pathfinder 8 Cyl., Versa 1.6L, Quest, Rogue, Sentra & Titan (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

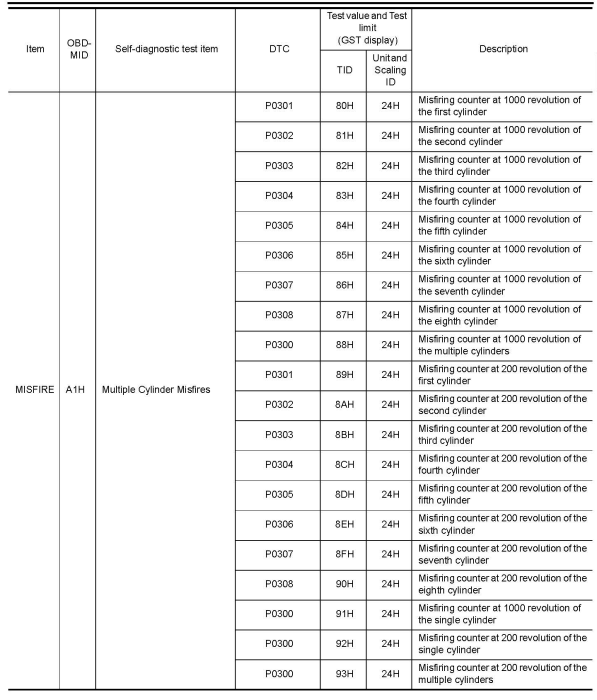

Fig 6: Mode $06 Data For 370Z, Altima, Armada, Cube, Frontier 4 Cyl., GT-R, Maxima, Murano, Pathfinder 8 Cyl., Versa 1.6L, Quest, Rogue, Sentra & Titan (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
