Main Bearing Selection Table (No.1, 3, and No.5 journals)

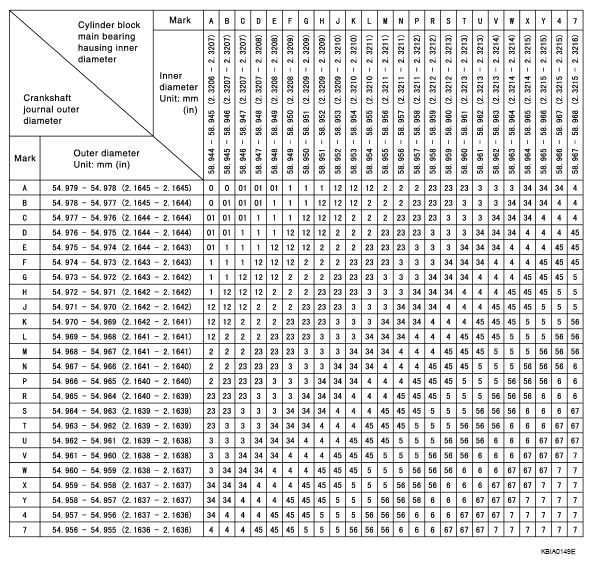

Fig 1: Main Bearing Selection Chart (1 Of 2)

G04885893

Courtesy of NISSAN MOTOR CO., U.S.A.
