Ignition Power Supply - Ignition Switch In On And/Or Start.

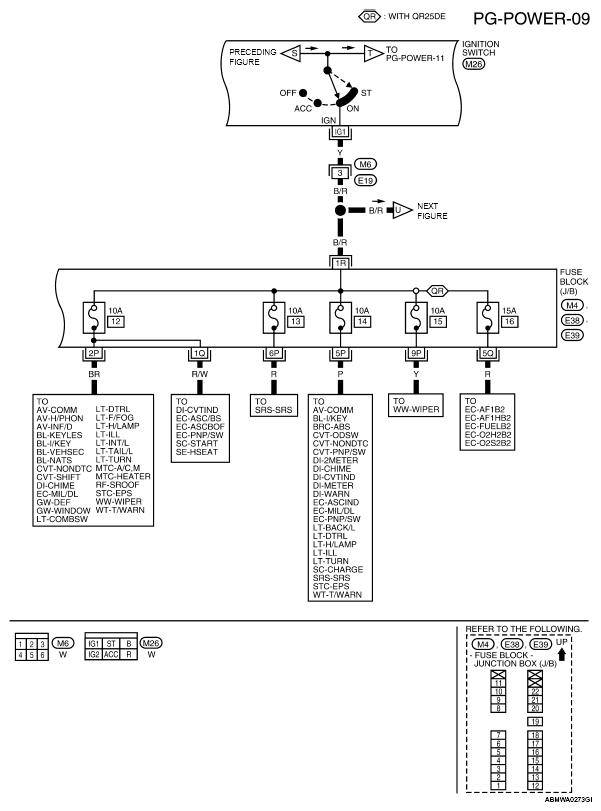

Fig 1: PG-POWER-09 - Wiring Diagram
G05926318Courtesy of NISSAN MOTOR CO., U.S.A.

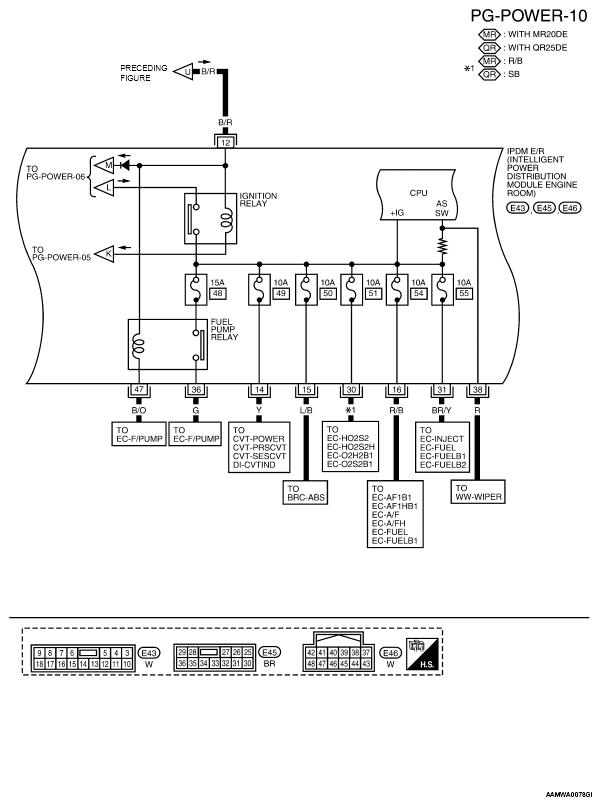

Fig 2: PG-POWER-10 - Wiring Diagram
G05926319Courtesy of NISSAN MOTOR CO., U.S.A.
