Wiring Diagram - TAIL/L -

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

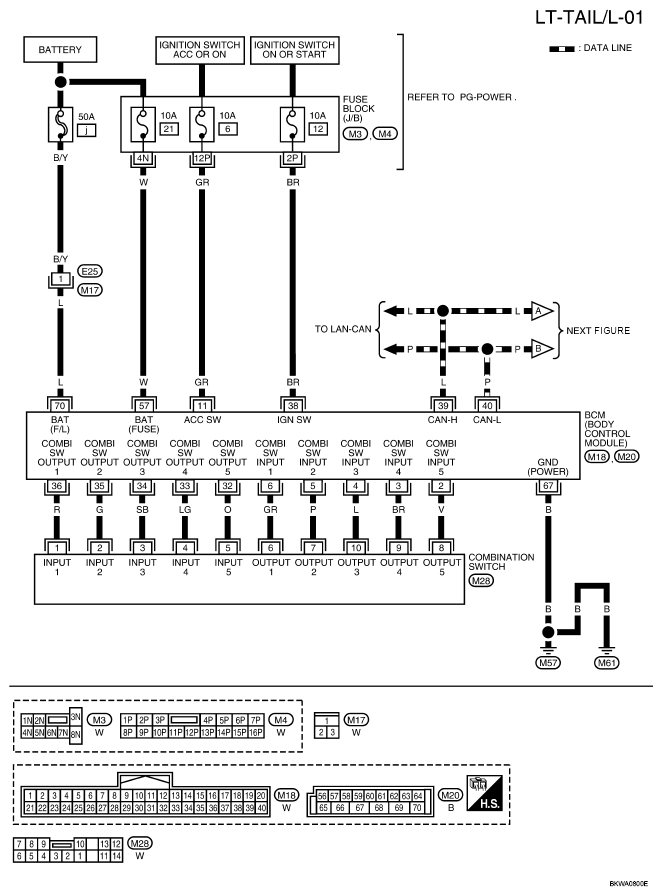

Fig 1: LT-TAIL/L-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: LT-TAIL/L-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: LT-TAIL/L-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
