Wiring Diagram - P/SCKT -

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

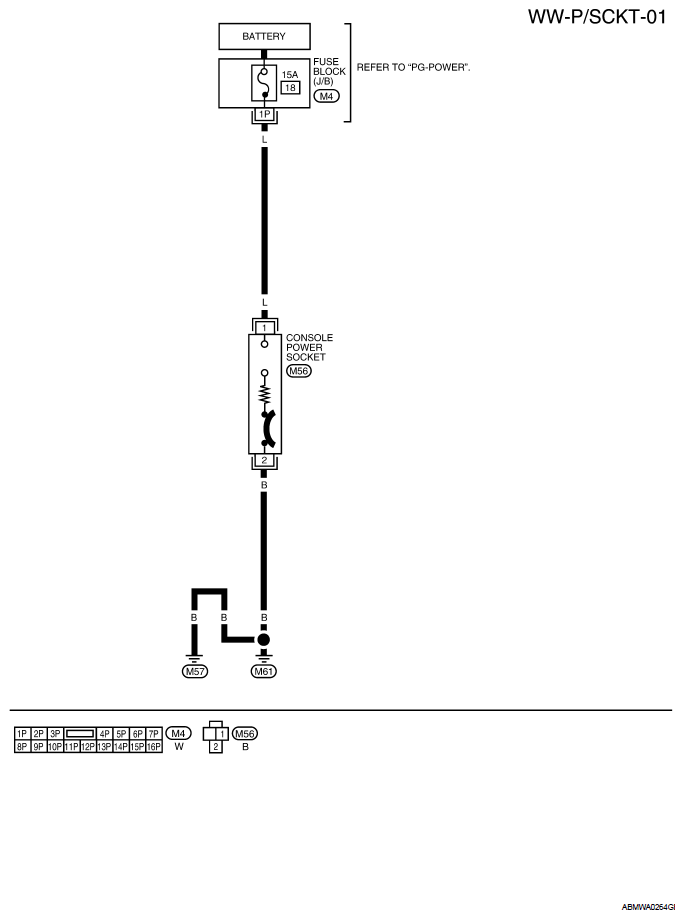

Fig 1: WW-P/SCKT-01 - Wiring Diagram
G05926267Courtesy of NISSAN MOTOR CO., U.S.A.

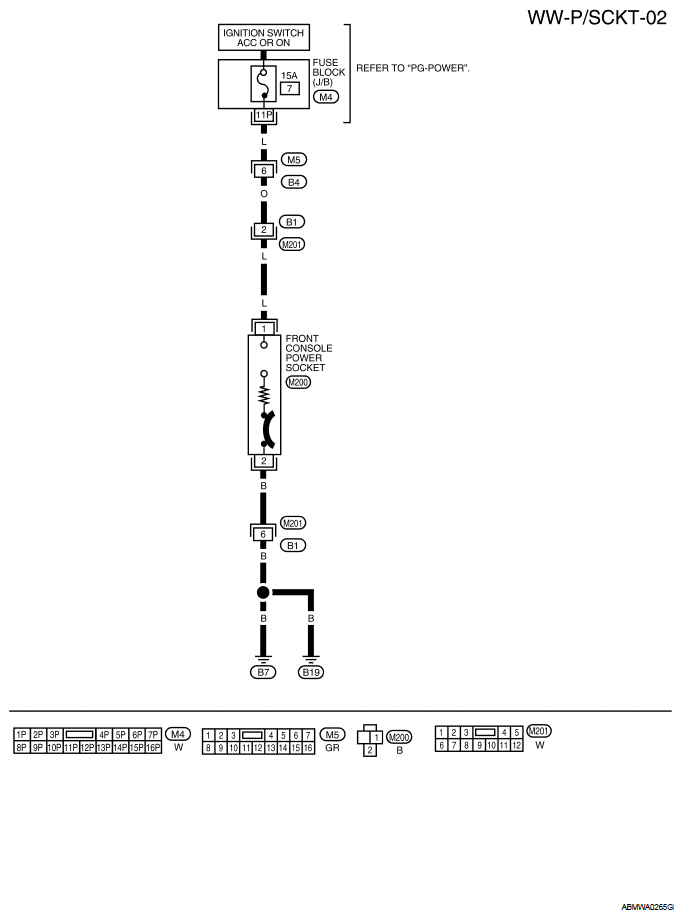

Fig 2: WW-P/SCKT-02 - Wiring Diagram
G05926268Courtesy of NISSAN MOTOR CO., U.S.A.
