Wiring Diagram - WARN -

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

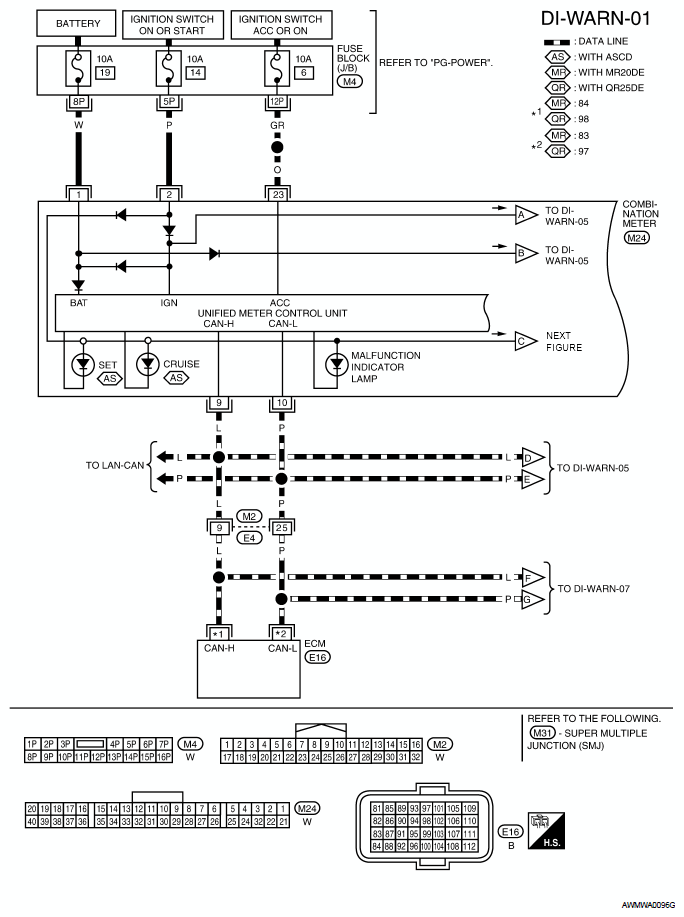

Fig 1: DI-WARN-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

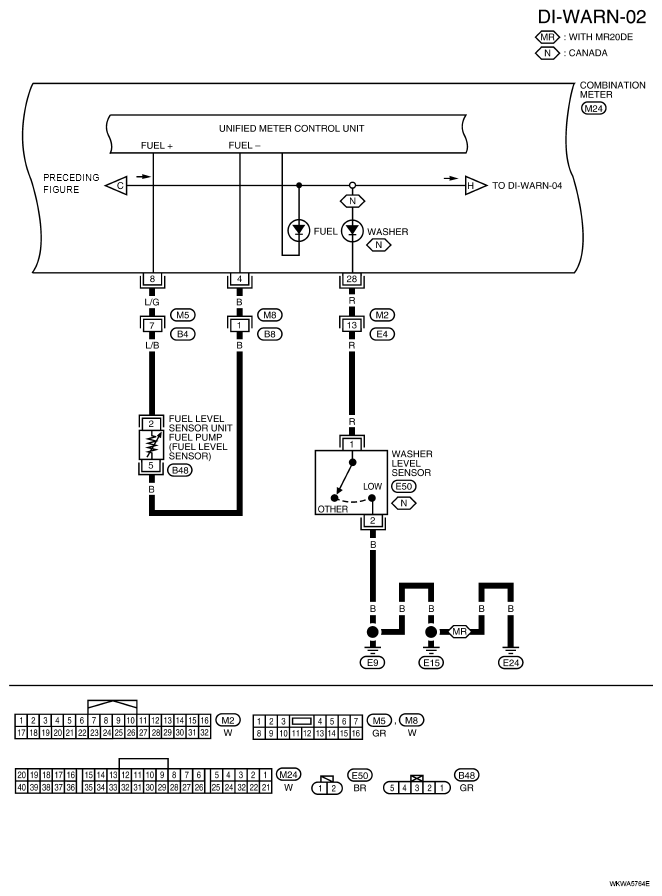

Fig 2: DI-WARN-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

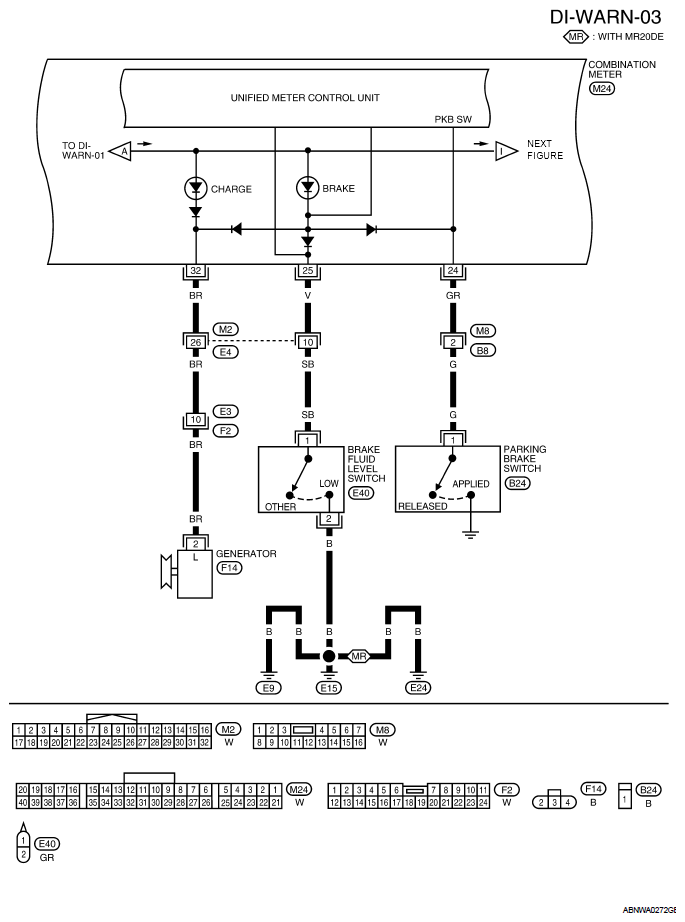

Fig 3: DI-WARN-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: DI-WARN-04 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

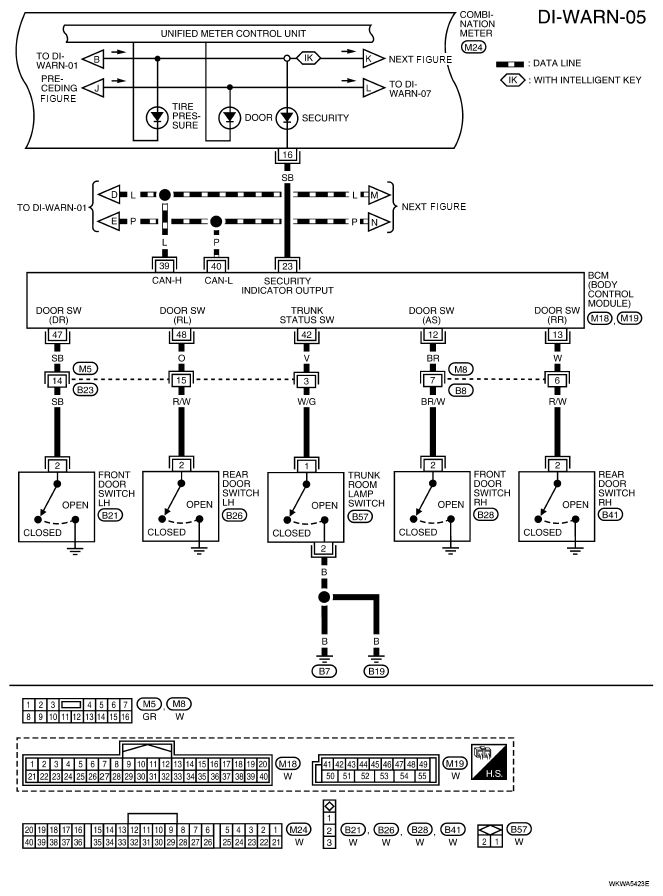

Fig 5: DI-WARN-05 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

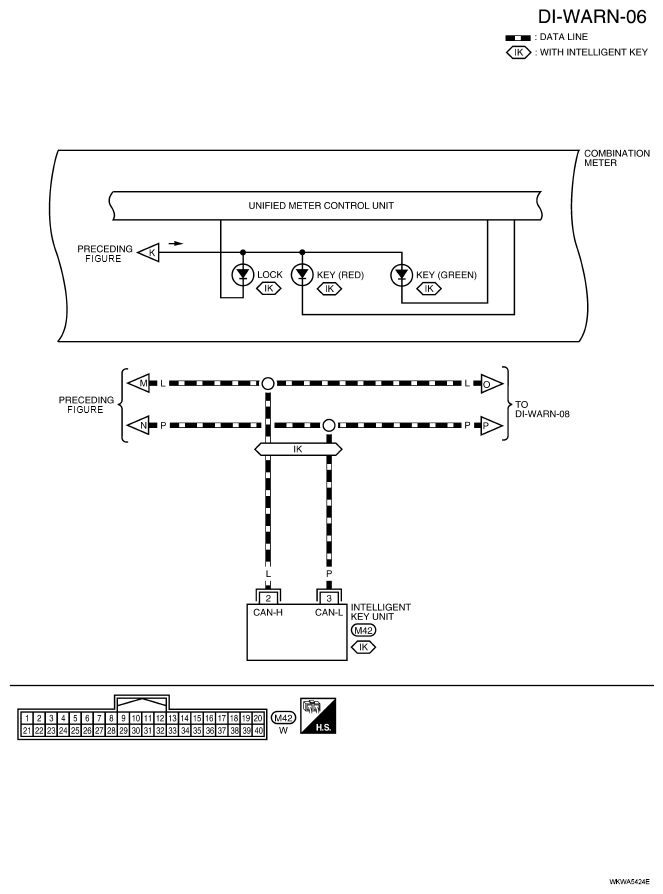

Fig 6: DI-WARN-06 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

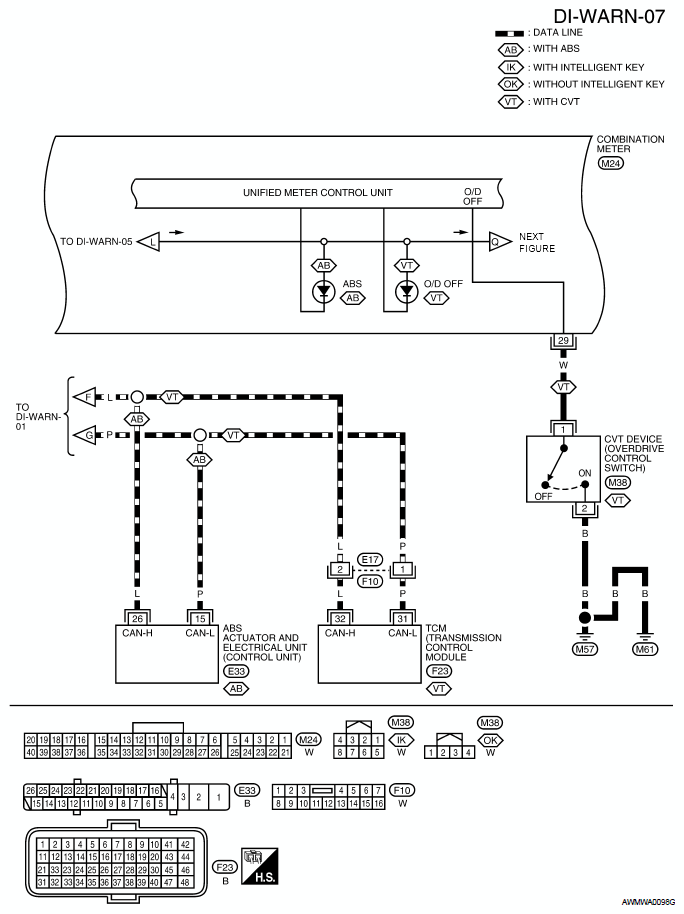

Fig 7: DI-WARN-07 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

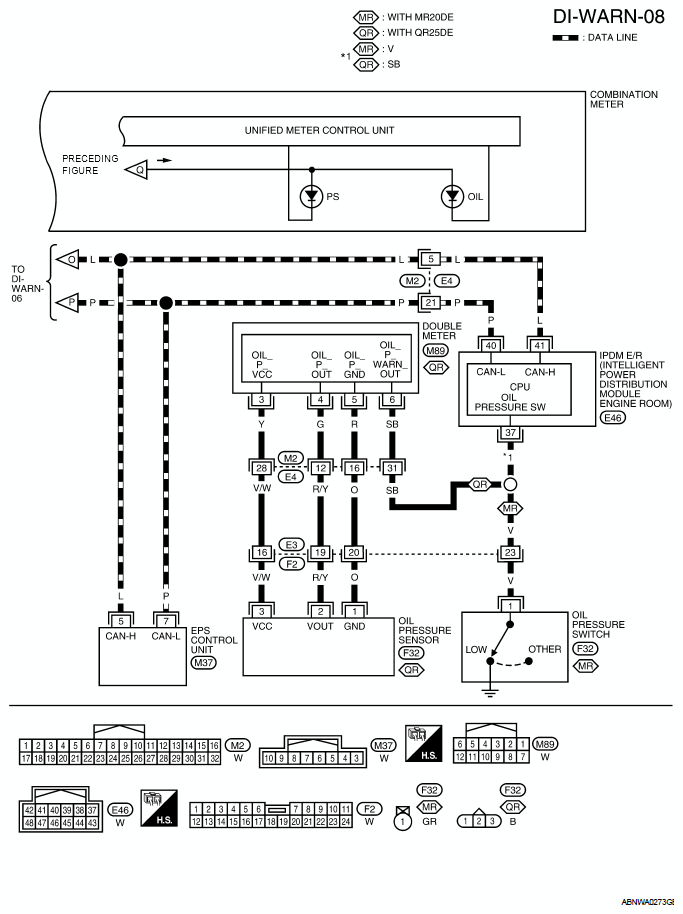

Fig 8: DI-WARN-08 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
