Wiring Diagram - CHIME -

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

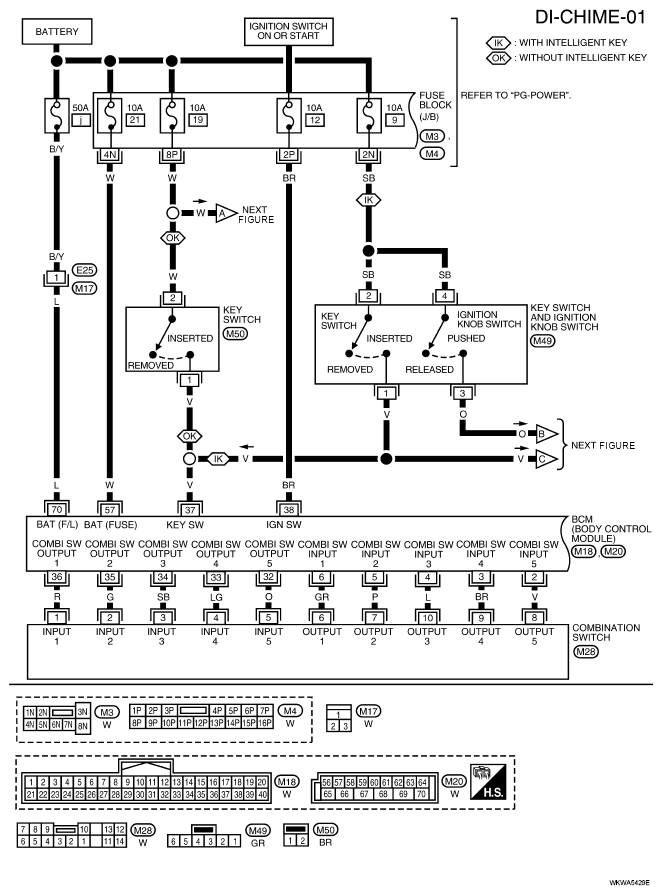

Fig 1: DI-CHIME-01 - Wiring Diagram
G04928455Courtesy of NISSAN MOTOR CO., U.S.A.

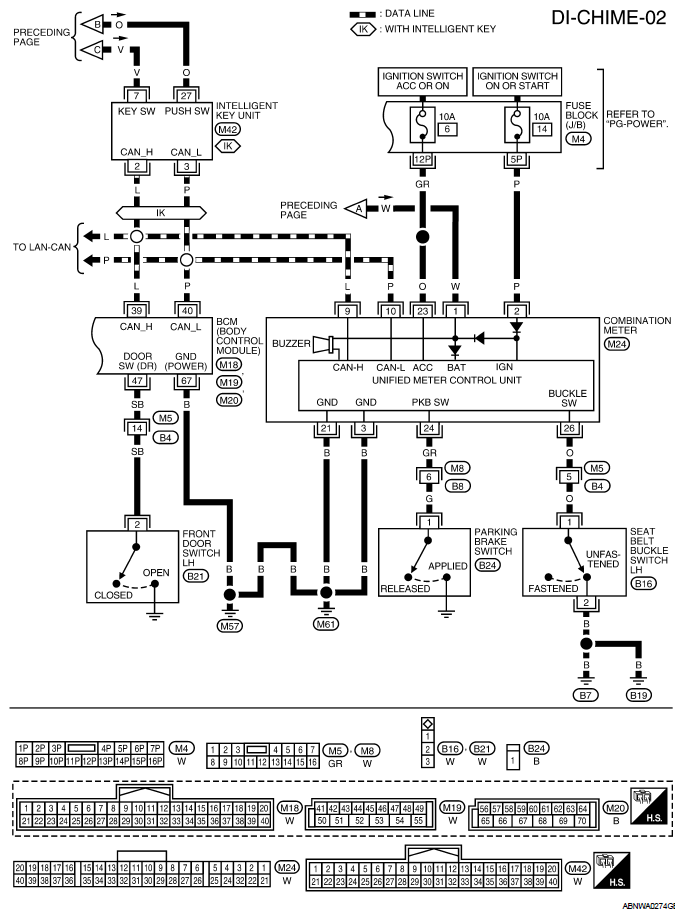

Fig 2: DI-CHIME-02 - Wiring Diagram
G05924948Courtesy of NISSAN MOTOR CO., U.S.A.
