Wiring Diagram - METER -

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

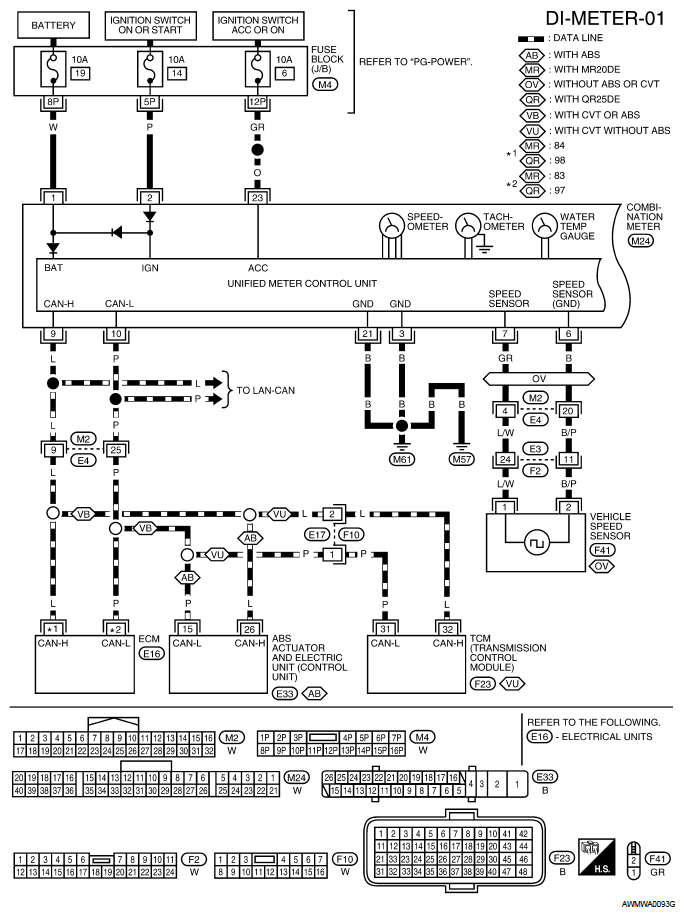

Fig 1: DI-METER-01 - Wiring Diagram
G05924894Courtesy of NISSAN MOTOR CO., U.S.A.

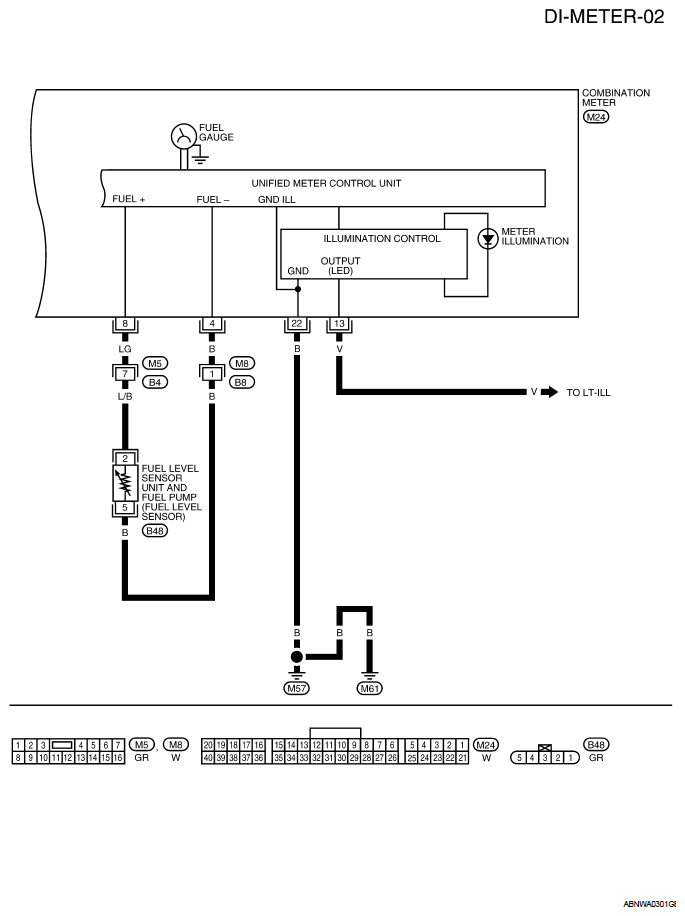

Fig 2: DI-METER-02 - Wiring Diagram
G05924895Courtesy of NISSAN MOTOR CO., U.S.A.
