Wiring Diagram - ILL -

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

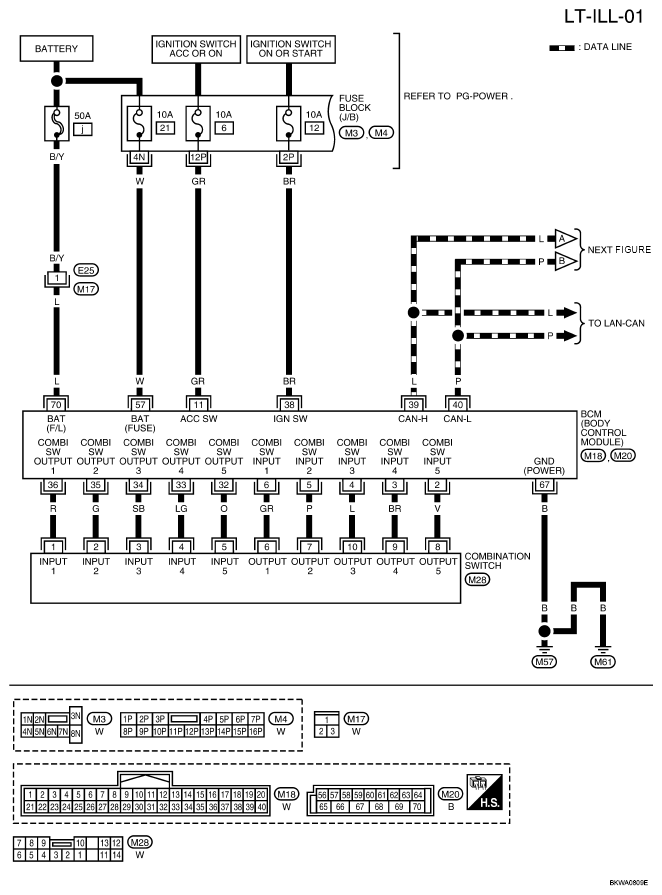

Fig 1: LT-ILL-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: LT-ILL-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

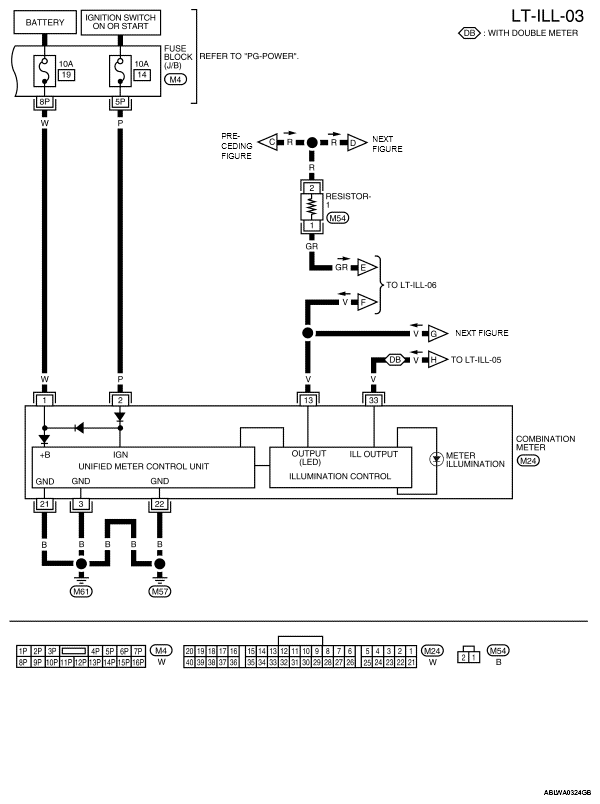

Fig 3: LT-ILL-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: LT-ILL-04 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: LT-ILL-05 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: LT-ILL-06 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
