DEFROSTER NOZZLE AND SIDE DEFROSTER NOZZLE : Removal and Installation

REMOVAL

  1. Remove the instrument panel assembly. Refer to "EXPLODED VIEW ".
  2. Remove the mounting screws (A), and then remove the defroster nozzle (1) together with the side defroster nozzle (right) (2) and side defroster nozzle (left) (3).

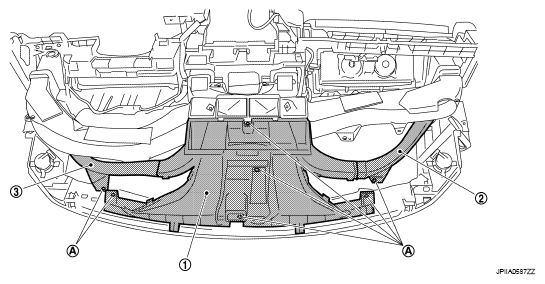

    Fig 1: Identifying Mounting Screws And Defroster Nozzle
    G05890292Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the side defroster nozzle (right) and side defroster nozzle (left) from the defroster nozzle.

INSTALLATION

Install in the reverse order of removal.
