DEFROSTER NOZZLE AND SIDE DEFROSTER NOZZLE : Exploded View

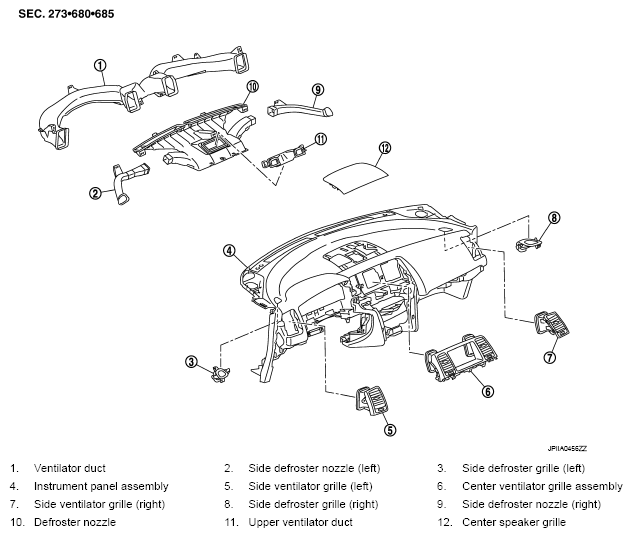

Fig 1: Exploded View Of Defroster Nozzle And Side Defroster Nozzle

G05890291

Courtesy of NISSAN MOTOR CO., U.S.A.
