Wiring Diagram - AWD SYSTEM -

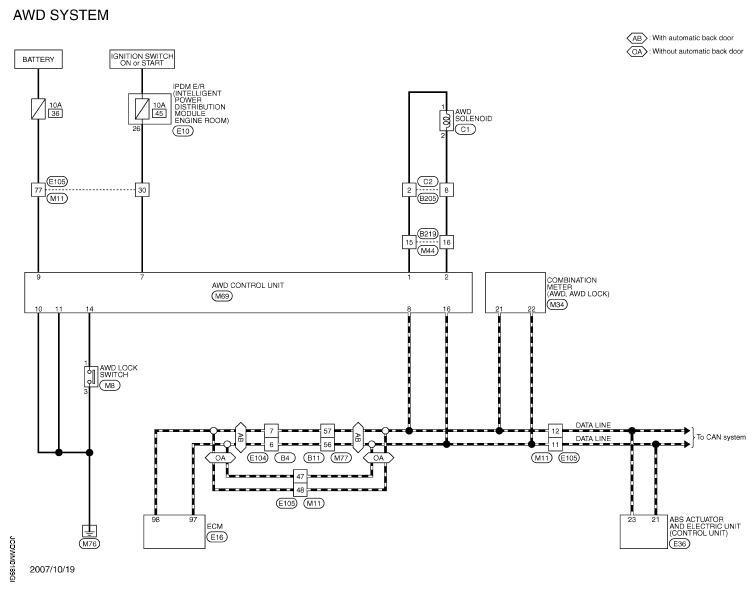

Fig 1: AWD System - Wiring Diagram
G05892732Courtesy of NISSAN MOTOR CO., U.S.A.

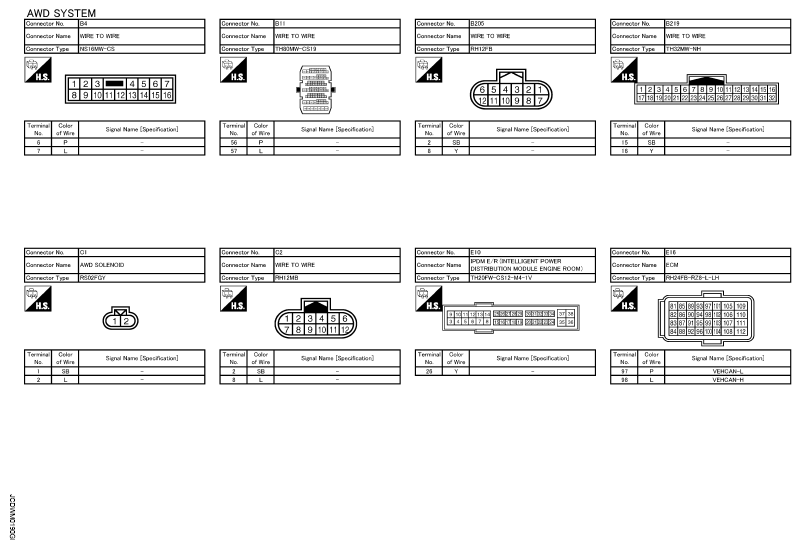

Fig 2: AWD Connector Terminals (1 Of 3)
G05892733Courtesy of NISSAN MOTOR CO., U.S.A.

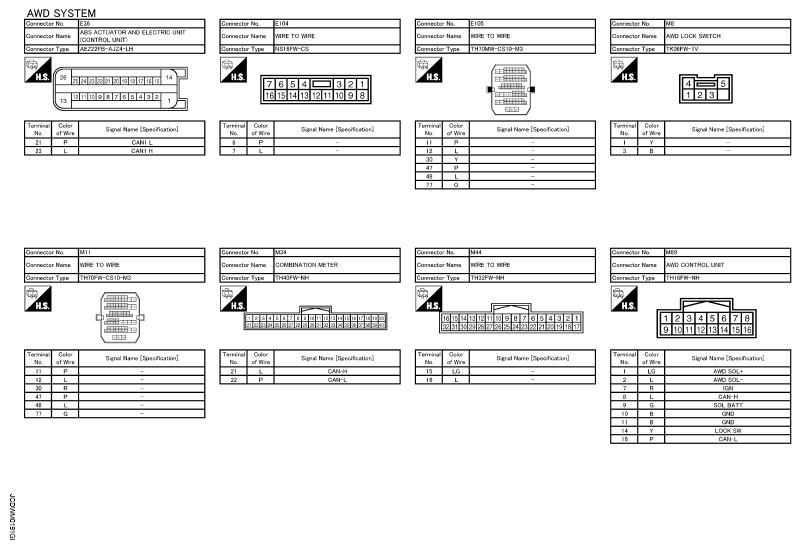

Fig 3: AWD Connector Terminals (2 Of 3)
G05892734Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: AWD Connector Terminals (3 Of 3)
G05892735Courtesy of NISSAN MOTOR CO., U.S.A.
