RUNOUT Measuring Point

Propeller shaft runout measuring point (Point "Δ").

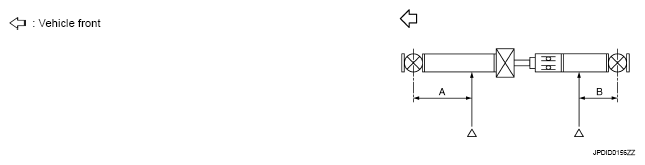

Fig 1: Identifying Propeller Shaft Runout Measuring Point

Courtesy of NISSAN MOTOR CO., U.S.A.

Dimension

A: 506.5 mm (19.94 in)

B: 497.5 mm (19.59 in)
