Side Oil Seal
>>
Exploded View
Exploded View

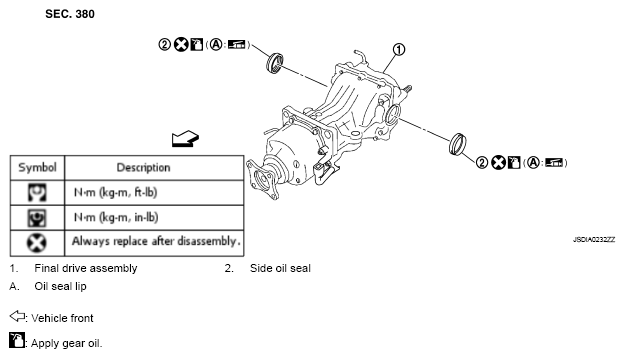

Fig 1: Exploded View Of Side Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
"
COMPONENTS
" for symbols not described above.
