Rear Final Drive: R145
>>
On-Vehicle Repair
>>
Front Oil Seal
>>
Exploded View
Exploded View

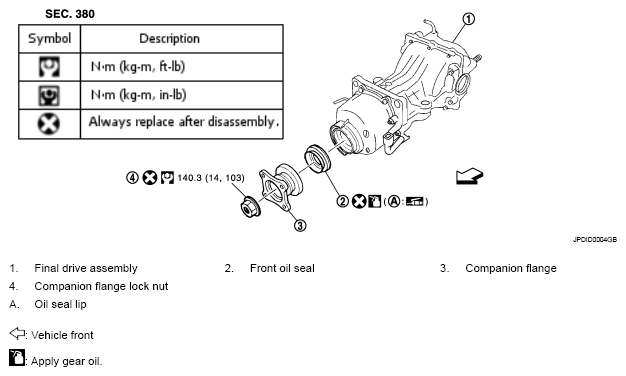

Fig 1: Exploded View Of Front Oil Seal With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described above.
