Rear Differential Gear Oil: Refilling

Remove filler plug (1). Fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.
Oil grade and viscosity : Refer to "FLUIDS AND LUBRICANTS ".

Oil capacity : Refer to "GENERAL SPECIFICATION ".
After refilling oil, check oil level. Set a new gasket to filler plug, then install it to final drive assembly. Refer to "EXPLODED VIEW ".

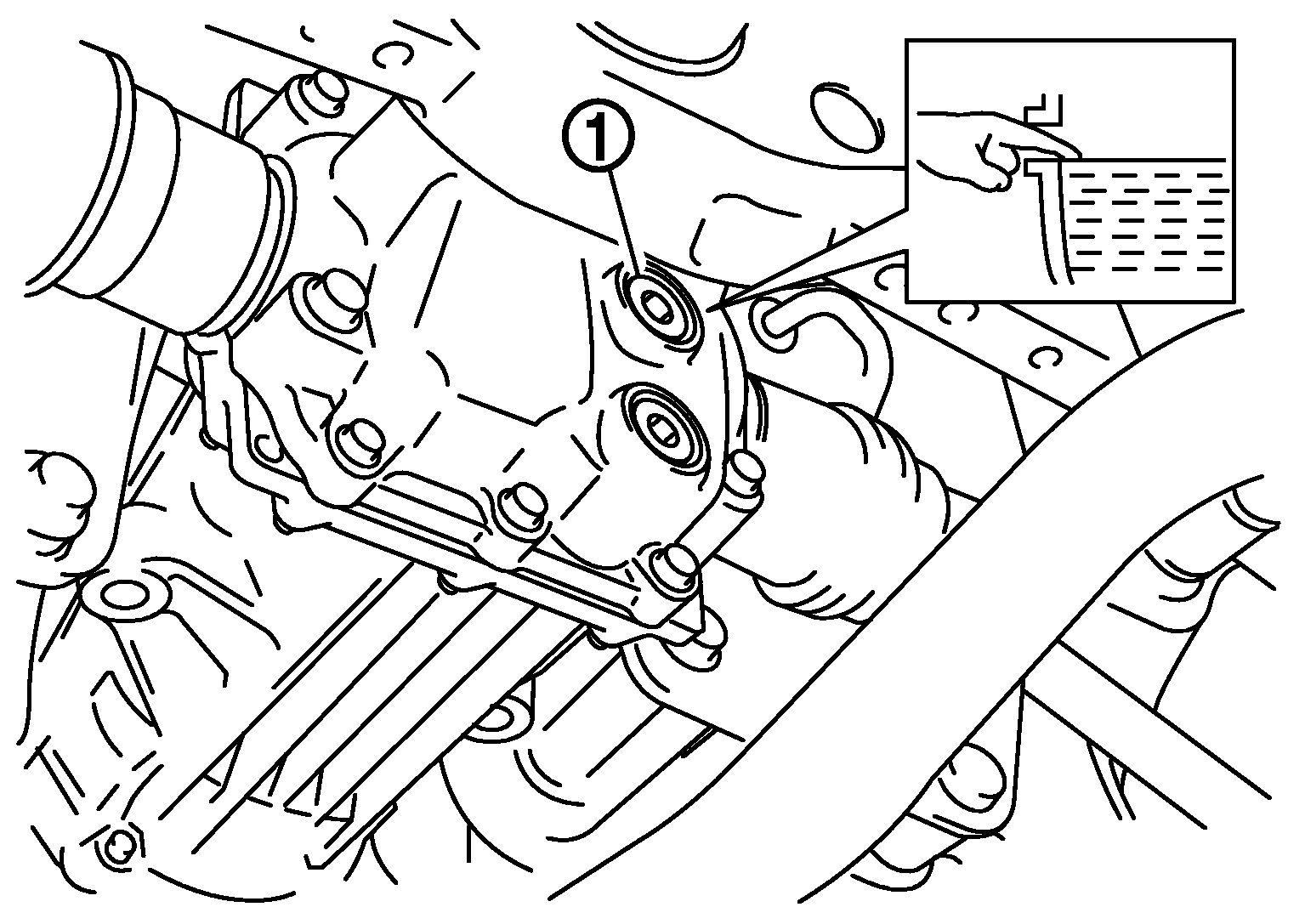

Fig 1: Identifying Filler Plug

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Never reuse gasket.
