Rear Differential Gear Oil: Draining

  1. Stop engine.
  2. Remove drain plug (1) and drain gear oil.
  3. Set a new gasket on drain plug and install it to final drive assembly and tighten to the specified torque. Refer to "EXPLODED VIEW ".
CAUTION: Never reuse gasket.

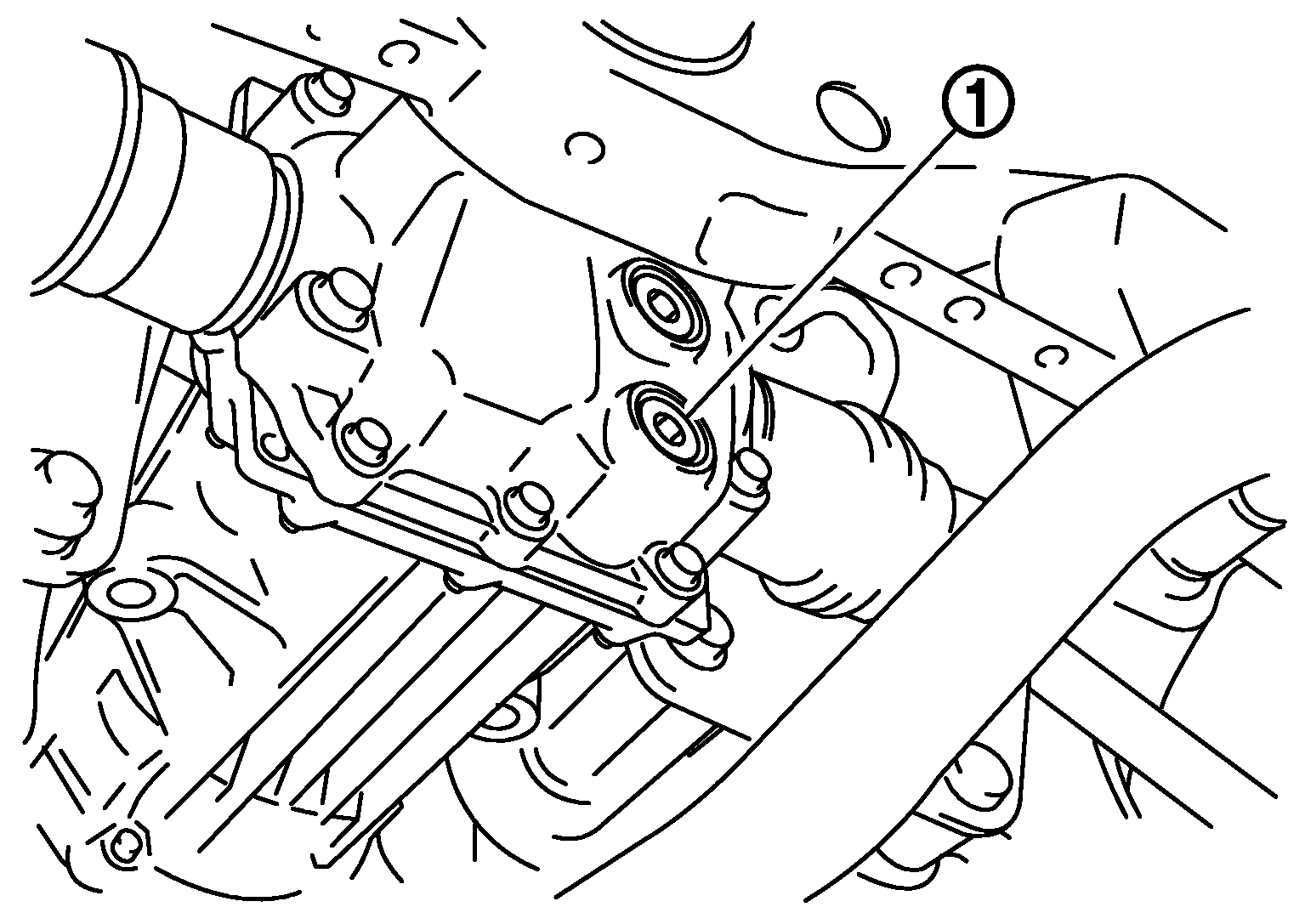

Fig 1: Identifying Drain Plug
G05894131Courtesy of NISSAN MOTOR CO., U.S.A.
