Exploded View
Exploded View

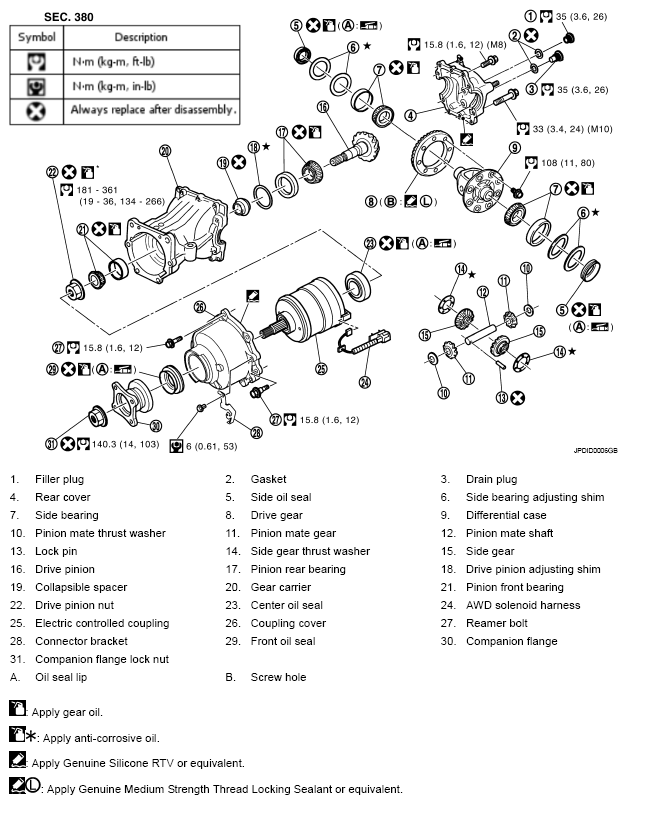

Fig 1: Exploded View Drive Pinion With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described above.
