Cowl Top
>>
Exploded View
Exploded View

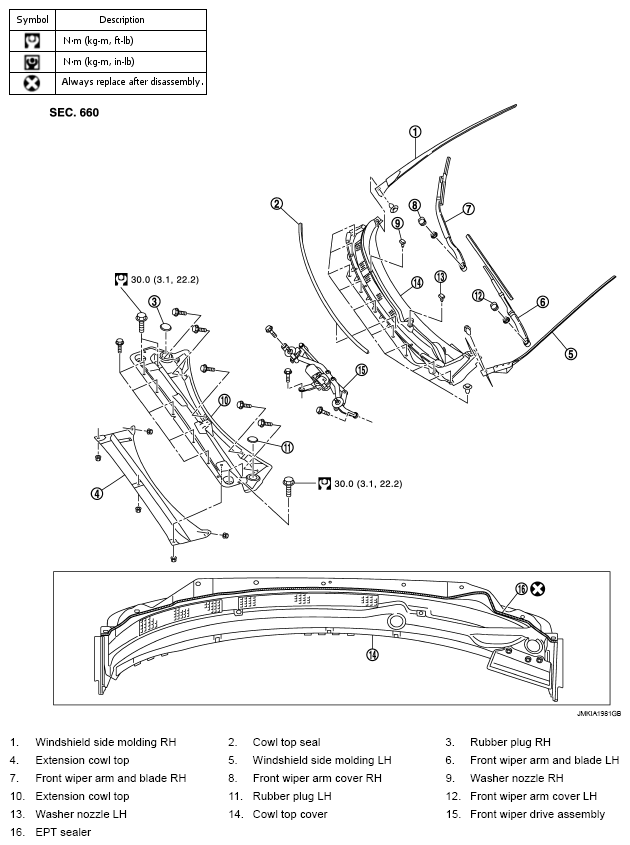

Fig 1: Exploded View Of Cowl Top With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
