Wiring Diagram - METER -

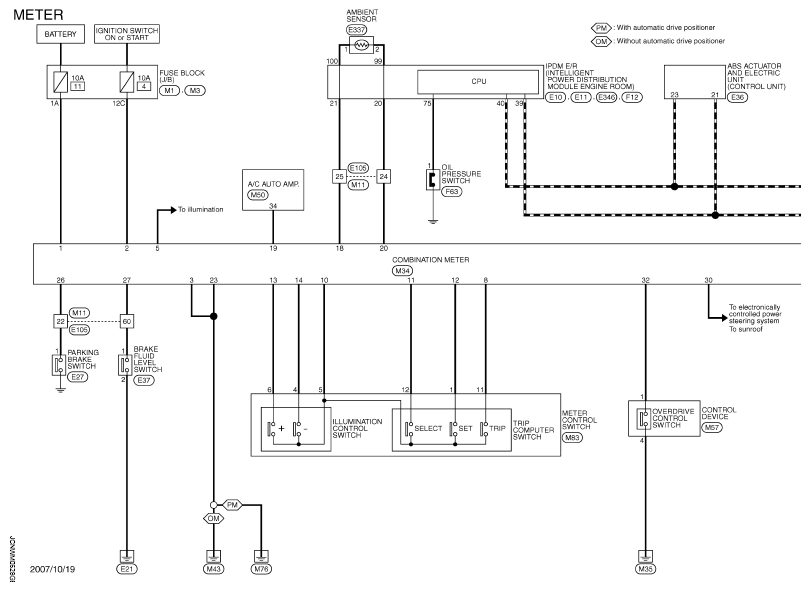

Fig 1: Meter Wiring Diagram (1 Of 3)

G05891062

Courtesy of NISSAN MOTOR CO., U.S.A.

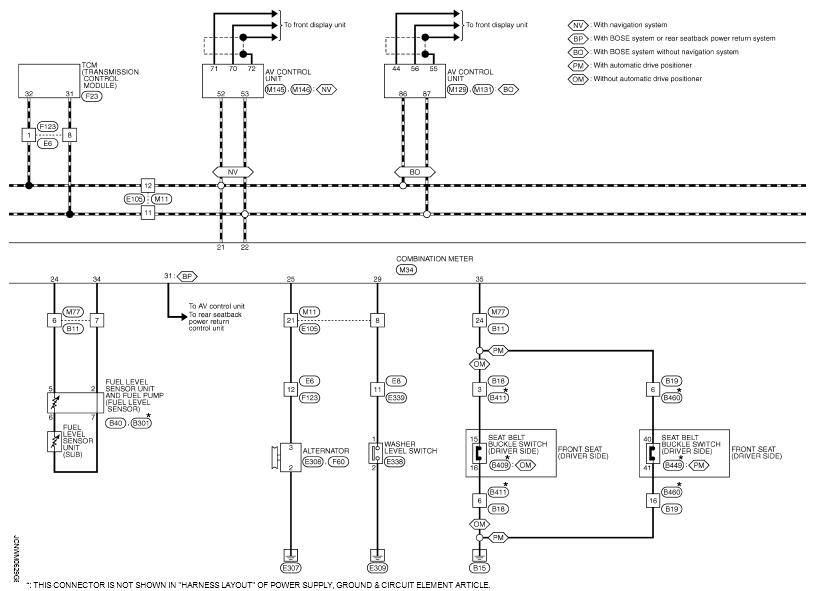

Fig 2: Meter Wiring Diagram (2 Of 3)

G05891063

Courtesy of NISSAN MOTOR CO., U.S.A.

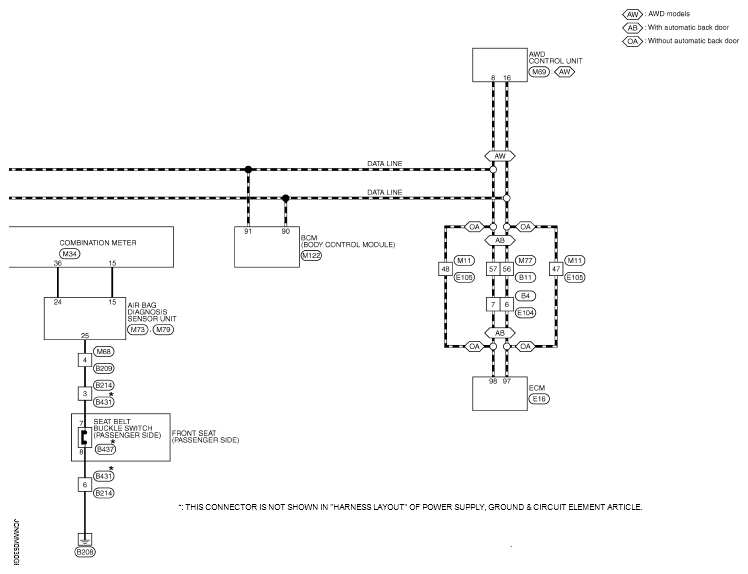

Fig 3: Meter Wiring Diagram (3 Of 3)

G05891064

Courtesy of NISSAN MOTOR CO., U.S.A.

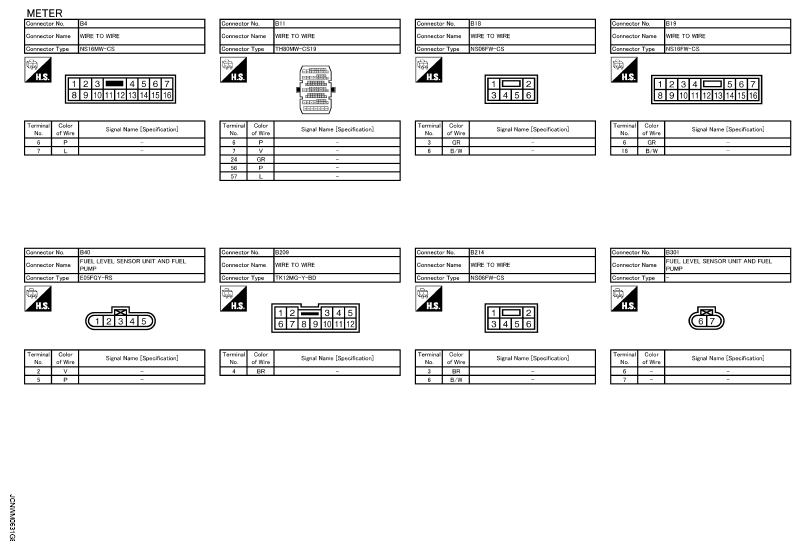

Fig 4: Meter Connectors Terminals Chart (1 Of 7)

G05891065

Courtesy of NISSAN MOTOR CO., U.S.A.

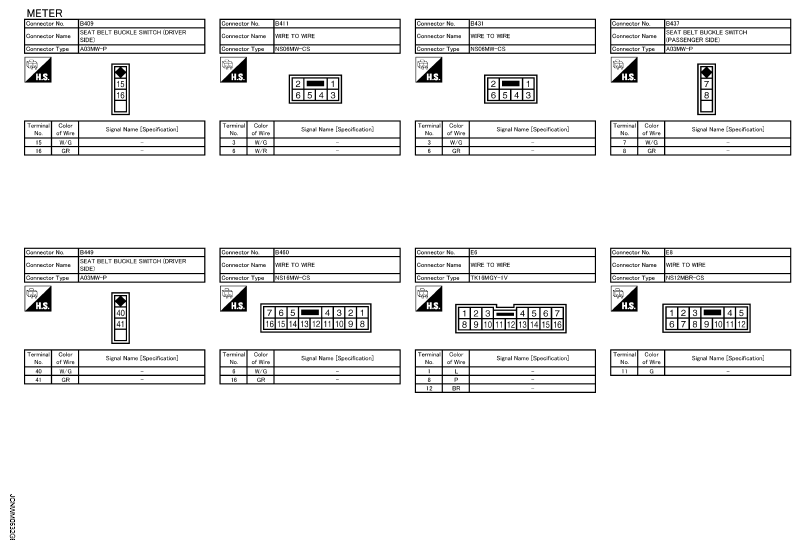

Fig 5: Meter Connectors Terminals Chart (2 Of 7)

G05891066

Courtesy of NISSAN MOTOR CO., U.S.A.

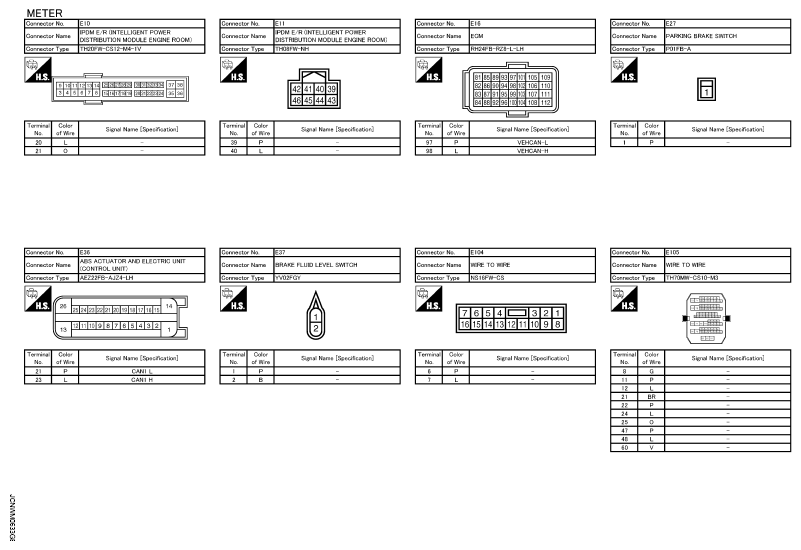

Fig 6: Meter Connectors Terminals Chart (3 Of 7)

G05891067

Courtesy of NISSAN MOTOR CO., U.S.A.

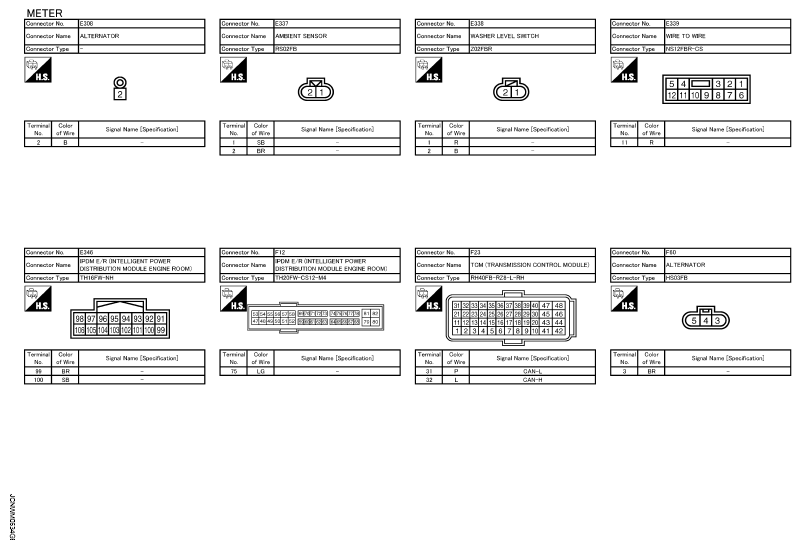

Fig 7: Meter Connectors Terminals Chart (4 Of 7)

G05891068

Courtesy of NISSAN MOTOR CO., U.S.A.

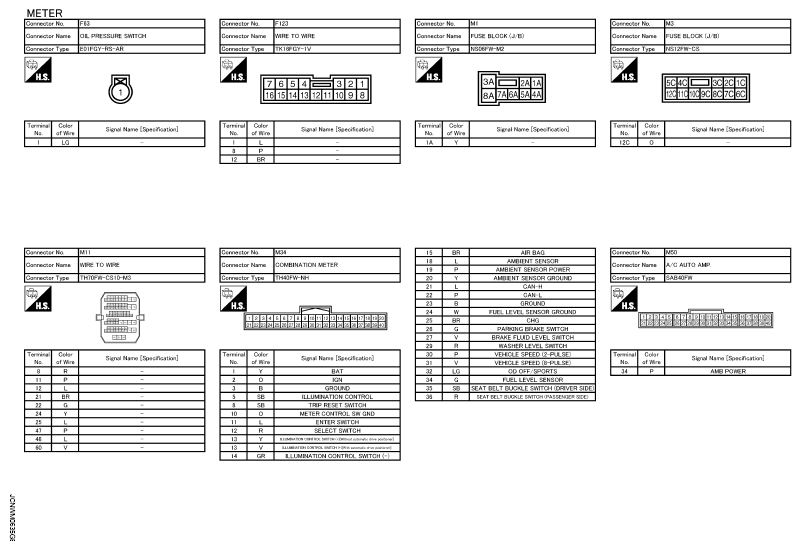

Fig 8: Meter Connectors Terminals Chart (5 Of 7)

G05891069

Courtesy of NISSAN MOTOR CO., U.S.A.

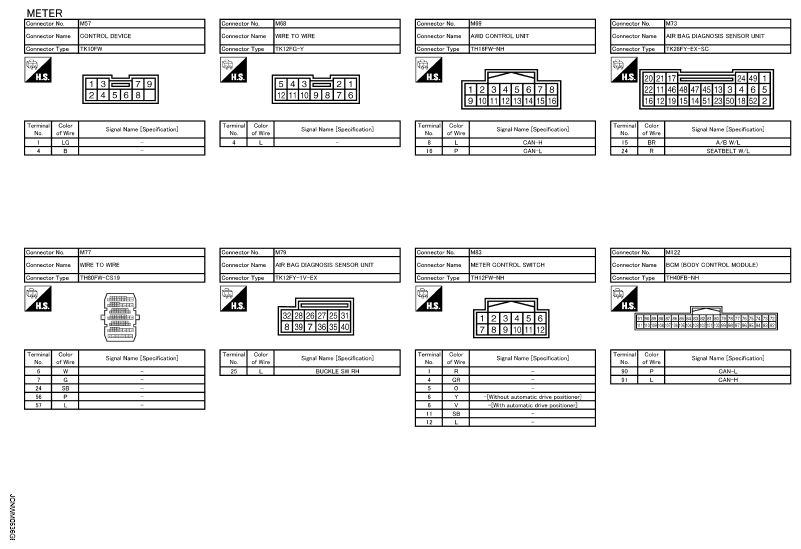

Fig 9: Meter Connectors Terminals Chart (6 Of 7)

G05891070

Courtesy of NISSAN MOTOR CO., U.S.A.

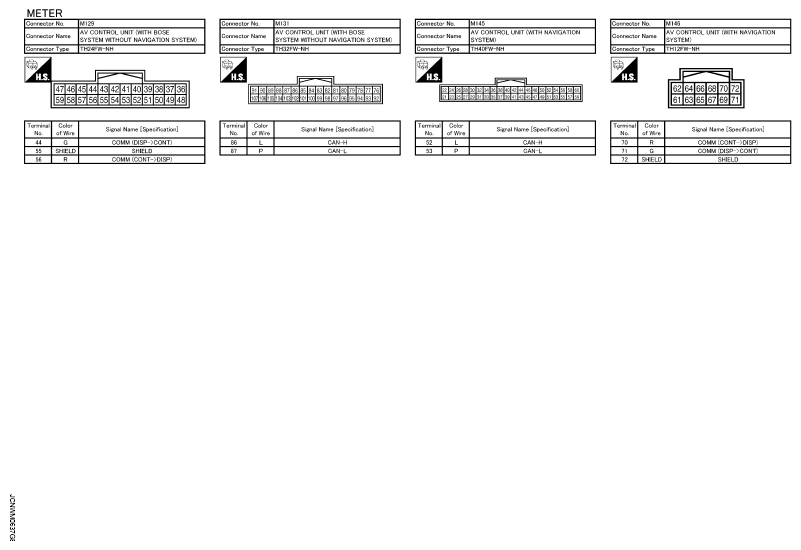

Fig 10: Meter Connectors Terminals Chart (7 Of 7)

G05891071

Courtesy of NISSAN MOTOR CO., U.S.A.
