Wiring Diagram - BCM -

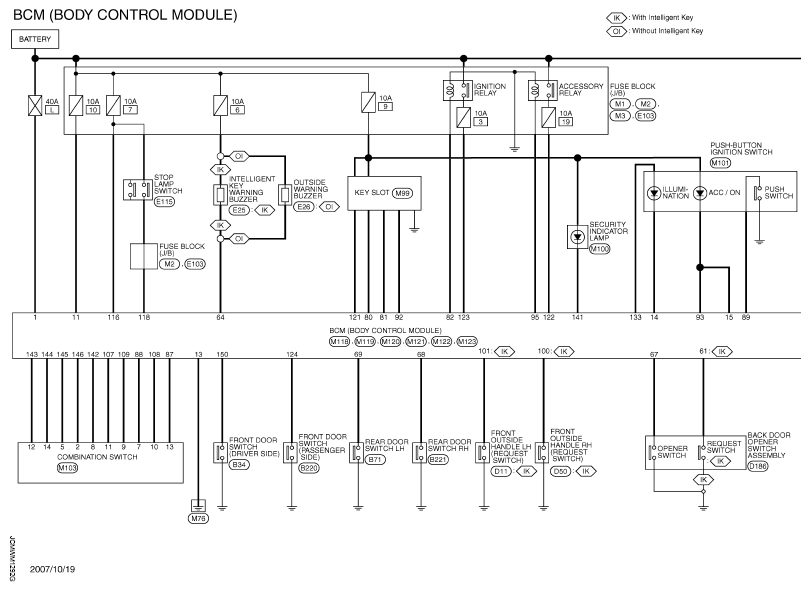

Fig 1: BCM Wiring Diagram (1 Of 5)

G05891152

Courtesy of NISSAN MOTOR CO., U.S.A.

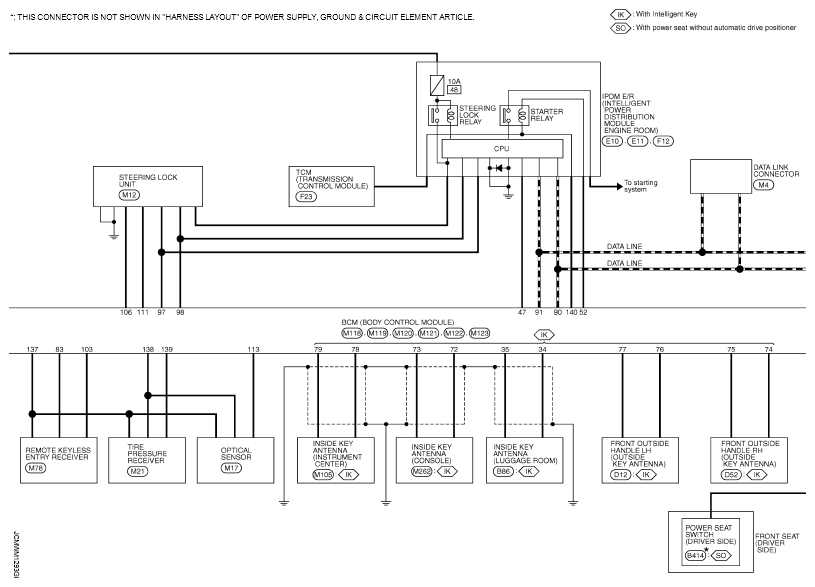

Fig 2: BCM Wiring Diagram (2 Of 5)

G05891153

Courtesy of NISSAN MOTOR CO., U.S.A.

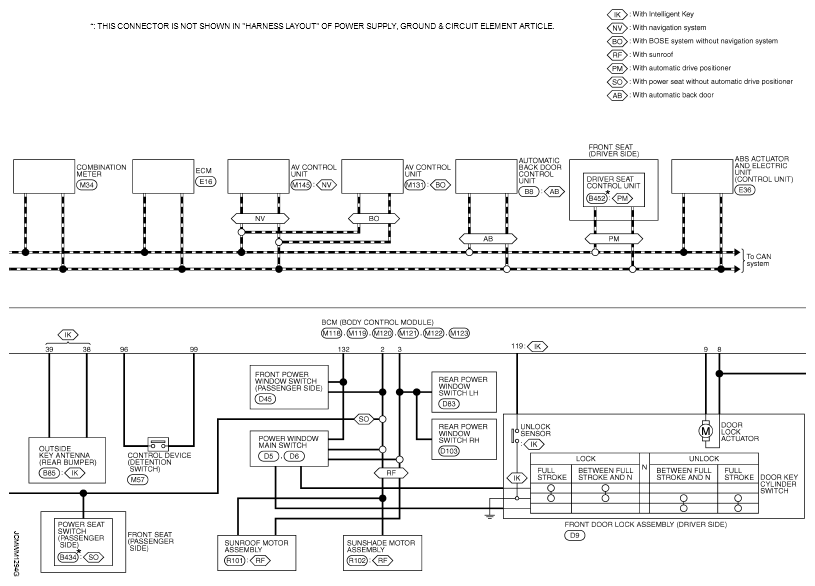

Fig 3: BCM Wiring Diagram (3 Of 5)

G05891154

Courtesy of NISSAN MOTOR CO., U.S.A.

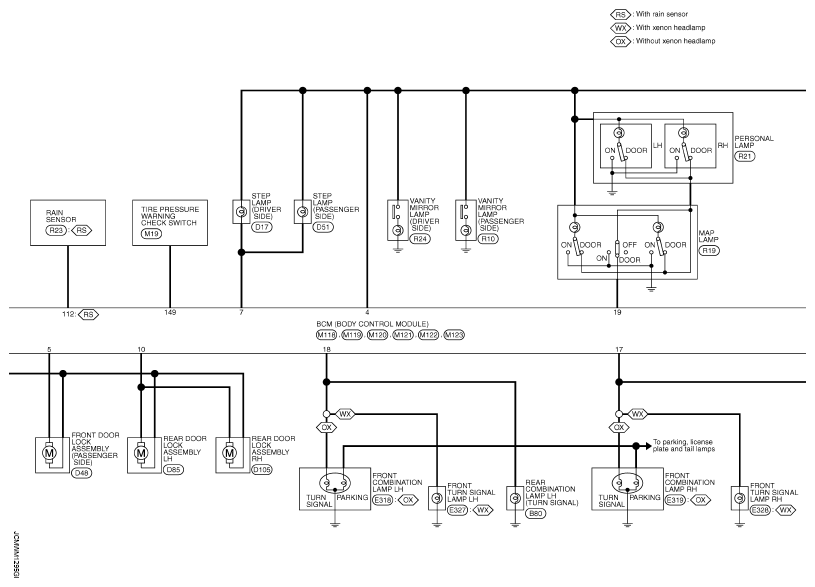

Fig 4: BCM Wiring Diagram (4 Of 5)

G05891155

Courtesy of NISSAN MOTOR CO., U.S.A.

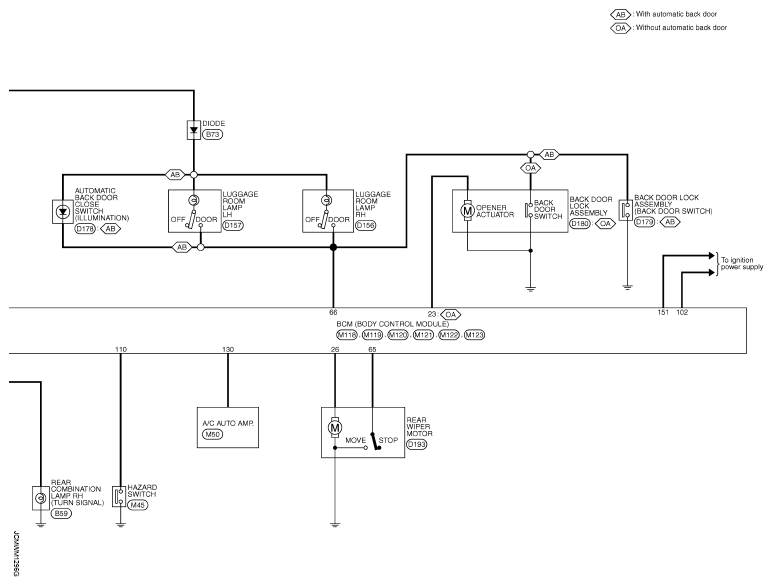

Fig 5: BCM Wiring Diagram (5 Of 5)

G05891156

Courtesy of NISSAN MOTOR CO., U.S.A.

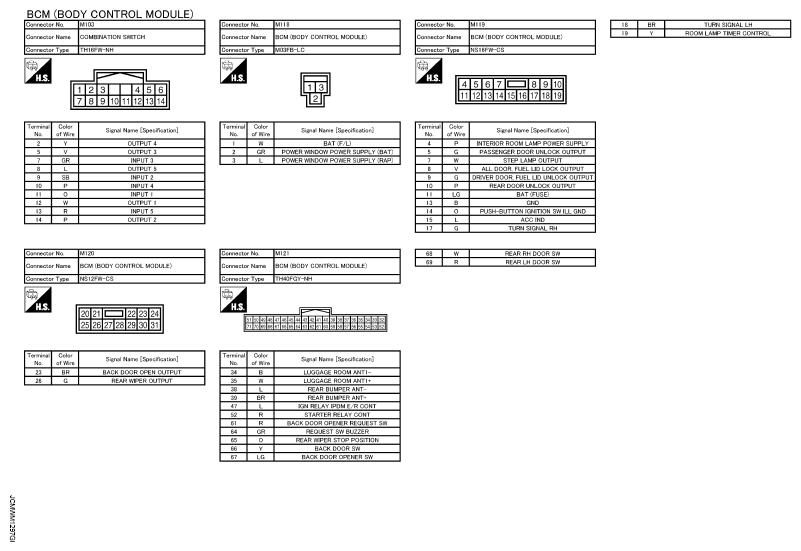

Fig 6: BCM Connectors Terminals Chart (1 Of 2)

G05891157

Courtesy of NISSAN MOTOR CO., U.S.A.

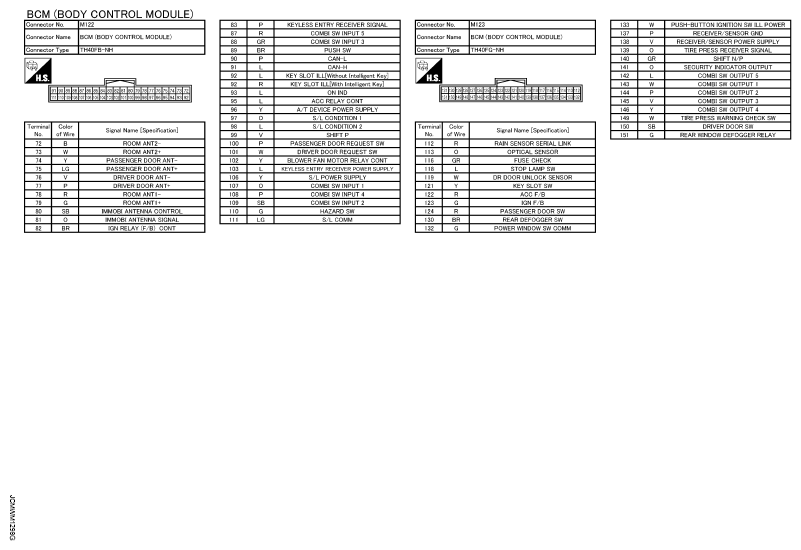

Fig 7: BCM Connectors Terminals Chart (2 Of 2)

G05891158

Courtesy of NISSAN MOTOR CO., U.S.A.
